Product Details
Place of Origin: CHINA
Brand Name: GBS
Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001
Model Number: GBS-LFP40Ah
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: special carton for dangerous goods
Delivery Time: 3-10 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS PER YEAR
Appliation: |
EV, Telecom, Solar Energy,motorcycle, Marine |
Weight: |
1.4kgs |
Warranty: |
38 Months |
Payment: |
TT,LC |
Life Cycle: |
More Than 3000 Cycles |
Appliation: |
EV, Telecom, Solar Energy,motorcycle, Marine |
Weight: |
1.4kgs |
Warranty: |
38 Months |
Payment: |
TT,LC |
Life Cycle: |
More Than 3000 Cycles |

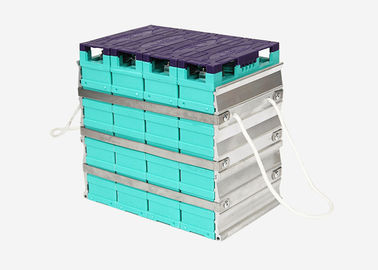

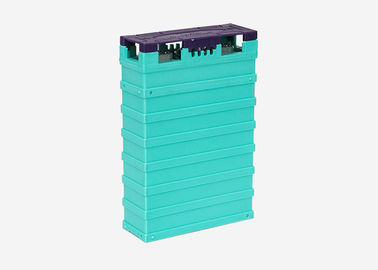

rechargeable lithium ion battery 40Ah lithium iron phosphate battery LiFePO4 lithium battery
Specification
| Item | Specification | Remark | ||
| Rated capacity | 40Ah | 0.2C rate discharge capacity | ||
| Minimum capacity | 40Ah | |||
| Internal impedance | ≤0.8mΩ | |||
| Nominal voltage | 3.2V | |||
| Cell weight | 1.4±0.1KG | |||
|
Standard discharge conditions |
Constant current | 20A | ||
| End-of-discharge voltage | 2.5V | |||
|
Standard charge method |
Constant current | 10A | ||
| Charge voltage | 3.55V | |||
| Fast charge method | Constant current | 40A | ||
| Charge voltage | 3.55V | |||
| Max continuous discharge current | 120A | |||
| Cycle life | 3000 cycles | 80% DOD | ||
| Operating temperature |
Charging ambient temperature |
0~65°C | ||
|
Discharging ambient temperature |
-20~65°C | |||
| Storage temperature | -20~65°C | |||
| Appearance |
Without break, distortion, contamination, leakage. |
|||
Basic Performance
1. Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
2. Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.
3. Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.
4. Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
5. Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).
6. It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
7. Low cost.
8. No pollution during manufacture and usage.
Certifications & Test reports
Applications
Packaging & Delivery
Comapny profile
Established in July 2007, Zhejiang GBS Energy Co.,Ltd is a leading company manufacturing large capacity plastic shell lithium iron phosphate battery in China. Our plastic shell insulated lithium battery takes the lead in the industry in the all processes including production, once use, echelon use, recycle, disassembly etc. With two production bases and nearly 300 employees, we have an annual capacity of more than 2GWh.
