Lithium Ion Lifepo4 Battery GBS-LFP100Ah-C 2.3kgs Weight Long Life Cycle

Product Details

Place of Origin: CHINA

Brand Name: GBSYSTEM

Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001,TS16949

Model Number: GBS-LFP100Ah-C

Payment & Shipping Terms

Minimum Order Quantity: 1 pcs

Price: Negotiable

Packaging Details: carton

Delivery Time: 3-7 days

Payment Terms: T/T, L/C, Western Union

Supply Ability: 1800000 pcs per year

Get Best Price
Contact Now
Specifications
High Light:

lifepo4 prismatic cells

,

lifepo4 deep cycle battery

Application:
EV, Telecom, Solar Energy Storage,motorcycle Etc
Life Cycle:
More Than 3000 Times
Weight:
2.3kgs
Payment:
TT,LC
Application:
EV, Telecom, Solar Energy Storage,motorcycle Etc
Life Cycle:
More Than 3000 Times
Weight:
2.3kgs
Payment:
TT,LC
Description
Lithium Ion Lifepo4 Battery GBS-LFP100Ah-C 2.3kgs Weight Long Life Cycle

High Energy Rechargeable LiFePO4 Lithium Ion Battery 3.2V 100Ah







Features:



a. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.

b. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of lead acid battery.

c. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.

d. Good performance at high temperature and high temperature resistance

e. Low self-discharge rate, less than 3% monthly.

f. No memory effects and highly efficient charge.

g. Environment friendly: Clean and Green energy poses no pollution on our environment

Application: Electric vehicle, e-boat, solar system, energy storage system telecom, home solar system ,Wheelchair, E-scooter, golf cart/trolley, postal van, road sweeper, industrial sweeper, ride-on floor sweeper,cleaning sweeper, floor sweeper, sweeper car....



Internal impedance ≤0.5mΩ
Standard charge 0.5C
Fast charge 1C
End of charge 3.65V
Standard discharge 0.5C
Max discharge 1C
End of discharge 2.8V
Working temperature -20~65℃
Cycle life 3000 cycles ( 0.5C )
Weight 2.3kg
Dimensions

126×46×223mm

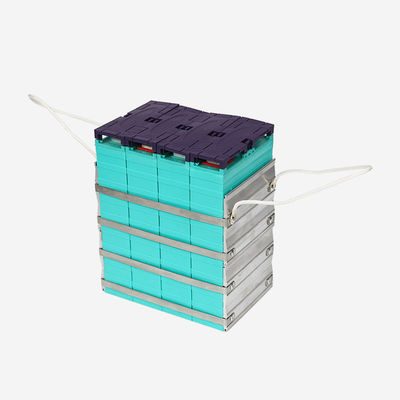

Lithium Ion Lifepo4 Battery GBS-LFP100Ah-C 2.3kgs Weight Long Life Cycle 0









Basic Performance:

1. Output with high magnification: instant impulse discharge current is 10C for 2 seconds.

2. Good performance under high temperature, it could work under 65℃ temperature.The battery structure is safe and good.

3. Good performance under low temperature,discharge capacity is no less than 90% of rated capacity when discharging with 1C under -20℃;no less than 70% of rated capacity with 0.33C.

4. Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

5. Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

6. It can fast charging. It could be charged to 80% within 0.5h and charged full with 1h.
