TS16949 3.2V 20Ah Prismatic LiFePO4 Cells For UPS

Product Details

Place of Origin: CHINA

Brand Name: GBS

Certification: CE, IEC, UL, TUV, PONY, CCS, MA, TS16949, ISO9001, ISO14001, OHSAS18001

Model Number: GBS-LFP20AH-A

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Negotiable

Packaging Details: special cartion for dangerous goods

Delivery Time: 7 days

Payment Terms: D/P, L/C, D/A, T/T, Western Union

Supply Ability: 1800000pcs per year

Get Best Price
Contact Now
Specifications
High Light:

TS16949 Prismatic LiFePO4 Cells

,

3.2V 20Ah Prismatic LiFePO4 Cells

,

UPS LiFePO4 Lithium Ion Battery

Application:
Electric Motorcycle,scooter, HEV, EV, Solar Energy, Teleom
Warranty:
38 Months
Cycle Life:
More Than 3000 Cycles
Payment:
TT,LC
Application:
Electric Motorcycle,scooter, HEV, EV, Solar Energy, Teleom
Warranty:
38 Months
Cycle Life:
More Than 3000 Cycles
Payment:
TT,LC
Description

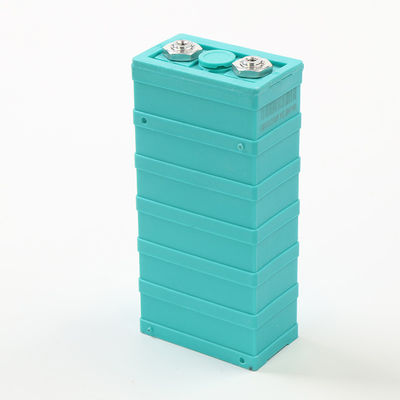

TS16949 3.2V 20Ah Prismatic LiFePO4 Cells For UPS

Prismatic LiFePO4 cell 20Ah Lithium Ion Batteries for Solar Storage Power/UPS



TS16949 3.2V 20Ah Prismatic LiFePO4 Cells For UPS 0





Item

 Specification

Model

GBS-LFP20Ah-A

Terminal screw hole

single hole

Rated capacity

20Ah

Nominal voltage

3.2V

Internal impedance

≤1.3

Standard charge current

5A

Fast charge current

20A

End of charge voltage

3.55V

Standard discharge current

10A

Max discharge current

60A

Instantaneous discharge current

20A ( 10s )

End of discharge voltage

2.5V

Working temperature

-20~65℃

Cycle life

3000 cycles  ( 0.5C )

Weight

0.7±0.1kg

Dimension

72×42×154±1mm

 Shell

PP








TS16949 3.2V 20Ah Prismatic LiFePO4 Cells For UPS 1





 TS16949 3.2V 20Ah Prismatic LiFePO4 Cells For UPS 2





Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).



(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



(7) Low cost.



(8) No pollution during manufacture and usage.







Matters needing attention



(1) Please check if spare parts are completed when open the package and read the operation manual carefully.



(2) Do not make the battery Short Circuit,do not over charge and discharge.



(3) Please charge the new battery to full capacity before discharge for the first use.



(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.



(5) Checking the voltage of battery, normally it is 12.8V-13.2V.



(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.



(7) Rivet or screw is used for battery connector.



(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.



(9) The charger used should be approved by our company in order to match with our lithium batteries.



(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.





TS16949 3.2V 20Ah Prismatic LiFePO4 Cells For UPS 3

TS16949 3.2V 20Ah Prismatic LiFePO4 Cells For UPS 4

TS16949 3.2V 20Ah Prismatic LiFePO4 Cells For UPS 5



TS16949 3.2V 20Ah Prismatic LiFePO4 Cells For UPS 6





1. When will you ship the products when paymnet is done?
Trial order is 3-7 work days,formal order 7-20 work days.



2. Is the sample available ?

Yes, but it is charged.



3. Can I get a lower price if I order large quantities?

Yes.



4. Are you a factory ?

Yes, we are the manufacturer of GBS LiFePO4 battery.



5. How you shipping the goods and how long it will take?

Normally by sea. Shipping time depends on destination port. But we can also make shipment by UPS and Fedex for trial order.



6. Why does it seem your price little higher than other factories?

We always supply High-Quality products & High-Stand service to our clients.
