100Ah Rechargeable Lithium Batteries For Energy Storage / Telecom Base Station

100Ah Rechargeable Lithium Batteries For Energy Storage / Telecom Base Station

lifepo4 rechargeable battery

lithium ion rechargeable battery pack

Place of Origin:

CHINA

Brand Name:

GBS

Certification:

CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Model Number:

GBS-LFP100Ah

Contact Us

Request A Quote
Product Details
Type:
LiFePO4
Warranty:
38 Months
Life Cycle:
More Than 2000 Cycles
Payment:
TT,LC
Application:
EV, Telecom, Solar Energy,motorcycle, UPS, ESS
Capacity:
100Ah
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
special carton for special goods
Delivery Time
3-10 DAYS
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
1800000 PCS PER YEAR
Product Description

100Ah lifepo4 lithium backup battery for energy storage system/Telecommunication base station GBS-LFP100Ah





Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).



(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



(7) Low cost.



(8) No pollution during manufacture and usage.




Item Specification Remark
Rated capacity 100Ah 0.2C rate discharge capacity
Minimum capacity 100Ah
Internal impedance ≤2.8mΩ
Nominal voltage 12V
Cell weight 12.4kg±200g

Standard discharge

conditions

Constant current 50A
End-of-discharge voltage 11.2V
Standard charge method Constant current 50A
Charge voltage 14.2V
Fast charge method Constant current 100A
Charge voltage 14.2V
Max continuous discharge current 300A
Cycle life 2000 cycles 80% DOD
Operating temperature

Charging ambient

temperature

0~65°C

Discharging ambient

temperature

-20~65°C
Storage temperature -20~65°C
Appearance

Without break,

distortion, contamination,

leakage.







Item Description Dimensions

L Length 276mm

W Width 126mm

H Height 188mm

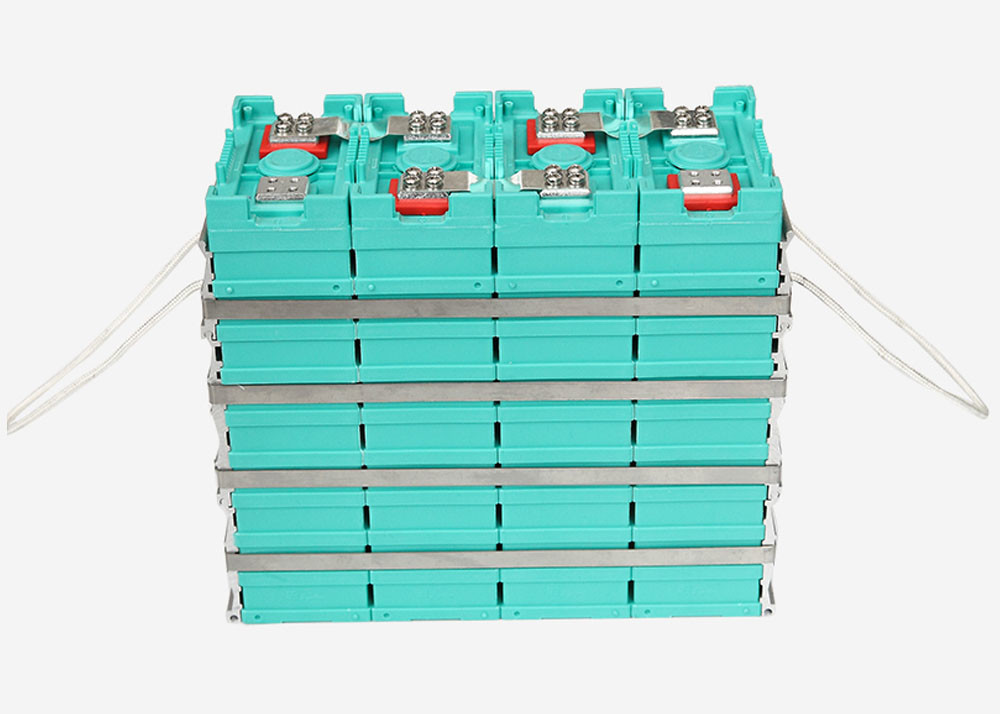

100Ah Rechargeable Lithium Batteries For Energy Storage / Telecom Base Station 0















Matters needing attention



(1) Please check if spare parts are completed when open the package and read the operation manual carefully.



(2) Do not make the battery Short Circuit,do not over charge and discharge.



(3) Please charge the new battery to full capacity before discharge for the first use.



(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.



(5) Checking the voltage of battery, normally it is 12.8V-13.2V.



(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.



(7) Rivet or screw is used for battery connector.



(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.



(9) The charger used should be approved by our company in order to match with our lithium batteries.



(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







Requirement for safety assurance



For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
