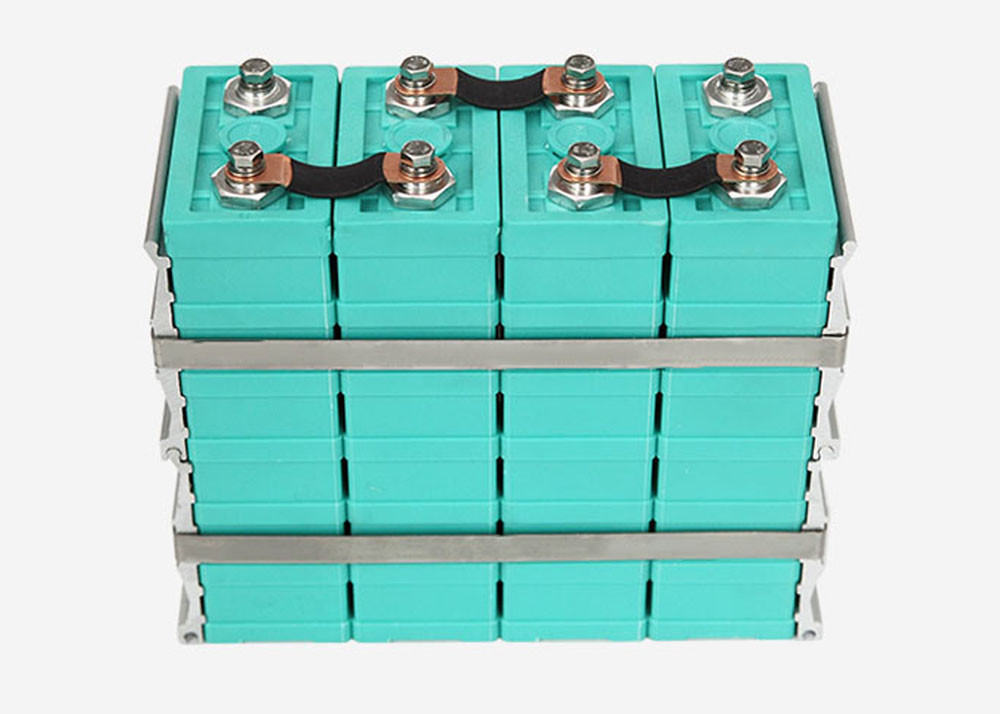

20Ah 12 Volt Lithium Ion Battery For Solar , Rechargeable Li Ion Battery Pack

Minimum Order Quantity : 1UNIT Price : Negotiable
Packaging Details : Standard Packaging Delivery Time : 7 work days
Payment Terms : T/T
Place of Origin: Zhejiang, China Brand Name: GBS
Certification: CE,TUV,UL,IEC,ISO9001,ISO14001,OHSAS18001 Model Number: GBS-12V20Ah

Detail Information

Material: LiFePO4 Dimension: 180x78.6x168mm
Warranty: 2 Years Work Temperature:: 20℃~70℃
Nominal Capacity:: 20AH Nominal Voltage:: 12V
High Light:

lithium ion solar battery

,

lithium ion battery pack for solar

Product Description

12V20Ah battery case lithium ion battery



Specifications



Good performance under high and low temperature;



Good safety performance;



Good cycle life time;



No pollution during manufacture.





Applications:

Electric vehicle
Golf cart
Electric motorcycle
Electric boat
Electric forklift
Telecommunication
Distributed Grid Energy Storage system
Mining equipment
Solar energy storage system
Marine
Backup power
Household energy storage system



Cell Dimension:

20Ah 12 Volt Lithium Ion Battery For Solar , Rechargeable Li Ion Battery Pack 0

Battery Technical Specification:

20Ah 12 Volt Lithium Ion Battery For Solar , Rechargeable Li Ion Battery Pack 1



Basic Performance

(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

(3) Good performance under low temperature.discharge capacity decreases to over 90% under 0°C and discharge capacity decreases to over 70% under -20°C.

(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

(6) It can fast charging. It could be charged to 80% within 0.5h and charged full with 2-3h.

(7) No pollution during manufacture and usage.



Requirement for safety assurance

For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
