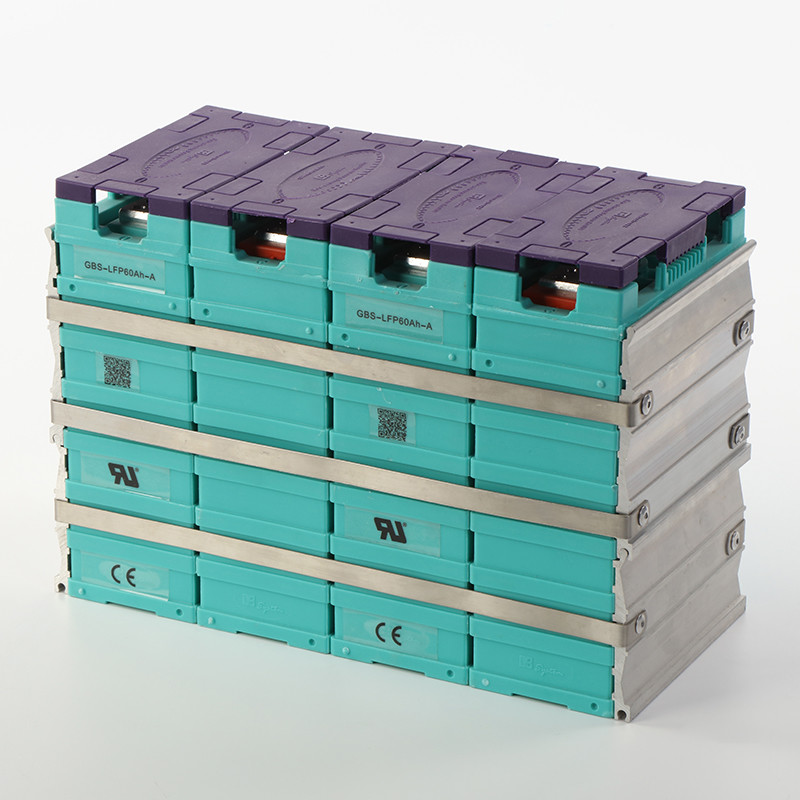

GBS-LFP40Ah Mining Backup Power LiFePO4 Rechargeable Battery

Minimum Order Quantity : 1 PCS Price : Negotiable
Packaging Details : special carton for dangerous goods Delivery Time : 3-10 DAYS
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1800000 PCS PER YEAR
Place of Origin: CHINA Brand Name: GBS
Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001 Model Number: GBS-LFP40Ah

Detail Information

Appliation: EV, Telecom, Solar Energy,motorcycle Weight: 1.4kgs
Warranty: 38 Months Payment: TT,LC
Life Cycle: More Than 3000 Cycles Capacity: 40Ah
High Light:

40Ah LiFePO4 Rechargeable Battery


Mining Backup Power LiFePO4 Battery


GBS-LFP40Ah LiFePO4 Battery

Product Description


rechargable lithium battery 40Ah GBS-LFP40Ah for electric motorcycle, mining backup power etc; LiFePO4 battery







 Rated capacity


 0.2C rate discharge capacity

 Minimum capacity


 Internal impedance



 Nominal voltage



 Cell weight



 Standard discharge


 Constant current



 End-of-discharge voltage



 Standard charge


 Constant current



 Charge voltage



 Fast charge method

 Constant current



 Charge voltage



 Max continuous discharge current



 Cycle life

3000 cycles

 80% DOD

 Operating temperature

 Charging ambient




 Discharging ambient




 Storage temperature




 Without break,

 distortion, contamination,






GBS-LFP40Ah Mining Backup Power LiFePO4 Rechargeable Battery 0




Basic Performance

(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.

(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

(6)  It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.

(7)  Low cost.

(8)  No pollution during manufacture and usage.



Matters needing attention

(1) When opening the package, please check whether the spare parts are complete and read the operation manual carefully.
(2) Do not short-circuit the battery, do not overcharge and discharge.
(3) Please fully charge the new battery before using it for the first time.
(4) The battery pack is fixed with plate and strip before leaving the factory. Do not remove the plate and strip when using the battery.
(5) Check the battery voltage, normal is 3.2v-3.3v.
(6) Fix the BMS of the battery pack to protect the single battery from overcharge and over discharge.
(7) Rivets or screws are used for battery connector.
(8) Please connect the battery pack with copper wire and fix it with hydraulic clamp. We can also provide the corresponding screw fixed connection.
(9) The charger used shall be approved by the company to match the lithium battery of the company.
(10) If the above regulations are not followed, the cycle life of the battery will be shortened and the battery will be damaged due to overcharge and over discharge. It's not covered by our company's warranty.

Requirement for safety assurance

For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.

Service line: +86-400-884-7799
