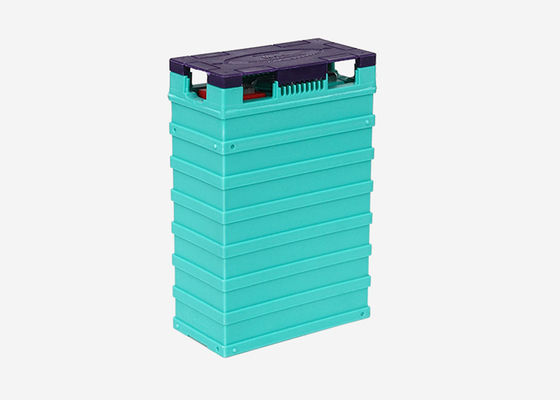

High Energy Denstiy Prismatic Lifepo4 Cells , Lithium Ion Battery Backup For Solar

Minimum Order Quantity : 4PCS Price : USD48
Packaging Details : Standard Packaging Delivery Time : 7 work days
Payment Terms : T/T Supply Ability : 3000000PCS PER YEAR
Place of Origin: Zhejiang, China Brand Name: GBS
Certification: CE,TUV,UL,IEC,ISO9001,ISO14001,OHSAS18001 Model Number: GBS-LFP60Ah

Detail Information

Material: LiFePO4 Dimension: 126x65x189mm
Warranty: 2 Years Application:: Solar LED Lighting, Foldable E-scooter, E-tricycle,Mobility Scooters.
High Light:

lithium iron phosphate cells

,

prismatic lithium ion battery

Product Description

High Energy Denstiy Prismatic Lifepo4 Cells , Lithium Ion Battery Backup For Solar 0





Prismatic green energy lithium ion battery



Specifications



Good performance under high and low temperature;



Good safety performance;



Good cycle life time;



No pollution during manufacture.







Cell Dimension:



High Energy Denstiy Prismatic Lifepo4 Cells , Lithium Ion Battery Backup For Solar 1





Specification of battery cell





Item Specification
Model GBS-LFP60Ah-A
Pole screw hole 4 holes
Rated capacity 60Ah
Nominal voltage 3.2V
Internal impedance ≤0.45mΩ
Standard charge rate 0.25C
Fast charge rate 1.0C
End of charge voltage 3.65V
Standard discharge rate 0.5C
Max discharge rate 1.0C
Instantaneous discharge rate 3C ( 10s )
End of discharge voltage 2.8V
Working temperature -20~65℃
Cycle life 3000 cycles ( 0.5C )
Weight 2.1±0.1kg
Dimension 126×65×189±1mm
Shell PP







Basic Performance

(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

(3) Good performance under low temperature.discharge capacity decreases to over 90% under 0°C and discharge capacity decreases to over 70% under -20°C.

(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

(6) It can fast charging. It could be charged to 80% within 0.5h and charged full with 2-3h.

(7) No pollution during manufacture and usage.



Requirement for safety assurance

For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.





High Energy Denstiy Prismatic Lifepo4 Cells , Lithium Ion Battery Backup For Solar 2

High Energy Denstiy Prismatic Lifepo4 Cells , Lithium Ion Battery Backup For Solar 3
