  • quality 60ah Lifepo4 Li Ion Rechargeable Battery 3.2 V factory

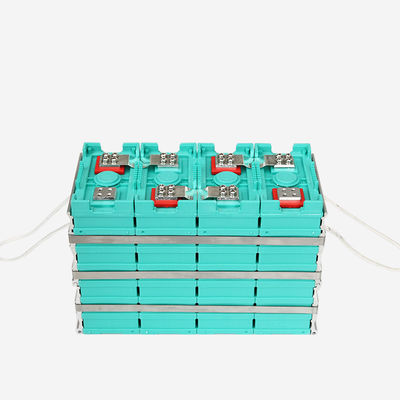

60ah Lifepo4 Li Ion Rechargeable Battery 3.2 V

Basic Properties
Place of Origin: China
Brand Name: GBS
Certification: CE,UL,IEC62619,TUV,ISO9001,ISO14001,OHSAS18001
Model Number: GBS-12V60Ah
Trading Properties
Minimum Order Quantity: 4PCS
Price: USD192
Payment Terms: L/C, T/T
Supply Ability: 3000000PCS PER YEAR
Tags

lithium iron phosphate prismatic cells

prismatic lithium ion battery

lithium iron phosphate cells
Specifications
Material: Lifepo4 Cycle life: 3000 Times
Connector: Busbar, Lug, Screw, Bolt Warranty: 2 Years
High Light:

Lifepo4 Li Ion Rechargeable Battery 3.2 V

,

60ah Rechargeable Battery Li Ion 3.2 V

,

60ah Li Ion Rechargeable Battery 3.2 V
Product Description



Please leave your message here, we will contact you soon.





60ah Lifepo4 Li Ion Rechargeable Battery 3.2 V 0



60ah Lifepo4 Li Ion Rechargeable Battery 3.2 V 1



60ah Lifepo4 Li Ion Rechargeable Battery 3.2 V 2



60ah Lifepo4 Li Ion Rechargeable Battery 3.2 V 3

60ah Lifepo4 Li Ion Rechargeable Battery 3.2 V 4



Item Specification
Model GBS-LFP60Ah-A
Pole screw hole 4 holes
Rated capacity 60Ah
Nominal voltage 3.2V
Internal impedance ≤0.45mΩ
Standard charge rate 0.25C
Fast charge rate 1.0C
End of charge voltage 3.65V
Standard discharge rate 0.5C
Max discharge rate 1.0C
Instantaneous discharge rate 3C ( 10s )
End of discharge voltage 2.8V
Working temperature -20~65℃
Cycle life 3000 cycles ( 0.5C )
Weight 2.1±0.1kg
Dimension 126×65×189±1mm
Shell PP





Item Specification Remark
Rated capacity 60Ah 0.2C rate discharge capacity
Minimum capacity 60Ah
Nominal voltage 12.8V
Cell weight 8.6kg

Standard discharge

conditions

 Constant current 30A
End-of-charge voltage 11.2V
Standard charge method Constant current 15A
Charge voltage 14.6V
Fast charge method Constant current 60A
Charge voltage 14.6V
Max continuous discharge current 180A
Cycle life 3000 cycles 80% DOD
Operating temperature

Charging ambient

temperature

 0~45°C

Discharging ambient

temperature

 -20~65°C
Storage temperature 0~45°C
Appearance

Without break,

distortion, contamination,

leakage.





60ah Lifepo4 Li Ion Rechargeable Battery 3.2 V 5

60ah Lifepo4 Li Ion Rechargeable Battery 3.2 V 6



  • When will you ship the products when payment is done?



Trial order is 3-7 work days,formal order 7-20 work days.



  • Is the sample available?

Yes, but it is charged.



  • Can I get a lower price if I order large quantities?

Yes.



  • Are you a factory?

Yes, we are the manufacturer of GBS LiFePO4 battery.



  • How you shipping the goods and how long it will take?

Normally by sea. Shipping time depends on destination port. But we can also make shipment by UPS and Fedex for trial order.



  • What is warranty?

2 years.



  • Why does it seem your price little higher than other factories?

We always supply High-Quality products & High-Stand service to our clients.
