Lifepo4 Battery 3.2V 40Ah 60Ah 80Ah 100Ah 200Ah for Electric Logistics Vehicle

Product Details

Place of Origin: Ningbo , China(Main land)

Brand Name: GBS

Certification: UL , TUV , CE , IEC

Model Number: 3.2V80Ah-H

Payment & Shipping Terms

Minimum Order Quantity: Negotiation

Price: Negotiable

Packaging Details: carton

Delivery Time: 3-10 work days

Payment Terms: T/T, 30% advanced deposit, the balance paid off before loading, or consulting.

Supply Ability: 10 million Wh per month

Get Best Price
Contact Now
Specifications
High Light:

lifepo4 prismatic cells

,

lifepo4 lithium ion battery

Shell:
PP
External Type:
Square Shape
Rated Capacity:
80Ah
Nominal Voltage:
3.2V
Energy Density:
143.2Wh/Kg
Shell:
PP
External Type:
Square Shape
Rated Capacity:
80Ah
Nominal Voltage:
3.2V
Energy Density:
143.2Wh/Kg
Description

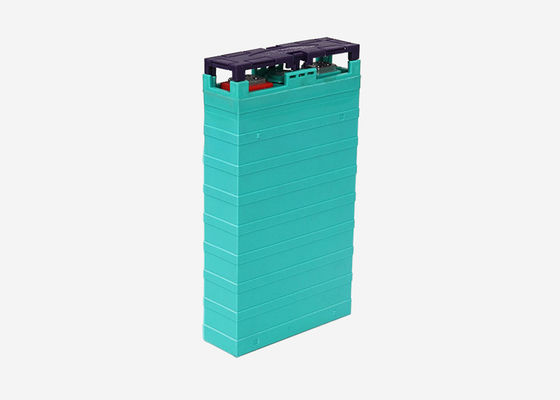

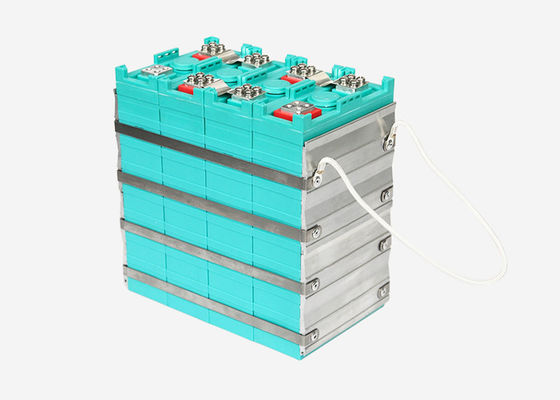

Lifepo4 Battery 3.2V 40Ah 60Ah 80Ah 100Ah 200Ah for Electric Logistics Vehicle

Electric Logistics Vehicle Battery ,Lithium battery , power battery , 3.2V 40Ah 60Ah 80Ah 100Ah 200Ah , GBS ,GBsystem





Internal impedance ≤0.5mΩ
Standard charge 0.5C
Fast charge 1C
End of charge 3.65V
Standard discharge 0.5C
Max discharge 1C
End of discharge 2.8V
Working temperature -20~65℃
Cycle life 3000 cycles ( 0.5C )
Weight 1.8kg
Dimensions 126×37×223mm



Lifepo4 Battery 3.2V 40Ah 60Ah 80Ah 100Ah 200Ah for Electric Logistics Vehicle 0



Matters needing attention:

1. Li-ion battery cells must be used with a battery management system(BMS). Every Li-ion battery cell must be monitored and automatically protected by a BMS system against over-charge and over-discharge conditions. Over-charge and over-discharged conditions will cause permanent damage to battery cells and packs, and possibly create unsafe operating conditons, such as fire.

2. Always implement safety devices such as fuses and contractors together with BMS system to disrupt charging and discharging paths when unsafe conditions occur, such as over-voltage, under-voltage, over-current, short circuit, over-temperature, under- temperature, etc.

3. Always use a BMS system provided by GBS together with GBS Li-ion batteries. If a non-GBS provided BMS is desired, buyer must send specifications of the BMS system to GBS for review and approval prior to installation.

4. Always use a GBS provided charger to charge GBS Li-ion batteries. If a non-GBS provided charger is desired, buyer must submit the specifications of the charger to GBS for review and approval prior to use.

5. Read the specifications of GBS Li-ion battery before using and charging. Always charge and discharge Li-ion battery within the specified parameter ranges based on individual cell voltages and temperatures.

6. Battery, BMS, charger and other control delectronics must be installed or kept in a dry area. Avoid exposure to water, such as rain, splashes and moisture condensation.
