Product Details
Place of Origin: Ningbo , China（Main land）
Brand Name: GBS
Certification: UL , TUV , CE , IEC

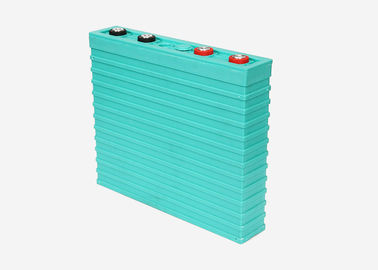

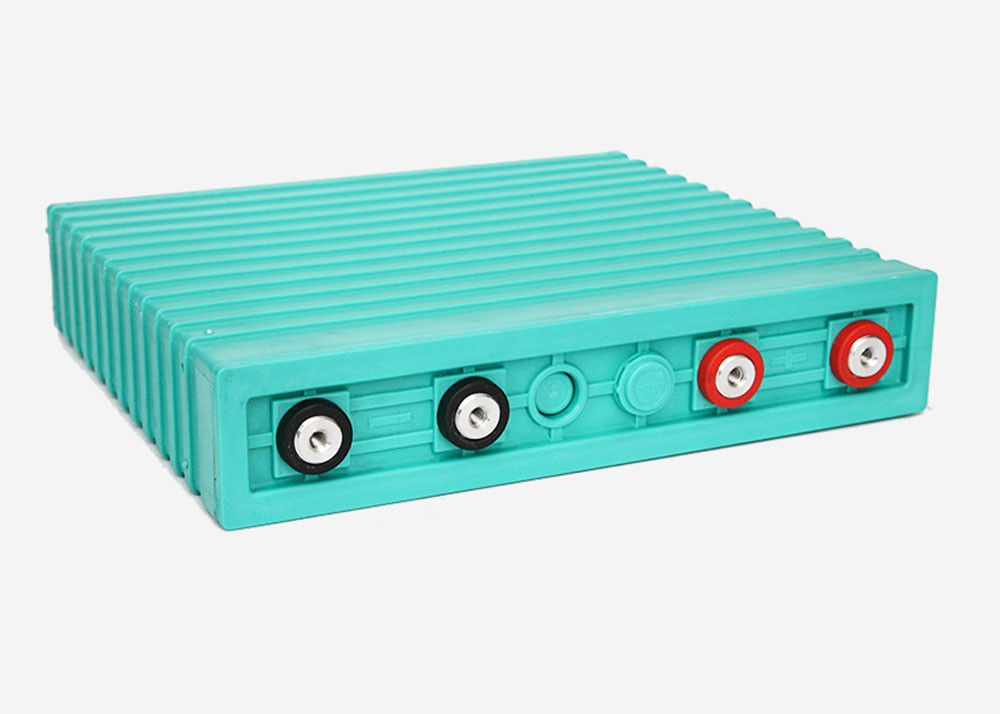

Model Number: GBS-LFP400Ah
Payment & Shipping Terms
Minimum Order Quantity: 1 pcs
Price: Negotiable
Packaging Details: carton
Delivery Time: 3-10 work days
Payment Terms: T/T, 30% advanced deposit, the balance paid off before loading, or consulting.
Supply Ability: 10 million Wh per month
Shell: |
PP |
External Type: |
Square Shape |
Rated Capacity: |
400Ah |
Nominal Voltage: |
3.2V |
Shell: |
PP |
External Type: |
Square Shape |
Rated Capacity: |
400Ah |
Nominal Voltage: |
3.2V |
| Internal impedance | ≤0.5mΩ |
| Standard charge | 0.5C |
| Fast charge | 1C |
| End of charge | 3.65V |
| Standard discharge | 0.5C |
| Max discharge | 1C |
| Instantaneous discharge | 3C ( 10s ) |
| End of discharge | 2.8V |
| Working temperature | -20～65℃ |
| Cycle life | 3000 cycles ( 0.5C ) |
| Weight | 13.2kg |
| Dimensions | 365×73×312mm |
Matters needing attention
WARNING: Please read and understand the safety Guidelines and Instructions in its entirety before using or changing your GBS Li-ion battery pack. Failure to do so may results in fir, personal injuiry, or damage to property if used improperly. GBS assumes no liability or warranty claim for failure to comply with the Guidelines and Instructions.
1. Li-ion battery cells must be used with a battery management system(BMS). Every Li-ion battery cell must be monitored and automatically protected by a BMS system against over-charge and over-discharge conditions. Over-charge and over-discharged conditions will cause permanent damage to battery cells and packs, and possibly create unsafe operating conditons, such as fire.
2. Always implement safety devices such as fuses and contractors together with BMS system to disrupt charging and discharging paths when unsafe conditions occur, such as over-voltage, under-voltage, over-current, short circuit, over-temperature, under- temperature, etc.
