Lithium Ion Battery For Solar Panels , 24v 20Ah Lifepo4 Rechargeable Battery

Product Details

Place of Origin: Zhejiang, China

Brand Name: GBSystem

Certification: Ce, TUV, PONY, MA, ISO9001, ISO14001, OHASA18001

Model Number: GBS-LFP20Ah

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: Negotiable

Packaging Details: Special Carton for Dangerous Goods

Delivery Time: 10 work days

Supply Ability: 1000000 Piece/Pieces per Year

Get Best Price
Contact Now
Specifications
High Light:

lithium ion battery for solar storage

,

lithium ion battery pack for solar

Application:
EV, Telecom, Solar Energy, Motorcycle
Warranty:
38 Months
Cycle Life:
More Than 3000 Times
Weight:
0.7 ± 0.05kg
Payment:
TT/LC
Package:
Special Carton For Dangerous Goods
Dimension:
72*42*152mm
Shape:
Prismatic
HS Code:
8507600090
Application:
EV, Telecom, Solar Energy, Motorcycle
Warranty:
38 Months
Cycle Life:
More Than 3000 Times
Weight:
0.7 ± 0.05kg
Payment:
TT/LC
Package:
Special Carton For Dangerous Goods
Dimension:
72*42*152mm
Shape:
Prismatic
HS Code:
8507600090
Description
Lithium Ion Battery For Solar Panels , 24v 20Ah Lifepo4 Rechargeable Battery

green power rechargeable 24v 20Ah lifepo4 lithium ion battery packs for solar system



1. Green: Non-Toxic, comfort to RoHS.

2. Long cycle life: > 2000 cycles, while Sealed Lead Acid batteries only 750 cycles and NiMh batteries only 500 cycles)

3. Safety
The safest battery in the world till now, which does not burn with 30V charge voltage and it does not explore when you puncture the battery. UL approved.

4. Light weight and smaller dimension
The dimension is smallest and the weight is lightest when compare with other battery. 1/3 weight of SLA, 65% weight of NIMH.

5. Great capacity and more powerful, rechargeable battery
High discharge current, 1C continuous, 3C pulse for normal cells and 20 C for special design
We can install many single cells in series and in parallel and it can fully discharge


Detailed Images

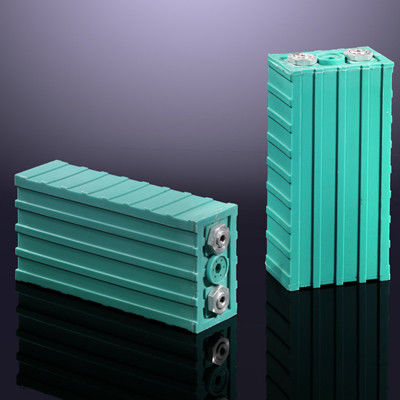

Lithium Ion Battery For Solar Panels , 24v 20Ah Lifepo4 Rechargeable Battery 0



Lithium Ion Battery For Solar Panels , 24v 20Ah Lifepo4 Rechargeable Battery 1






Demension







Lithium Ion Battery For Solar Panels , 24v 20Ah Lifepo4 Rechargeable Battery 2





Specification





Item



Specification





Model



GBS-LFP20Ah



Rated capacity



20Ah



Nominal voltage



3.2V



Internal impedance



≤2.5mΩ



Standard charge



0.5C



Fast charge



1C



End of charge



3.65V



Standard discharge



0.5C



Max discharge



1C



Instantaneous discharge



3C(10s)



End of discharge



2.8V



Working temperature



-20-65℃



Cycle life



3000 cycles(0.5C)



Weight



0.7kg



Dimensions



72×42×152mm



Shell



PP







Certificates





Lithium Ion Battery For Solar Panels , 24v 20Ah Lifepo4 Rechargeable Battery 3Lithium Ion Battery For Solar Panels , 24v 20Ah Lifepo4 Rechargeable Battery 4





Company Information





Lithium Ion Battery For Solar Panels , 24v 20Ah Lifepo4 Rechargeable Battery 5



Why Choose Us







(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.





(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.





(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.





(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.





(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).





(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.





(7) Low cost.





(8) No pollution during manufacture and usage.







Exhibition







Lithium Ion Battery For Solar Panels , 24v 20Ah Lifepo4 Rechargeable Battery 6







Production Line







Lithium Ion Battery For Solar Panels , 24v 20Ah Lifepo4 Rechargeable Battery 7



      1. Coating                                    5. Formation



      2. Cutting                                     6. Grading



      3. Stacking                                   7. Finishing product



      4. Sealing                                     8. Packing







Attentions





(1) Please check if spare parts are completed when open the package and read the operation manual carefully.





(2) Do not make the battery Short Circuit,do not over charge and discharge.





(3) Please charge the new battery to full capacity before discharge for the first use.





(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.





(5) Checking the voltage of battery, normally it is 3.2V-3.3V.





(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.





(7) Rivet or screw is used for battery connector.





(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.





(9) The charger used should be approved by our company in order to match with our lithium batteries.





(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







Requirements For Safety Assurance





For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
