China Lifepo4 Battery manufacturer

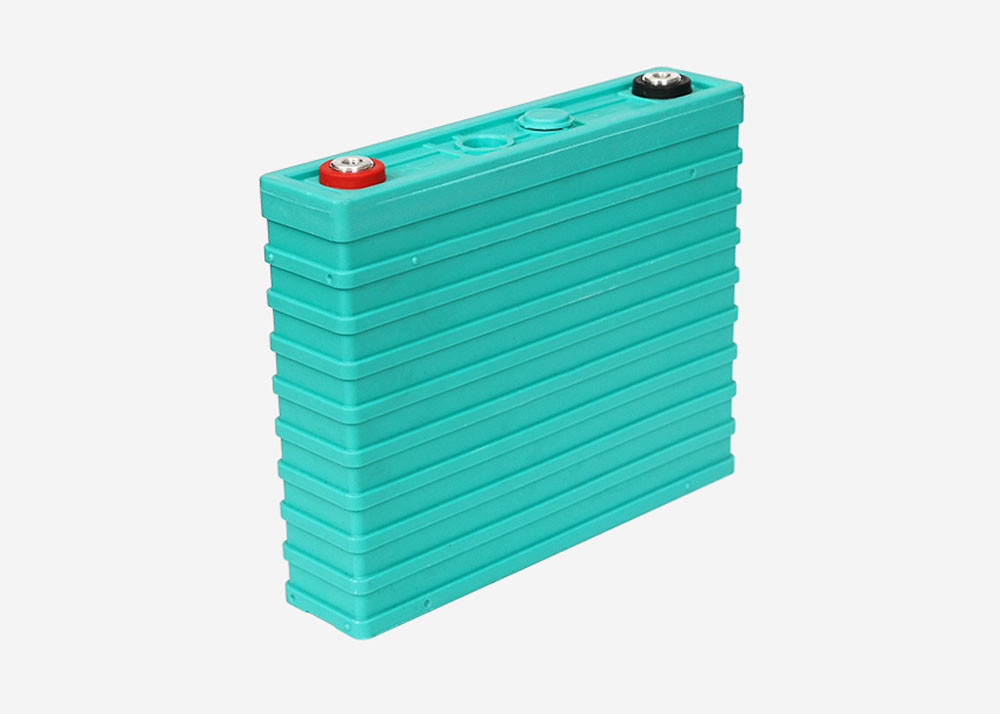

Deep Cycle 200Ah Lifepo4 Rechargeable Battery , Lithium Motorbike Battery

Product Details:
Place of Origin: CHINA
Brand Name: GBS
Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001
Model Number: GBS-LFP200Ah-B
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: special carton for dangerous goods
Delivery Time: 3-10 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS PER YEAR
Contact Now

Detail Information

Application: Electric Bus, Backup Power Warranty: 38 Months
Life Cycle: More Than 3000 Cycles Payment: LC, TT
Capacity: 200Ah Feature: Longer Life Cycle

Product Description

Deep cycle 200Ah lithium battery for solar system and electric forklift GBS-LFP200Ah-B





Good performance under high and low temperature;Good safety performance;Good cycle life time;No pollution during manufacture.




ItemSpecificationRemark
Rated capacity200Ah0.2C rate discharge capacity
Minimum capacity200Ah
Internal impedance≤0.6mΩ
Nominal voltage3.2V
Cell weight6.5kg±0.1kg

Standard discharge
conditions

Constant current100A
End-of-discharge voltage2.5V
Standard charge methodConstant current50A
Charge voltage3.55V
Fast charge methodConstant current200A
Charge voltage3.55V
Max continuous discharge current400A
Cycle life3000 cycles80% DOD
Operating temperature

Charging ambient
temperature

0~65°C

Discharging ambient
temperature

-20~65°C
Storage temperature-20~65°C
Appearance

Without break,
distortion, contamination,
leakage.









Basic Performance

(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.

(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).

(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.

(7) Low cost.

(8) No pollution during manufacture and usage.





Matters needing attention

(1) Please check if spare parts are completed when open the package and read the operation manual carefully.

(2) Do not make the battery Short Circuit,do not over charge and discharge.

(3) Please charge the new battery to full capacity before discharge for the first use.

(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.

(5) Checking the voltage of battery, normally it is 12.8V-13.2V.

(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.

(7) Rivet or screw is used for battery connector.

(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.

(9) The charger used should be approved by our company in order to match with our lithium batteries.

(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.



Requirement for safety assurance

For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.

Service line: +86-400-884-7799
