24V/48V 400Ah Lithium Ion Solar Battery , Lifepo4 Lithium Ion Deep Cycle Battery

24V/48V 400Ah Lithium Ion Solar Battery , Lifepo4 Lithium Ion Deep Cycle Battery

  • High Light

    lithium ion solar battery

    ,

    lithium ion battery pack for solar

  • Application
    EV, Solar System, Energy Storage Equipment, UPS
  • Warranty
    38 Months
  • Life Cycle
    More Than 3000 Cycles
  • Weight
    13.2kgs
  • Type
    Lifepo4
  • Capacity
    400Ah
  • Place of Origin
    CHINA
  • Brand Name
    GBS
  • Certification
    CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001
  • Model Number
    GBS-LFP400Ah
  • Minimum Order Quantity
    1 PCS
  • Price
    Negotiable
  • Packaging Details
    special carton for dangerous goods
  • Delivery Time
    3-10 days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1800000 PCS PER YEAR

24V/48V 400Ah Lithium Ion Solar Battery , Lifepo4 Lithium Ion Deep Cycle Battery

  • 24V/48V 400Ah Lithium Ion Solar Battery , Lifepo4 Lithium Ion Deep Cycle Battery
  • 24V/48V 400Ah Lithium Ion Solar Battery , Lifepo4 Lithium Ion Deep Cycle Battery
  • 24V/48V 400Ah Lithium Ion Solar Battery , Lifepo4 Lithium Ion Deep Cycle Battery

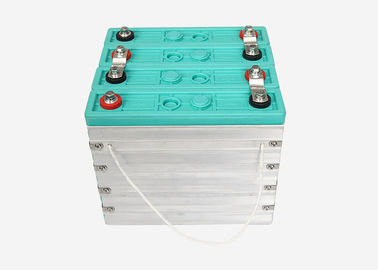

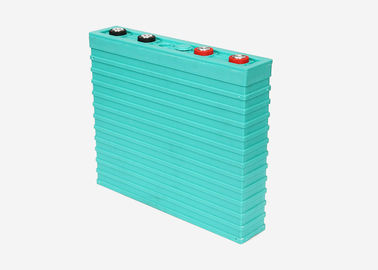

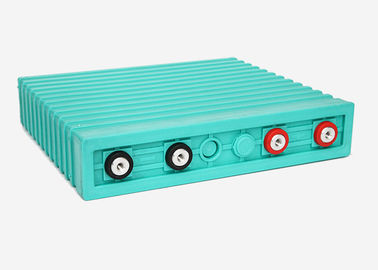

Deep cycle 24V/48V 400Ah lithium ion lifepo4 battery for solar system, energy storage equipment, UPS etc GBS-LFP400Ah







Item

Specification

Remark

Rated capacity

400Ah

0.2C rate discharge capacity

Minimum capacity

400Ah

Internal impedance

≤0.5mΩ



Nominal voltage

3.2V



weight

13.2±0.15KG



Standard discharge

conditions

Constant current

200A



End-of-discharge voltage

2.5V



Standard charge method

Constant current

100A



Charge voltage

3.55V



Fast charge method

Constant current

400A



Charge voltage

3.55V



Max continuous discharge current

800A



Cycle life

3000 cycles

80% DOD

Operating temperature

Charging ambient

temperature

0~65°C



Discharging ambient

temperature

-20~65°C



Storage temperature

-20~65°C



Appearance

Without break,

distortion, contamination,

leakage.





24V/48V 400Ah Lithium Ion Solar Battery , Lifepo4 Lithium Ion Deep Cycle Battery 0





Basic Performance

(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.

(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

(5) Good cycle life time, the discharge capacity is still over 80% after 2000cycle times of single cell(80%DOD).

(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.

(7) Low cost.

(8) No pollution during manufacture and usage.





Matters needing attention

(1) Please check if spare parts are completed when open the package and read the operation manual carefully.

(2) Do not make the battery Short Circuit,do not over charge and discharge.

(3) Please charge the new battery to full capacity before discharge for the first use.

(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.

(5) Checking the voltage of battery, normally it is 3.2V-3.3V.

(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.

(7) Rivet or screw is used for battery connector.

(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.

(9) The charger used should be approved by our company in order to match with our lithium batteries.

(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.



Requirement for safety assurance

For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.

Service line: +86-400-884-7799
