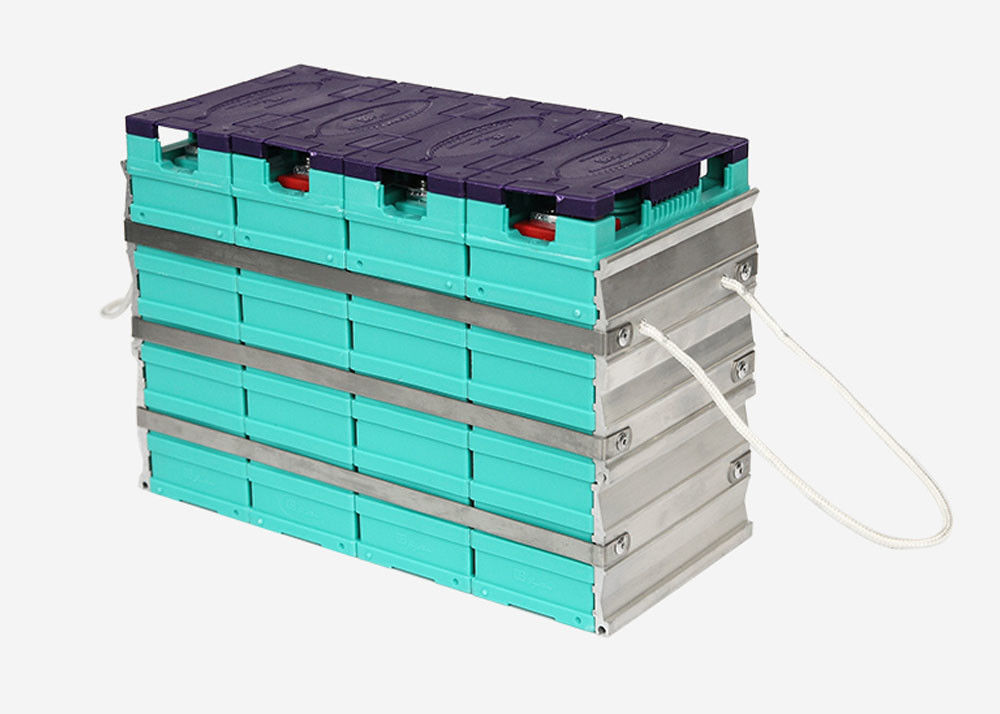

Fast Charge UPS Lithium Battery 12V/24V 60Ah , Lifepo4 UPS Power Supply Battery

Fast Charge UPS Lithium Battery 12V/24V 60Ah , Lifepo4 UPS Power Supply Battery

ups rechargeable battery

uninterruptible power supply lithium battery

Place of Origin:


Brand Name:



CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Model Number:


Contact Us

Request A Quote
Product Details
EV, Telecom, Solar Energy,motorcycle, UPS
38 Months
Cycle Life:
More Than 2000 Cycles
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
special carton for dangerous goods
Delivery Time
3-10 DAYS
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
1800000 PCS PER YEAR
Product Description

Best quality lithium 24V 60Ah LFP battery pack for ups/scooter/solar system GBS-LFP60Ah


Item Specification Remark
Rated capacity 60Ah 0.2C rate discharge capacity
Minimum capacity 60Ah
Internal impedance ≤6.0mΩ
Nominal voltage 12V
Cell weight 8.6kg±100g

Standard discharge


Constant current 30A
End-of-discharge voltage 11.2V
Standard charge method Constant current 30A
Charge voltage 14.2V
Fast charge method Constant current 60A
Charge voltage 14.2V
Max continuous discharge current 180A
Cycle life 2000 cycles 80% DOD
Operating temperature

Charging ambient



Discharging ambient


Storage temperature -20~65°C

Without break,

distortion, contamination,




Item Description Dimensions

L Length 276mm

W Width 126mm

H Height 188mm


Fast Charge UPS Lithium Battery 12V/24V 60Ah , Lifepo4 UPS Power Supply Battery 0



Basic Performance




(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.




(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.




(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.




(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.




(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).




(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.




(7) Low cost.




(8) No pollution during manufacture and usage.












Matters needing attention




(1) Please check if spare parts are completed when open the package and read the operation manual carefully.




(2) Do not make the battery Short Circuit,do not over charge and discharge.




(3) Please charge the new battery to full capacity before discharge for the first use.




(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.




(5) Checking the voltage of battery, normally it is 12.8V-13.2V.




(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.




(7) Rivet or screw is used for battery connector.




(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.




(9) The charger used should be approved by our company in order to match with our lithium batteries.




(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.




Requirement for safety assurance




For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
