12V/24V/48V 50Ah Lithium Iron Phosphate Rechargeable Battery For UPS System

12V/24V/48V 50Ah Lithium Iron Phosphate Rechargeable Battery For UPS System

  • High Light

    ups rechargeable battery

    ,

    uninterruptible power supply lithium battery

  • Application
    EV, UPS, Electric Bus, Telecom, Solar Energy,motorcycle
  • Warranty
    38 Months
  • Life Cycle
    More Than 2000 Cycles
  • Payment
    TT,LC
  • Material
    LiFePO4
  • Feature
    Environmental Friendly.
  • Place of Origin
    CHINA
  • Brand Name
    GBS
  • Certification
    CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001
  • Model Number
    GBS-LFP50Ah
  • Minimum Order Quantity
    1 PCS
  • Price
    Negotiable
  • Packaging Details
    special carton for dangerous goods
  • Delivery Time
    3-10 DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1800000 PCS PER YEAR

12V/24V/48V 50Ah Lithium Iron Phosphate Rechargeable Battery For UPS System

  • 12V/24V/48V 50Ah Lithium Iron Phosphate Rechargeable Battery For UPS System
  • 12V/24V/48V 50Ah Lithium Iron Phosphate Rechargeable Battery For UPS System
  • 12V/24V/48V 50Ah Lithium Iron Phosphate Rechargeable Battery For UPS System

Rechargeable 48V50Ah lithium ion battery storage for UPS GBS-LFP50Ah



Features:


High cycle life
Low self-discharge
Environmental protection, no pollution
Excellent safety performance
No maintenance operation
Extensive temperature operation.



Item

Specification

Remark

Rated capacity

50Ah

0.2C rate discharge capacity

Minimum capacity

50Ah

Internal impedance

≤6.4mΩ



Nominal voltage

12V



Cell weight

8kg±100g



Standard discharge

conditions

Constant current

25A



End-of-discharge voltage

11.2V



Standard charge method

Constant current

12.5A



Charge voltage

14.2V



Fast charge method

Constant current

50A



Charge voltage

14.2V



Max continuous discharge current

150A



Cycle life

2000 cycles

80% DOD

Operating temperature

Charging ambient

temperature

0~65°C



Discharging ambient

temperature

-20~65°C



Storage temperature

-20~65°C



Appearance

Without break,

distortion, contamination,

leakage.





Item Description Dimensions

L Length 200mm

W Width 126mm

H Height 204mm

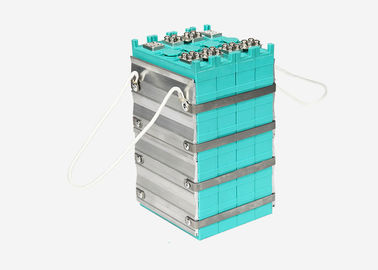

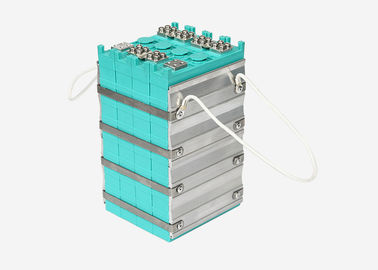

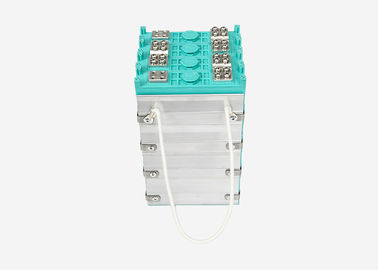

12V/24V/48V 50Ah Lithium Iron Phosphate Rechargeable Battery For UPS System 0







Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).



(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



(7) Low cost.



(8) No pollution during manufacture and usage.











Matters needing attention



(1) Please check if spare parts are completed when open the package and read the operation manual carefully.



(2) Do not make the battery Short Circuit,do not over charge and discharge.



(3) Please charge the new battery to full capacity before discharge for the first use.



(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.



(5) Checking the voltage of battery, normally it is 12.8V-13.2V.



(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.



(7) Rivet or screw is used for battery connector.



(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.



(9) The charger used should be approved by our company in order to match with our lithium batteries.



(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







Requirement for safety assurance



For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
