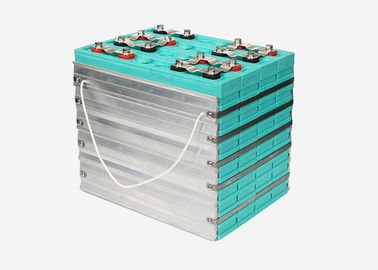

3.2V 200Ah UPS Li Ion Battery , Lifepo4 Lithium Battery For UPS Backup Storage

3.2V 200Ah UPS Li Ion Battery , Lifepo4 Lithium Battery For UPS Backup Storage

  • High Light

    ups li ion battery

    ,

    uninterruptible power supply lithium battery

  • Application
    Electric Bus, Backup Power, UPS
  • Warranty
    38 Months
  • Life Cycle
    More Than 3000 Times
  • Payment
    LC, TT
  • Capacity
    200Ah
  • Voltage
    3.2V
  • Place of Origin
    CHINA
  • Brand Name
    GBS
  • Certification
    CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001
  • Model Number
    GBS-LFP200Ah-B
  • Minimum Order Quantity
    1 PCS
  • Price
    Negotiable
  • Packaging Details
    special carton for dangerous goods
  • Delivery Time
    3-10 DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union, MoneyGram
  • Supply Ability
    1800000 PCS PER YEAR

3.2V 200Ah UPS Li Ion Battery , Lifepo4 Lithium Battery For UPS Backup Storage

  • 3.2V 200Ah UPS Li Ion Battery , Lifepo4 Lithium Battery For UPS Backup Storage
  • 3.2V 200Ah UPS Li Ion Battery , Lifepo4 Lithium Battery For UPS Backup Storage
  • 3.2V 200Ah UPS Li Ion Battery , Lifepo4 Lithium Battery For UPS Backup Storage

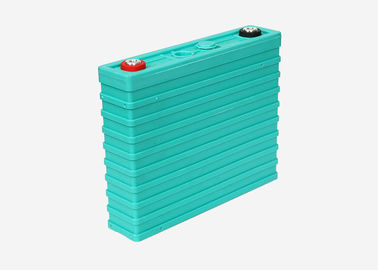

Customized 3.2V 200Ah lithium iron phosphate battery for UPS backup storage with long life cycle GBS-LFP200Ah-B



Good performance under high and low temperature;Good safety performance;Good cycle life time;No pollution during manufacture.




Item Specification Remark
Rated capacity 200Ah 0.2C rate discharge capacity
Minimum capacity 200Ah
Internal impedance ≤0.6mΩ
Nominal voltage 3.2V
Cell weight 6.5kg±0.1kg

Standard discharge

conditions

Constant current 100A
End-of-discharge voltage 2.5V
Standard charge method Constant current 50A
Charge voltage 3.55V
Fast charge method Constant current 200A
Charge voltage 3.55V
Max continuous discharge current 400A
Cycle life 3000 cycles 80% DOD
Operating temperature

Charging ambient

temperature

0~65°C

Discharging ambient

temperature

-20~65°C
Storage temperature -20~65°C
Appearance

Without break,

distortion, contamination,

leakage.
















Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).



(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



(7) Low cost.



(8) No pollution during manufacture and usage.











Matters needing attention



(1) Please check if spare parts are completed when open the package and read the operation manual carefully.



(2) Do not make the battery Short Circuit,do not over charge and discharge.



(3) Please charge the new battery to full capacity before discharge for the first use.

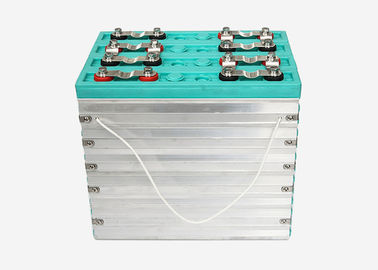

(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.



(5) Checking the voltage of battery, normally it is 12.8V-13.2V.



(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.



(7) Rivet or screw is used for battery connector.



(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.



(9) The charger used should be approved by our company in order to match with our lithium batteries.



(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







Requirement for safety assurance



For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
