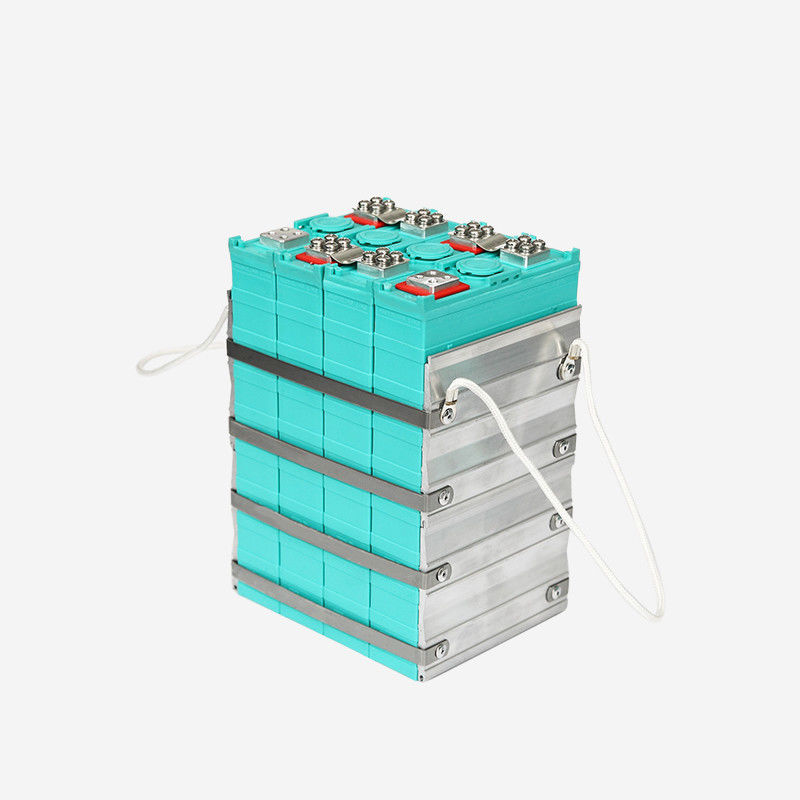

Lithium Ion Car Battery Pack 12V 200Ah , Automotive Lithium Ion Battery Rechargeable

Product Details

Place of Origin: CHINA

Brand Name: GBS

Certification: CE, IEC, UL, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Model Number: GBS-LFP200Ah

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Negotiable

Packaging Details: special carton for dangerous goods

Delivery Time: 3-10 DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1800000 PCS PER YEAR

Get Best Price
Contact Now
Specifications
High Light:

lithium iron phosphate car battery

,

lithium ion battery used in electric cars

Application:
EV, Telecom, Solar Energy,motorcycle, Electric Car
Warranty:
38 Months
Life Cycle:
More Than 2000 Cycles
Payment:
TT,LC
Rated Voltage:
12Volt
Capacity:
200Ah
Application:
EV, Telecom, Solar Energy,motorcycle, Electric Car
Warranty:
38 Months
Life Cycle:
More Than 2000 Cycles
Payment:
TT,LC
Rated Voltage:
12Volt
Capacity:
200Ah
Description
Lithium Ion Car Battery Pack 12V 200Ah , Automotive Lithium Ion Battery Rechargeable

rechargeable lithium battery pack 12V200Ah GBS-LFP200Ah for electric car; lithium ion car battery 200Ah



Features of LiFePO4 battery



  • LiFePO4 battery for Automotive starting. Due to high peak power capacity / long life cycle / light weight /environmental friendly
  • High energy density: the battery delivers double to triple energy compared with lead acid battery of the same volume and mass.
  • Long cycle life: cycle life is five times that of lead acid battery
  • Adaptability to a wide range of temperature: the battery can work at temperature between -20℃ and +65℃.
  • High C-rate: support high charge/discharge rate to meet the requirement for high-current discharge in a short time and quick charging.
  • Environmentally friendly and free from heavy metal.
  • Good performance under high and low temperature;Good safety performance;Good cycle life time;No pollution during manufacture.




Item Specification Remark
Rated capacity 200Ah 0.2C rate discharge capacity
Minimum capacity 200Ah
Internal impedance ≤3.2mΩ
Nominal voltage 12V
Cell weight 22kg±150g

Standard discharge

conditions

Constant current 100A
End-of-discharge voltage 11.2V
Standard charge method Constant current 50A
Charge voltage 14.2V
Fast charge method Constant current 200A
Charge voltage 14.2V
Max continuous discharge current 600A
Cycle life 2000 cycles 80% DOD
Operating temperature

Charging ambient

temperature

0~65°C

Discharging ambient

temperature

-20~65°C
Storage temperature -20~65°C
Appearance

Without break,

distortion, contamination,

leakage.







Item Description Dimensions

L Length 244mm

W Width 142mm

H Height 485mm





Lithium Ion Car Battery Pack 12V 200Ah , Automotive Lithium Ion Battery Rechargeable 0





Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).



(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



(7) Low cost.



(8) No pollution during manufacture and usage.











Matters needing attention



(1) Please check if spare parts are completed when open the package and read the operation manual carefully.



(2) Do not make the battery Short Circuit,do not over charge and discharge.



(3) Please charge the new battery to full capacity before discharge for the first use.



(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.



(5) Checking the voltage of battery, normally it is 12.8V-13.2V.



(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.



(7) Rivet or screw is used for battery connector.



(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.



(9) The charger used should be approved by our company in order to match with our lithium batteries.



(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







Requirement for safety assurance



For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
