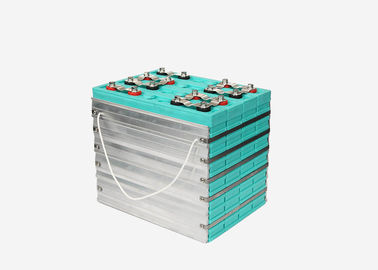

200Ah Lithium Ion Rechargeable Battery Pack For LED Solar Street Light

Product Details

Place of Origin: CHINA

Brand Name: GBS

Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Model Number: GBS-LFP200Ah-B

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Negotiable

Packaging Details: special carton for dangerous goods

Delivery Time: 3-10 DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1800000 PCS PER YEAR

Get Best Price
Contact Now
Specifications
High Light:

led light rechargeable battery

,

lithium ion phosphate battery pack

Application:
Electric Bus, Backup Power
Warranty:
38 Months
Life Cycle:
More Than 3000 Cycles
Payment:
LC, TT
Cell Type:
Lifepo4
Feature:
Large Capability And Long Life Span
Application:
Electric Bus, Backup Power
Warranty:
38 Months
Life Cycle:
More Than 3000 Cycles
Payment:
LC, TT
Cell Type:
Lifepo4
Feature:
Large Capability And Long Life Span
Description
200Ah Lithium Ion Rechargeable Battery Pack For LED Solar Street Light

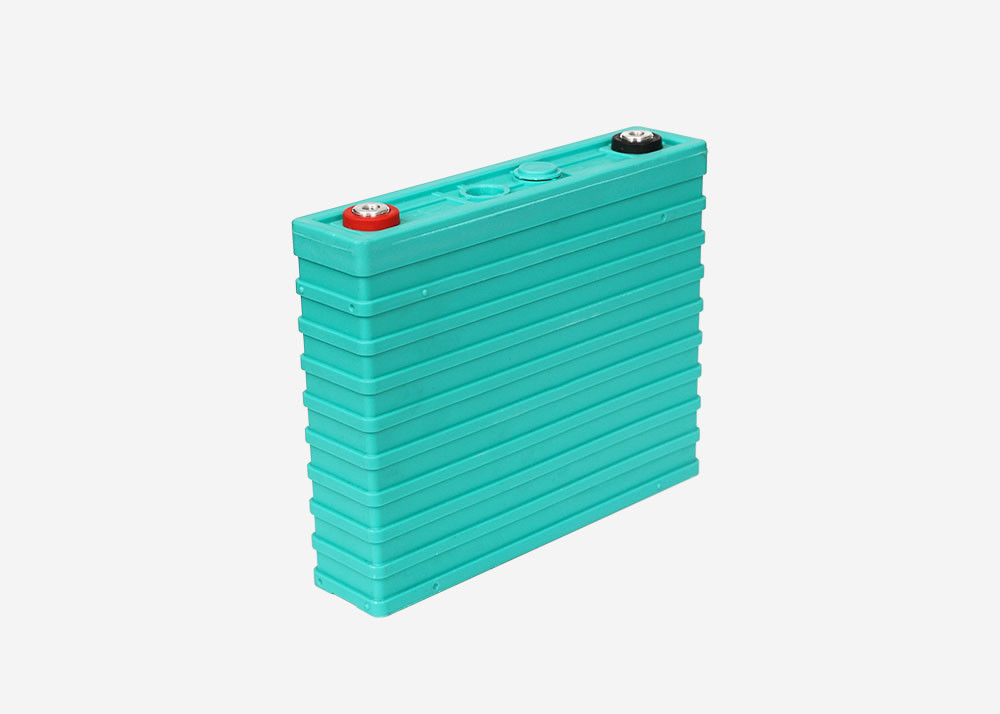

LED solar street light lithium battery 200Ah GBS-LFP200Ah-B



Advantages



1. No memory effects and highly efficient charge.

2. Large capability and long life span.

3. Good performance at high temperature and high temperature resistance.

4. Clean and Green energy, no toxic material contained.

5. Factory price& High quality.

6. Extremely safe, no explosion, no fire under collision.

7. Customized services.





Application

Electric vehicle

Golf cart

Electric motorcycle

Electric boat

Electric forklift

Telecommunication

Distributed Grid Energy Storage system

Mining equipment

Solar energy storage system

Marine

Backup power





200Ah Lithium Ion Rechargeable Battery Pack For LED Solar Street Light 0








Item

Specification

Remark

Rated capacity

200Ah

0.2C rate discharge capacity

Minimum capacity

200Ah

Internal impedance

≤0.6mΩ



Nominal voltage

3.2V



Cell weight

6.5kg±0.1kg



Standard discharge

conditions

Constant current

100A



End-of-discharge voltage

2.5V



Standard charge method

Constant current

50A



Charge voltage

3.55V



Fast charge method

Constant current

200A



Charge voltage

3.55V



Max continuous discharge current

400A



Cycle life

3000 cycles

80% DOD

Operating temperature

Charging ambient

temperature

0~65°C



Discharging ambient

temperature

-20~65°C



Storage temperature

-20~65°C



Appearance

Without break,

distortion, contamination,

leakage.
















Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).



(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



(7) Low cost.



(8) No pollution during manufacture and usage.











Matters needing attention



(1) Please check if spare parts are completed when open the package and read the operation manual carefully.



(2) Do not make the battery Short Circuit,do not over charge and discharge.



(3) Please charge the new battery to full capacity before discharge for the first use.



(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.



(5) Checking the voltage of battery, normally it is 12.8V-13.2V.



(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.



(7) Rivet or screw is used for battery connector.



(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.



(9) The charger used should be approved by our company in order to match with our lithium batteries.



(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







Requirement for safety assurance



For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
