5G telecom lithium ion deep cycle backup storage battery LiFePO4 GBS-LFP100Ah

Product Details

Place of Origin: CHINA

Brand Name: GBS

Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Model Number: GBS-LFP100Ah

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Negotiable

Packaging Details: special carton for special goods

Delivery Time: 3-10 DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1800000 PCS PER YEAR

Get Best Price
Contact Now
Specifications
High Light:

lithium ion battery pack

,

lithium ion deep cycle battery

Application:
EV, Telecom, Solar Energy,motorcycle, UPS, ESS, RV, AGV
Warranty:
38 Months
Life Cycle:
More Than 2000 Cycles
Payment:
TT,LC
Application:
EV, Telecom, Solar Energy,motorcycle, UPS, ESS, RV, AGV
Warranty:
38 Months
Life Cycle:
More Than 2000 Cycles
Payment:
TT,LC
Description

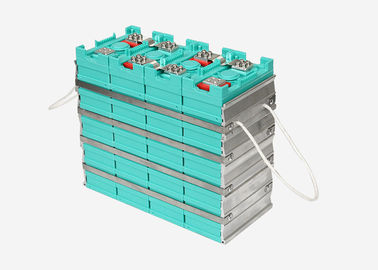

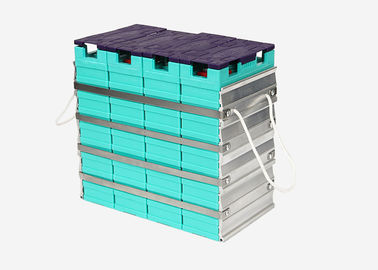

5G telecom lithium ion deep cycle backup storage battery LiFePO4 GBS-LFP100Ah

Hot sale 12 volt lithium battery 100Ah Lithium Ion Battery maintenance free



Specification


Item Specification Remark
Rated capacity 100Ah 0.2C rate discharge capacity
Minimum capacity 100Ah
Internal impedance ≤2.8mΩ
Nominal voltage 12V
Cell weight 12.4kg±200g

Standard discharge

conditions

Constant current 50A
End-of-discharge voltage 11.2V
Standard charge method Constant current 50A
Charge voltage 14.2V
Fast charge method Constant current 100A
Charge voltage 14.2V
Max continuous discharge current 300A
Cycle life 2000 cycles 80% DOD
Operating temperature

Charging ambient

temperature

0~65°C

Discharging ambient

temperature

-20~65°C
Storage temperature -20~65°C
Appearance

Without break,

distortion, contamination,

leakage.







Item Description Dimensions

L Length 276mm

W Width 126mm

H Height 188mm



5G telecom lithium ion deep cycle backup storage battery LiFePO4 GBS-LFP100Ah 0



Basic Performance



1. Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



2. Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



3. Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



4. Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



5. Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).



6. It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



7. Low cost.



8. No pollution during manufacture and usage.





Certifications & Test reports


Applications






Packaging & Delivery



5G telecom lithium ion deep cycle backup storage battery LiFePO4 GBS-LFP100Ah 3675.jpg





Comapny profile



Established in July 2007, Zhejiang GBS Energy Co.,Ltd is a leading company manufacturing large capacity plastic shell lithium iron phosphate battery in China. Our plastic shell insulated lithium battery takes the lead in the industry in the all processes including production, once use, echelon use, recycle, disassembly etc. With two production bases and nearly 300 employees, we have an annual capacity of more than 2GWh.
