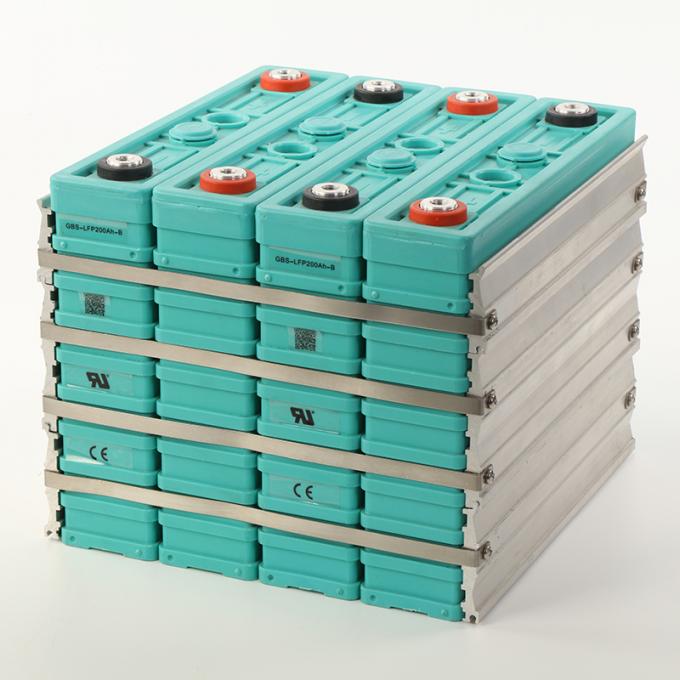

12.8v lithium iron phosphate Battery Cell 200Ah lithium battery for enenrgy storage system

12.8v lithium iron phosphate Battery Cell 200Ah lithium battery for enenrgy storage system

Product Details:

Place of Origin: CHINA
Brand Name: GBS
Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001
Model Number: GBS-LFP200Ah-B

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: special carton for dangerous goods
Delivery Time: 3-10 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS PER YEAR
Get Best Price Contact Now

Detail Information

Application: Electric Bus, Backup Power, Marine Warranty: 38 Months
Payment: LC, TT Etc Cycle Life: ≥2000 Cycles

Product Description

12.8v lithium iron phosphate Battery Cell 200Ah lithium battery for enenrgy storage system 0



Specification




Item Specification Remark
Rated capacity 200Ah 0.5C rate discharge capacity
Minimum capacity 200Ah
Internal impedance ≤2.5mΩ
Nominal voltage 12V
Cell weight 21kg±150g

Standard discharge

conditions

Constant current 100A
End-of-discharge voltage 11.2V
Standard charge method Constant current 100A
Charge voltage 14.6V
Fast charge method Constant current 200A
Charge voltage 14.6V
Max continuous discharge current 600A
Cycle life ≥2000 cycles 80% DOD
Operating temperature

Charging ambient

temperature

0~45°C

Discharging ambient

temperature

-25~65°C
Storage temperature 0~45°C
Appearance

Without break,

distortion, contamination,

leakage.







Item Description Dimensions

L Length 288mm

W Width 290mm

H Height 237mm





12.8v lithium iron phosphate Battery Cell 200Ah lithium battery for enenrgy storage system 1





Basic Performance



1. Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



2. Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



3. Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



4. Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



5. Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).



6. It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



7. Low cost.



8. No pollution during manufacture and usage.





Certifications & Test reports


Applications






Packaging & Delivery



12.8v lithium iron phosphate Battery Cell 200Ah lithium battery for enenrgy storage system 4675.jpg





Comapny profile



Established in July 2007, Zhejiang GBS Energy Co.,Ltd is a leading company manufacturing large capacity plastic shell lithium iron phosphate battery in China. Our plastic shell insulated lithium battery takes the lead in the industry in the all processes including production, once use, echelon use, recycle, disassembly etc. With two production bases and nearly 300 employees, we have an annual capacity of more than 2GWh.
