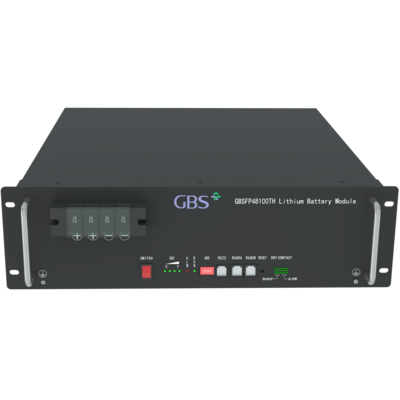

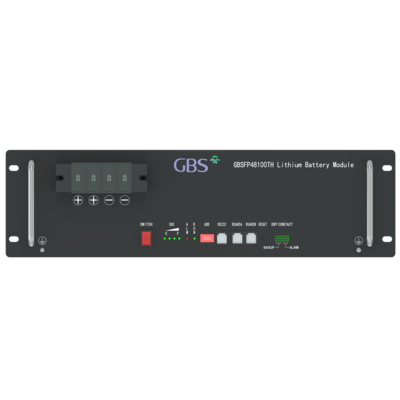

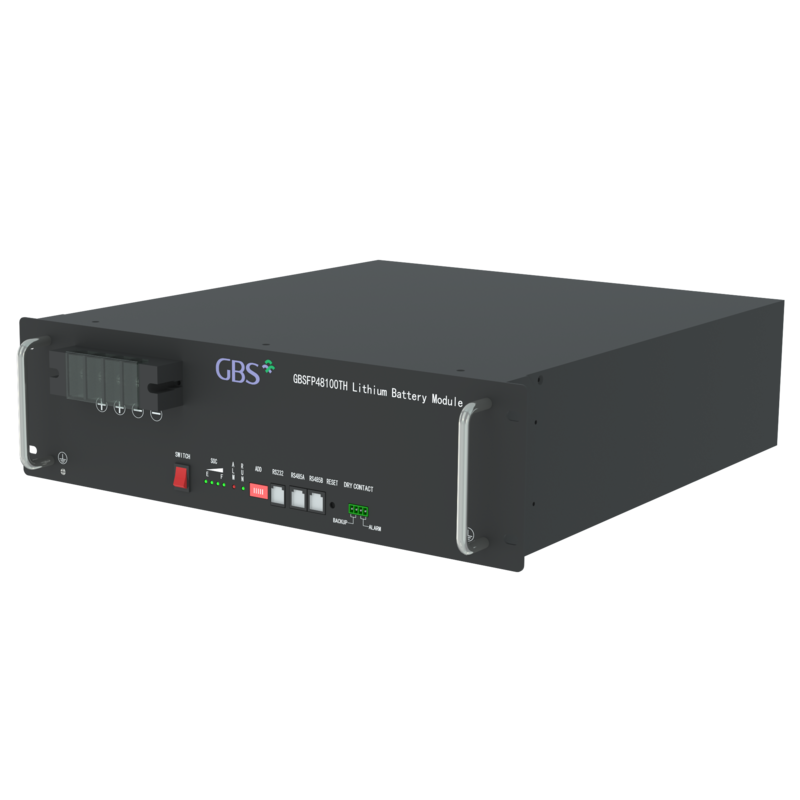

3U Cabnet Rechargeable Lifepo4 Battery Module 48V 100Ah For Telecommunication

Detail Information

Place of Origin:

CHINA

Certification:

CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Packaging Details:

Dangerous goods packaged in wooden boxes

Supply Ability:

2000000 PCS PER YEAR

Highlight:

Product Description

3U Cabinet Rechargeable LiFePO4 Battery Module 48V 100Ah For Telecommunication

Basic Performance

Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
Good performance under high temperature, it could work under 65°C temperature. The battery structure is safe and reliable.
Good performance under low temperature: discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.
Excellent safety performance: Features a one-way safety valve that releases gas and heat when internal pressure becomes too high, preventing burning and explosion.
Long cycle life: Discharge capacity remains over 80% after 2000 cycles at 80% depth of discharge (DOD).
Fast charging capability: Charges to 80% within 20 minutes and fully charges in 2-3 hours.
Cost-effective solution with low maintenance requirements.
Environmentally friendly: No pollution during manufacture or usage.

Installation & Usage Guidelines

Verify all components are present upon unpacking and carefully review the operation manual.
Avoid short circuits, overcharging, and over-discharging the battery.
For first use, fully charge the battery before initial discharge.
Do not remove the factory-installed plates and strips from the battery pack.
Standard voltage range: 12.8V-13.2V (verify before installation).
Always use the Battery Management System (BMS) to protect individual cells from overcharge/discharge.
Battery connectors use rivets or screws for secure attachment.
Use copper components for inter-battery connections, secured with hydraulic pressure pliers (screw-fixed connections available upon request).
Only use chargers approved by our company specifically designed for our lithium batteries.
Failure to follow these guidelines may void warranty coverage and reduce battery lifespan.

Safety Assurance Requirements

For optimal safety and performance, please consult with our technical team regarding:
