Household Energy Storage System
Created with Pixso.

10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL

10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL

Brand Name: GBS
MOQ: 1
Price: $2,300-2,630
Detail Information
Place of Origin:
Zhejiang, China
Battery Type:
LiFePO4
Output Power Range:
10~20 KWh
System Type:
Rack-mounted
Battery Voltage And Capacity:
51.2V/(100xN)Ah
Output Voltage:
230Vac+-5%
Output Efficiency:
90%
AC Output Voltage:
230Vac
Maximum PV OCV:
145VDC
MPPT Working Voltage:
60~130VDC
Maximum PV Charging Current:
80A
Maximum AC Charging Current:
60A
Controller Type:
MPPT
Power Source:
Solar Panel
Highlight:

51.2V LifePO4 solar battery

,

10KWh household energy storage

,

UL certified rechargeable battery

Product Description

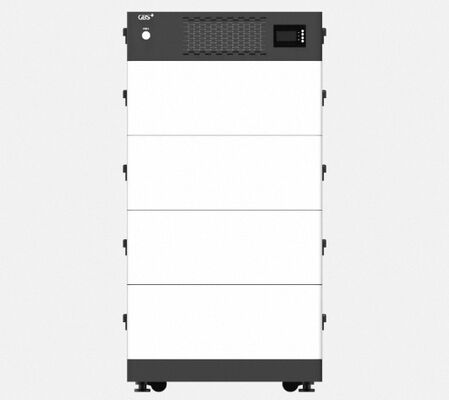

10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL
10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL 0 10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL 1 10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL 2 10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL 3 10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL 4

This system primarily meets the energy requirements of household users, providing intelligent and convenient integrated household energy storage solutions that seamlessly combine energy storage battery systems, photovoltaic power generation systems, and grid electricity.

Ideal for urban and rural areas with high electricity costs, unstable grid operation, frequent power outages, and locations without grid coverage requiring reliable household electricity and energy security.

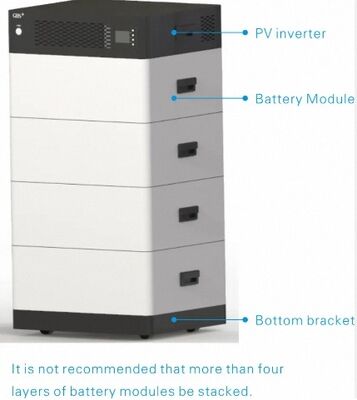

The system consists of a photovoltaic inverter and multiple stackable battery modules. The number of battery modules can be selected according to user power requirements. Additionally, parallel capacity expansion can be implemented between systems (supporting up to three parallel expansions) to accommodate greater power demands.

Technical Specifications
Parameter Specification
Storage Energy 5.12KWh x N
Battery Voltage and Capacity 51.2V / (100 x N)Ah
Output Power 5KW
Output Voltage 230Vac ±5%
Output Efficiency 90%
AC Output Voltage 230Vac
Maximum PV OCV 145VDC
MPPT Working Voltage 60~130VDC
Maximum PV Charging Current 80A
Maximum AC Charging Current 60A
Working Temperature Charge: 0°C~55°C; Discharge: -10°C~55°C
Storage Temperature -15°C~60°C
Relative Humidity 5%~95%
Battery Module Voltage and Capacity 51.2V 100Ah
Battery Module Weight 55Kg
Battery Module Size 600 x 480 x 230mm
Inverter Weight 20Kg
Inverter Size 600 x 480 x 150mm
Bottom Bracket Weight 10Kg
Bottom Bracket Size 600 x 480 x 109mm
10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL 5 10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL 6 10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL 7
Company Profile
10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL 8 10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL 9 10KWh 15KWh 20KWh 51.2V 80A Solar Energy Storage System Rechargeable LifePO4 Battery with CE UL 10

ZHEJIANG GBS ENERGY CO., LTD.

Zhejiang GBS is a national high-tech enterprise dedicated to the research, development, and manufacturing of lithium iron phosphate batteries and lithium battery integration systems. Established in July 2007, the company operates a digital demonstration factory in Zhejiang province with two production bases boasting an annual production capacity of 2 GWh.

The company's long-term purpose is "innovation to improve quality, quality awakens the concept," pursuing "ideas to improve the environment, and the environment benefits mankind." GBS comprehensively promotes the construction of the corporate "Goose Team" culture and has established a "lithium battery research and development center" and "academician workstation" for professional development of lithium battery system products.

GBS has obtained authorization for more than 70 patents covering inventions, utility models, and appearances. The company holds UL, TUV, CE, IEC and other international certifications and is listed in the "Automotive Power Battery Industry Specification Conditions" enterprise catalog. GBS has passed explosion-proof safety certification for mining products, TLC certification for telecommunication products, and CCS certification for marine products, making it one of China's first lithium battery manufacturers with qualification certificates across electric vehicles, mining, telecommunication, and marine applications.
