400AH High Energy Lithium Iron Phosphate Battery Deep Cycle Rechargeable

Minimum Order Quantity : 4PCS Price : USD300
Packaging Details : Special carton for dangerous goods Delivery Time : 7 work days
Payment Terms : T/T, L/C Supply Ability : 3000000PCS PER YEAR
Place of Origin: Zhiejiang, China Brand Name: GBS
Certification: CE,TUV,UL,IEC,ISO9001,ISO14001,OHSAS18001 Model Number: GBS-LFP400Ah

Detail Information

Material: LiFePO4 Dimension: 312x73x365mm
Warranty: 2 Years Cycle Life: 3000 Cycles
Feature: Fast Charge/discharge With Large Current Use: Telecommunication /Distributed Grid Energy Storage System
Connector: Busbar, Lug, Screw, Bolt
High Light:

lithium iron phosphate battery pack

,

lithium iron phosphate deep cycle battery

Product Description

400AH High Energy Lithium Iron Phosphate Battery Deep Cycle Rechargeable





Advantage of lifepo4 battery:

1: long cyclelife
2: low weight small size
3: fast charge/discharge with large current
4: high temperature resistant
5 : large capacity
6 : no memory effect
7 : enviroment-friendly





Applications:

Electric vehicle
Golf cart
Electric motorcycle
Electric boat
Electric forklift
Telecommunication
Distributed Grid Energy Storage system
Mining equipment
Solar energy storage system
Marine
Backup power
Household energy storage system

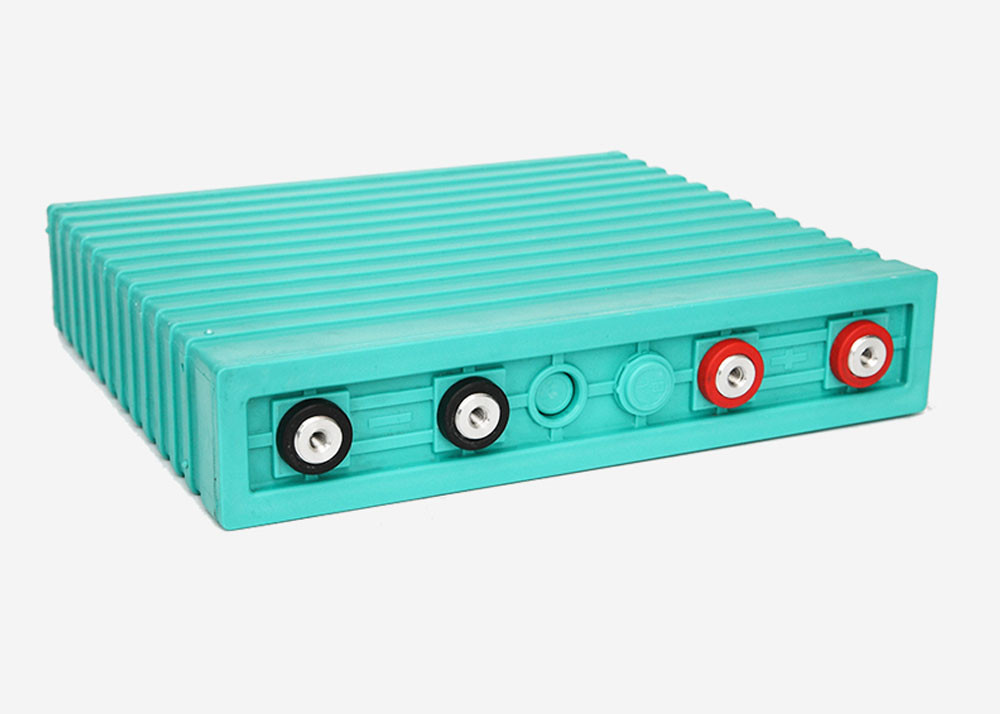

Cell Picture:



400AH High Energy Lithium Iron Phosphate Battery Deep Cycle Rechargeable 0





Cell Dimension:

400AH High Energy Lithium Iron Phosphate Battery Deep Cycle Rechargeable 1





Technical Specification



Item Specification
Model GBS-LFP400Ah-A
Pole screw hole 1 hole
Rated capacity 400Ah
Nominal voltage 3.2V
Internal impedance ≤0.35mΩ
Standard charge rate 0.25C
Fast charge rate 1.0C
End of charge voltage 3.65V
Standard discharge rate 0.5C
Max discharge rate 1.0C
Instantaneous discharge rate 3C ( 10s )
End of discharge voltage 2.8V
Working temperature -20~65℃
Cycle life 3000 cycles ( 0.5C )
Weight 12.9±0.5kg
Dimension 362×73×310±2mm
Shell PP





Basic Performance

(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

(3) Good performance under low temperature.discharge capacity decreases to over 90% under 0°C and discharge capacity decreases to over 70% under -20°C.

(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

(6) It can fast charging. It could be charged to 80% within 0.5h and charged full with 2-3h.

(7) No pollution during manufacture and usage.





Requirement for safety assurance

For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium ioncell advance. And consult about the high rate current, rapid charge and special application in the same way.



400AH High Energy Lithium Iron Phosphate Battery Deep Cycle Rechargeable 2

400AH High Energy Lithium Iron Phosphate Battery Deep Cycle Rechargeable 3

400AH High Energy Lithium Iron Phosphate Battery Deep Cycle Rechargeable 4



  • When will you ship the products when payment is done?

Trial order is 3-7 work days,formal order 7-20 work days.





  • Is the sample available?

Yes, but it is charged.



  • Can I get a lower price if I order large quantities?

Yes.



  • Are you a factory?

Yes, we are the manufacturer of GBS LiFePO4 battery.



  • How you shipping the goods and how long it will take?

Normally by sea. Shipping time depends on destination port. But we can also make shipment by UPS and Fedex for trial order.



  • What is warranty?

2 years.



  • Why does it seem your price little higher than other factories?

We always supply High-Quality products & High-Stand service to our clients.
