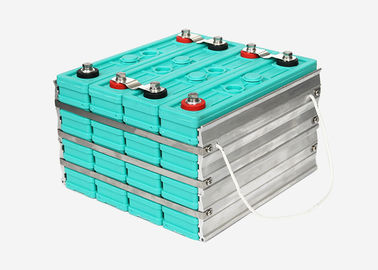

Long Life Cycle Lithium Ion Battery 12V 160Ah High Temperature Resistant

Long Life Cycle Lithium Ion Battery 12V 160Ah High Temperature Resistant

  • High Light

    lithium ion rechargeable battery

    ,

    lithium ion deep cycle battery

  • Application
    EV, Telecom, Solar Energy
  • Warranty
    38 Months
  • Life Cycle
    More Than 2000 Cycles
  • Payment
    TT,LC
  • Capacity
    160Ah
  • Voltage
    12V
  • Place of Origin
    CHINA
  • Brand Name
    GBS
  • Certification
    CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001
  • Model Number
    GBS-LFP160Ah
  • Minimum Order Quantity
    1 PCS
  • Price
    Negotiable
  • Packaging Details
    special carton for dangerous goods
  • Delivery Time
    3-10 DAYS
  • Payment Terms
    L/C, D/A, D/P, T/T, MoneyGram
  • Supply Ability
    1800000 PCS PER YEAR

Long Life Cycle Lithium Ion Battery 12V 160Ah High Temperature Resistant

  • Long Life Cycle Lithium Ion Battery 12V 160Ah High Temperature Resistant
  • Long Life Cycle Lithium Ion Battery 12V 160Ah High Temperature Resistant

long life cycle lithium ion battery 12V160Ah GBS-LFP160Ah; lithium ion battery





Advantage of lifepo4 battery:

  1. long cycle life
  2. low weight ,small size
  3. fast charge/discharge with large current
  4. high temperature resistant
  5. large capacity
  6. no memory effect
  7. enviroment-friendly





Item

Specification

Remark

 Rated capacity

160Ah

0.2C rate discharge capacity

 Minimum capacity

160Ah

 Internal impedance

≤2.5mΩ



 Nominal voltage

3.2V



 Cell weight

210±0.15KG



 Standard discharge

 conditions

 Constant current

80A



 End-of-discharge voltage

11.2V



 Standard charge method

 Constant current

40A



 Charge voltage

14.2V



 Fast charge method

 Constant current

160A



 Charge voltage

14.2V



 Max continuous discharge current

480A



 Cycle life

2000 cycles

80% DOD

 Operating temperature

 Charging ambient

 temperature

0~65°C



 Discharging ambient

 temperature

-20~65°C



 Storage temperature

-20~65°C



 Appearance

 Without break,

 distortion, contamination,

 leakage

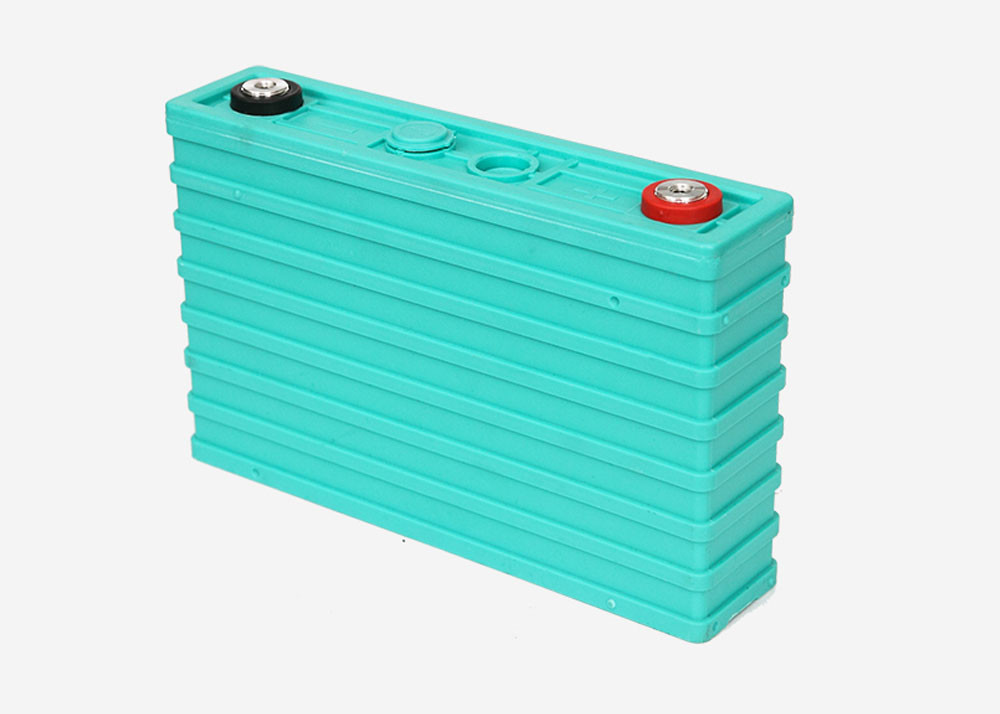

Cell Size



Item   Description                 Dimensions

L         Length                      288mm

W         Width                      290mm

H         Height                      181mm
















Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).



(6)  It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



(7)  Low cost.



(8)  No pollution during manufacture and usage.











Matters needing attention



(1)  Please check if spare parts are completed when open the package and read the operation manual carefully.



(2)  Do not make the battery Short Circuit,do not over charge and discharge.



(3)  Please charge the new battery to full capacity before discharge for the first use.



(4)  The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.



(5)  Checking the voltage of battery, normally it is 3.2V-3.3V.



(6)  Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.



(7)  Rivet or screw is used for battery connector.



(8)  Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.



(9)  The charger used should be approved by our company in order to match with our lithium batteries.



(10)  It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







Requirement for safety assurance



For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
