36v 60ah Rechargeable Lithium Battery Pack Size Customized Electric Motorcycle Lifepo4
Contact Person : Wing Lan
Phone Number : 86-15824233011
WhatsApp : +8615824233011
|Minimum Order Quantity :||1 pcs||Price :||Negotiable|
|Packaging Details :||special carton for dangerous goods||Delivery Time :||3-10 DAYS|
|Payment Terms :||L/C, D/A, D/P, T/T, Western Union, MoneyGram||Supply Ability :||1800000 PCS PER YEAR|
|Place of Origin:||CHINA||Brand Name:||GBS|
|Certification:||CE, UL, ITEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001||Model Number:||GBS-LFP200Ah|
|Application:||EV, Telecom, Solar Energy,motorcycle||Warranty:||38 Months|
|Life Cycle:||More Than 2000 Cycles||Payment:||TT,LC|
lithium ion rechargeable battery,
lithium ion deep cycle battery

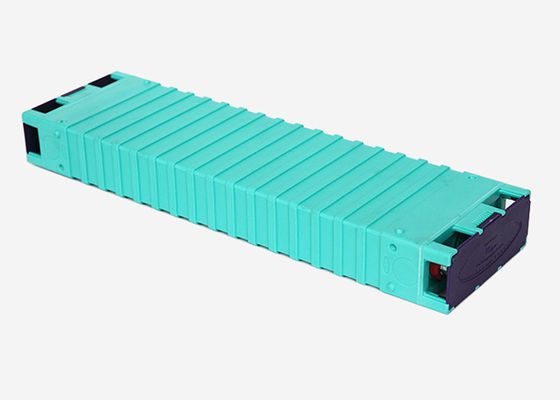

200Ah lithium battery for electric vehicle, electric bus, truck, golf cart etc GBS-LFP200Ah
Good performance under high and low temperature;Good safety performance;Good cycle life time;No pollution during manufacture.
a. Low self-discharge and good discharge performance at low-temperature.
b. Strong charging acceptance and quick-charging capability.
c. Strong over-discharge resistance and charge retention.
|Rated capacity||200Ah||0.2C rate discharge capacity|
|Standard charge method||Constant current||50A|
|Fast charge method||Constant current||200A|
|Max continuous discharge current||600A|
|Cycle life||2000 cycles||80% DOD|
Item Description Dimensions
L Length 244mm
W Width 142mm
H Height 485mm
(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.
(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.
(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).
(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
(7) Low cost.
(8) No pollution during manufacture and usage.
Matters needing attention
(1) Please check if spare parts are completed when open the package and read the operation manual carefully.
(2) Do not make the battery Short Circuit,do not over charge and discharge.
(3) Please charge the new battery to full capacity before discharge for the first use.
(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.
(5) Checking the voltage of battery, normally it is 12.8V-13.2V.
(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.
(7) Rivet or screw is used for battery connector.
(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.
(9) The charger used should be approved by our company in order to match with our lithium batteries.
(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.
Requirement for safety assurance
For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
