    40Ah Solar Energy Rechargeable Lithium Battery Pack / Lifepo4 Prismatic Cells

    Product Details:

    Place of Origin: China
    Brand Name: Gbsystem
    Certification: CE, TUV,PONY,MA,ISO9001, ISO14001
    Model Number: GBS-LFP40Ah

    Payment & Shipping Terms:

    Minimum Order Quantity: 4pcs
    Price: Negotiable
    Packaging Details: special carton for dangerous goods
    Delivery Time: 10 work days
    Payment Terms: D/P, L/C, T/T
    Supply Ability: 3000000pcs/year
    Get Best Price Contact Now

    Detail Information

    Item: Li-ion Application:: Electric Sprayer, Solar Systems, Garden Lighting, Sound Systems, UPS
    Capacity: 40Ah Life Time:: 2000 Cycles
    High Light:

    lithium ion rechargeable battery

    ,

    lithium ion deep cycle battery

    Product Description

    40Ah Solar Energy Rechargeable Lithium Battery Pack / Lifepo4 Prismatic Cells

    Lithium Ion Battery 40Ah for solar energy


    Feature:

    • long service life, large capacity and good impact resistance.
    • self discharge at low temperature and good discharge performance
    • Strong charge acceptance and fast charging capability.
    • Strong over discharge resistance and charge retention.



    ItemSpecificationRemark
    Rated capacity40Ah0.2C rate discharge capacity
    Minimum capacity40Ah
    Internal impedance≤1.8mΩ
    Nominal voltage3.2V
    weight1.4±0.1KG

    Standard discharge
    conditions

    Constant current4~20A
    End-of-charge voltage2.5V

    Standard charge
    method

    Constant current4~12A
    Charge voltage3.55V
    Fast charge methodConstant current40A
    Charge voltage3.55V
    Max continuous discharge current120A
    Cycle life3000 cycles80% DOD
    Operating temperature

    Charging ambient
    temperature

    0~45°C

    Discharging ambient
    temperature

    -25~65°C
    Storage temperature0~45°C
    Appearance

    Without break,
    distortion, contamination,
    leakage.

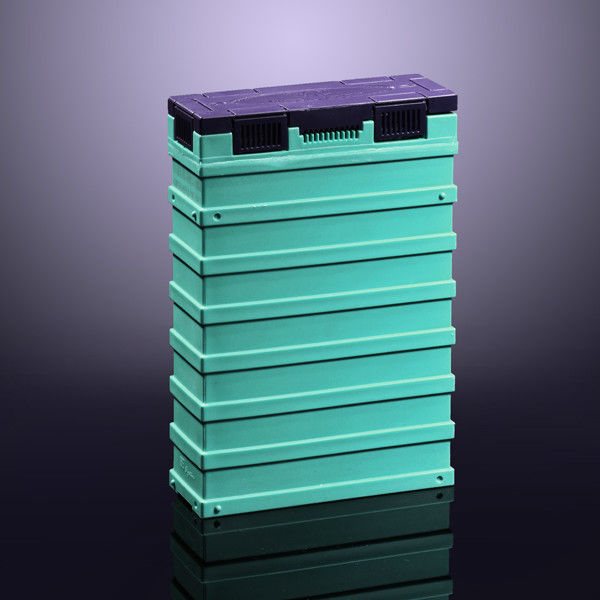

    40Ah Solar Energy Rechargeable Lithium Battery Pack / Lifepo4 Prismatic Cells 0




    Basic Performance
    (1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
    (2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.
    (3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.
    (4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
    (5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).
    (6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
    (7) Low cost.
    (8) No pollution during manufacture and usage.


    Matters needing attention
    (1) Please check if spare parts are completed when open the package and read the operation manual carefully.
    (2) Do not make the battery Short Circuit,do not over charge and discharge.
    (3) Please charge the new battery to full capacity before discharge for the first use.
    (4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.
    (5) Checking the voltage of battery, normally it is 3.2V-3.3V.
    (6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.
    (7) Rivet or screw is used for battery connector.
    (8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.


    (9) The charger used should be approved by our company in order to match with our lithium batteries.
    (10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.

    Requirement for safety assurance
    For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
    Service line: +86-400-884-7799
