Product Details
Place of Origin: CHINA
Brand Name: GBS
Certification: CE, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001
Model Number: GBS-LFP60Ah
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: special carton for dangerous goods
Delivery Time: 10 days
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS PER YEAR
Application: |
EV, Telecom, Solar Energy,motorcycle, RV, Electric Car |
Warranty: |
38 Months |
Life Cycle: |
More Than 2000 Times |
Payment: |
TT,LC |
Voltage: |
12 Volt 60Ah |
Application: |
EV, Telecom, Solar Energy,motorcycle, RV, Electric Car |
Warranty: |
38 Months |
Life Cycle: |
More Than 2000 Times |
Payment: |
TT,LC |
Voltage: |
12 Volt 60Ah |

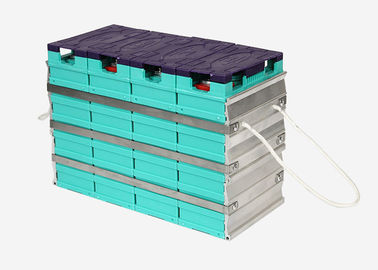

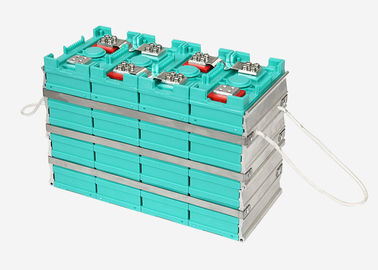

Deep cycle battery Lithium iron phosphate 12 Volt 60Ah battery for electric cars GBS-LFP60Ah
Features of LiFePO4 battery
High energy density: the battery delivers double to triple energy compared with lead acid battery of the same volume and mass.
Long cycle life: cycle life is five times that of lead acid battery
Adaptability to a wide range of temperature: the battery can work at temperature between -20℃ and +65℃.
High C-rate: support high charge/discharge rate to meet the requirement for high-current discharge in a short time and quick charging.
Environmentally friendly and free from heavy metal.
Good performance under high and low temperature;Good safety performance;Good cycle life time;No pollution during manufacture.
Item | Specification | Remark | ||
Rated capacity | 60Ah | 0.2C rate discharge capacity | ||
Minimum capacity | 60Ah | |||
Internal impedance | ≤6.0mΩ | |||
Nominal voltage | 12V | |||
Cell weight | 8.6kg±100g | |||
Standard discharge conditions |
Constant current | 30A | ||
End-of-discharge voltage | 11.2V | |||
Standard charge method | Constant current | 15A | ||
Charge voltage | 14.2V | |||
Fast charge method | Constant current | 60A | ||
Charge voltage | 14.2V | |||
Max continuous discharge current | 180A | |||
Cycle life | 2000 cycles | 80% DOD | ||
Operating temperature |
Charging ambient temperature |
0~65°C | ||
Discharging ambient temperature |
-20~65°C | |||
Storage temperature | -20~65°C | |||
Appearance |
Without break, distortion, contamination, leakage. |
Item Description Dimensions
L Length 276mm
W Width 126mm
H Height 188mm
Basic Performance
(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.
(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.
(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).
(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
(7) Low cost.
(8) No pollution during manufacture and usage.
Matters needing attention
(1) Please check if spare parts are completed when open the package and read the operation manual carefully.
(2) Do not make the battery Short Circuit,do not over charge and discharge.
(3) Please charge the new battery to full capacity before discharge for the first use.
(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.
(5) Checking the voltage of battery, normally it is 12.8V-13.2V.
(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.
(7) Rivet or screw is used for battery connector.
(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.
(9) The charger used should be approved by our company in order to match with our lithium batteries.
(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.
Requirement for safety assurance
For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
