Product Details
Place of Origin: Zhejiang, China
Brand Name: GBS
Certification: CE,TUV,UL,IEC,ISO9001,ISO14001,OHSAS18001
Model Number: GBS-LFP200Ah-B
Payment & Shipping Terms
Minimum Order Quantity: 1PC
Price: Negotiable
Packaging Details: Standard Packaging
Delivery Time: 7 work days
Payment Terms: T/T
Material: |
LiFePO4 |
Dimension: |
290x66x238mm |
Warranty: |
2 Years |
Application:: |
Electric Sprayer, Solar Systems, Garden Lighting, Sound Systems, UPS |
Material: |
LiFePO4 |
Dimension: |
290x66x238mm |
Warranty: |
2 Years |
Application:: |
Electric Sprayer, Solar Systems, Garden Lighting, Sound Systems, UPS |

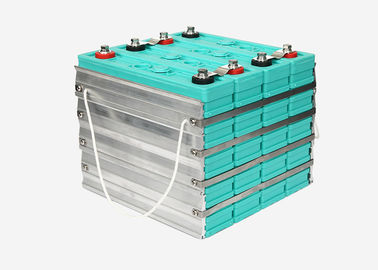

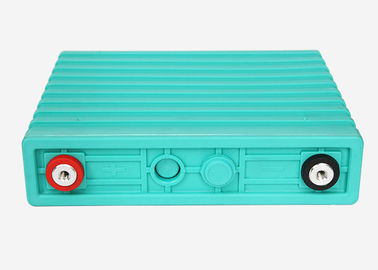

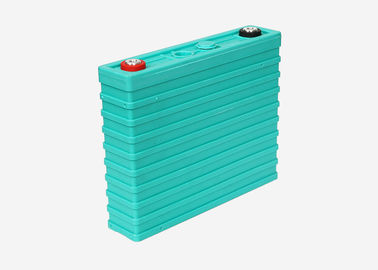

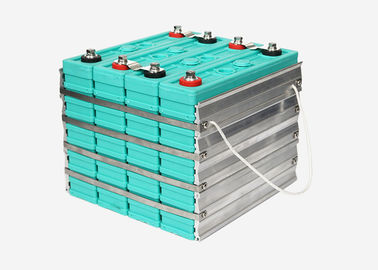

pp plastic shell lithium iron phosphate core battery
Specifications
Good performance under high and low temperature;
Good safety performance;
Good cycle life time;
No pollution during manufacture.
Our characteristics:
Intelligent Production Line
Automatic Warehousing System
Clear Visual Management
Standardized Management Certifications
Research and Development Innovation
Research and Development Capability
Cell Dimension:
Specification of battery cell
| Item | Specification | Remark | ||
| 4.1 Rated capacity | 200Ah | 0.33C rate discharge capacity | ||
| 4.2 Minimum capacity | 200Ah | |||
| 4.3 Internal impedance | ≤0.6mΩ | |||
| 4.4 Nominal voltage | 3.2V | |||
| 4.5 Cell weight | 6.5±0.1KG | |||
| 4.6 Standard discharge conditions | Constant current | 100A | ||
| End-of-charge voltage | 2.8V | |||
|
4.7 Standard charge method |
Constant current | 50A | ||
| Charge voltage | 3.65V | |||
| 4.8 Fast charge method | Constant current | 200A | ||
| Charge voltage | 3.65V | |||
| 4.9 Max continuous discharge current | 600A | |||
| 4.10 Pulse discharge current at 10 sec | 2000A | |||
| 4.11 Self-discharge | ≤3% per month | |||
| 4.12 Cycle life(0.5C) | 3000 cycles | 80% DOD(25±2℃) | ||
| 4.13 Operating temperature |
Charging ambient temperature |
0~65℃ | ||
|
Discharging ambient temperature |
-20~65℃ | |||
| Storage temperature | -20~65℃ | |||
| 4.14 Appearance | Without break, distortion, contamination, leakage. | |||
| Application |
| Electric vehicle |
| Golf cart |
| Electric motorcycle |
| Electric boat |
| Electric forklift |
| Telecommunication |
| Distributed Grid Energy Storage system |
| Mining equipment |
| Solar energy storage system |
| Marine |
| Backup power |
Basic Performance
(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.
(3) Good performance under low temperature.discharge capacity decreases to over 90% under 0°C and discharge capacity decreases to over 70% under -20°C.
(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).
(6) It can fast charging. It could be charged to 80% within 0.5h and charged full with 2-3h.
(7) No pollution during manufacture and usage.
(1) Please check if spare parts are completed when open the package and read the operation manual carefully.
(2) Do not make the battery Short Circuit,do not over charge and discharge.
(3) Please charge the new battery to full capacity before discharge for the first use.
(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using
the battery.
(5) Checking the voltage of battery, normally it is 3.2V-3.3V.
(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.
(7) Rivet or screw is used for battery connector.
(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevant connection which fixed with screws.
(9) The charger used should be approved by our company in order to match with our lithium batteries.
(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according
to the above. It won’t be within our company warranty.
Requirement for safety assurance
For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
