Deep Cycle Lithium Iron Phosphate Battery 160Ah For Recreational Vehicle Battery

China Deep Cycle Lithium Iron Phosphate Battery 160Ah For Recreational Vehicle Battery supplier
Deep Cycle Lithium Iron Phosphate Battery 160Ah For Recreational Vehicle Battery supplier Deep Cycle Lithium Iron Phosphate Battery 160Ah For Recreational Vehicle Battery supplier

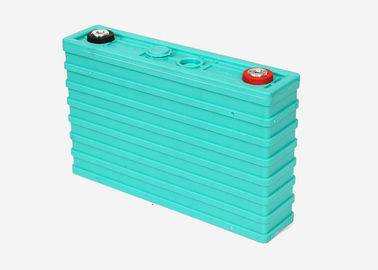

Large Image :  Deep Cycle Lithium Iron Phosphate Battery 160Ah For Recreational Vehicle Battery

Product Details:

Place of Origin: CHINA
Brand Name: GBS
Certification: CE, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001
Model Number: GBS-LFP160Ah

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: special carton for dangerous goods
Delivery Time: 3-10 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS PER YEAR
Contact Now
Detailed Product Description
Application: EV, Telecom, Solar Energy, UPS, RV Warranty: 38 Months
Life Cycle: More Than 3000 Cycles Dimension: 290x66x181mm
Material: LiFePO4

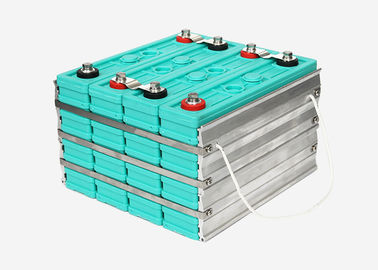

deep cycle 160Ah lithium battery for Recreational Vehicle GBS-LFP160Ah



Specifications

Good performance under high and low temperature;

Good safety performance;

Good cycle life time;

No pollution during manufacture.





Our characteristics:



Intelligent Production Line



Automatic Warehousing System



Clear Visual Management



Standardized Management Certifications



Research and Development Innovation



Research and Development Capability



Application
Electric vehicle
Golf cart
Electric motorcycle
Electric boat
Electric forklift
Telecommunication
Distributed Grid Energy Storage system
Mining equipment
Solar energy storage system
Marine
Backup power







Cell Dimension:



Deep Cycle Lithium Iron Phosphate Battery 160Ah For Recreational Vehicle Battery





Specification of battery cell



Item Specification Remark
4.1 Rated capacity 160Ah 0.33C rate discharge capacity
4.2 Minimum capacity 160Ah
4.3 Internal impedance ≤0.6mΩ
4.4 Nominal voltage 3.2V
4.5 Cell weight 4.8±0.15KG

4.6 Standard discharge

conditions

Constant current 80A
End-of-charge voltage 2.8V

4.7 Standard charge

method

Constant current 40A
Charge voltage 3.65V
4.8 Fast charge method Constant current 160A
Charge voltage 3.65V
4.9 Max continuous discharge current 480A
4.10 Cycle life(0.5C) 3000 cycles 80% DOD
4.11 Operating temperature

Charging ambient

temperature

0~65℃

Discharging ambient

temperature

-20~65℃
Storage temperature -20~65℃
4.12 Appearance Without break, distortion, contamination, leakage.











Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

(3) Good performance under low temperature.discharge capacity decreases to over 90% under 0°C and discharge capacity decreases to over 70% under -20°C.

(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell (80%DOD).

(6) It can fast charging. It could be charged to 80% within 0.5h and charged full with 2-3h.

(7) No pollution during manufacture and usage.



Matters Needing Attention

(1) Please check if spare parts are completed when open the package and read the operation manual carefully.

(2) Do not make the battery Short Circuit,do not over charge and discharge.

(3) Please charge the new battery to full capacity before discharge for the first use.

(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.

(5) Checking the voltage of battery, normally it is 3.2V-3.3V.

(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.

(7) Rivet or screw is used for battery connector.

(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.

(9) The charger used should be approved by our company in order to match with our lithium batteries.

(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above. It won’t be within our company warranty.





Requirement for safety assurance

For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
