Product Details
Place of Origin: CHINA
Brand Name: GBS
Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001
Model Number: GBS-LFP200Ah-B
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: special carton for dangerous goods
Delivery Time: 3-10 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS PER YEAR
Application: |
Electric Bus, Backup Power, UPS, Forklift |
Warranty: |
38 Months |
Life Cycle: |
More Than 3000 Times |
Payment: |
LC, TT |
Application: |
Electric Bus, Backup Power, UPS, Forklift |
Warranty: |
38 Months |
Life Cycle: |
More Than 3000 Times |
Payment: |
LC, TT |

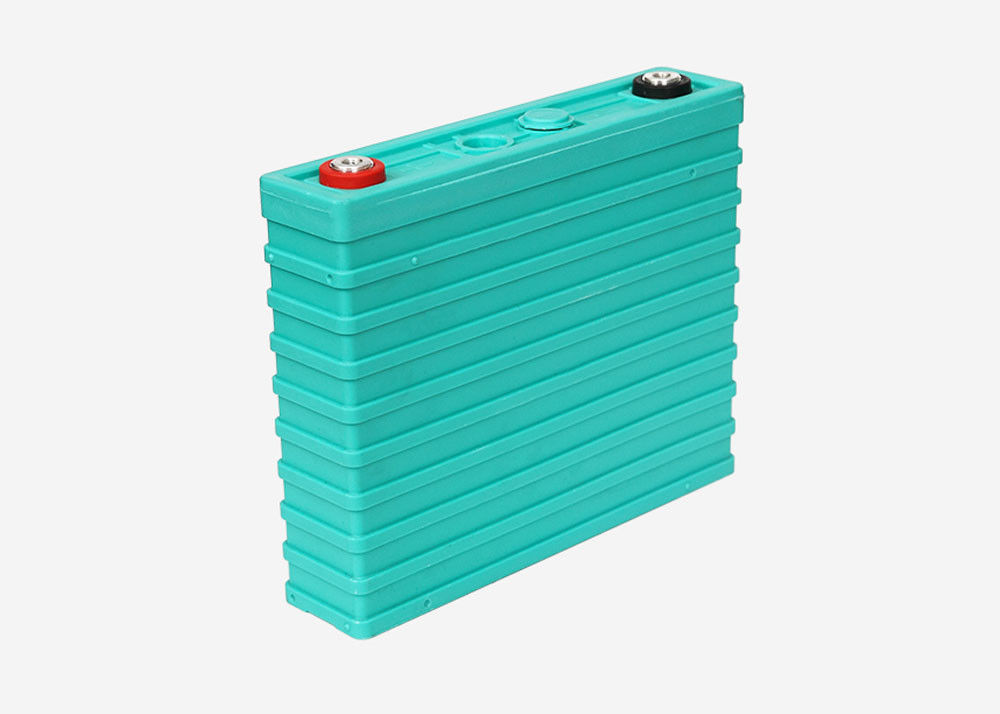

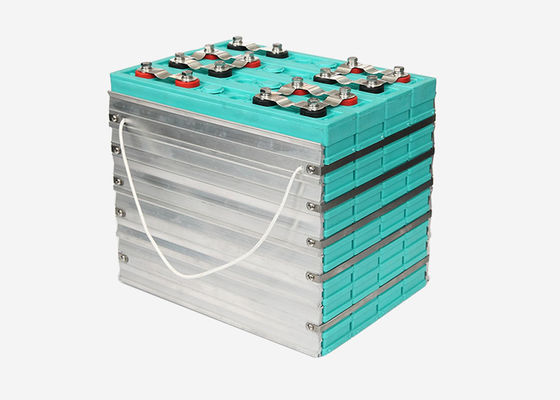

LiFePO4 48V200Ah forklift/truck Lithium Battery with high discharge current GBS-LFP200Ah-B
Major Features
| Long Life Expectancy | Under normal use, it can provide more than 2000 charge or discharge cycles, or 5 years standby power. |
| Superior Overcharge Performance | You can continuously overcharge the Lifepo4 batteries at 0.1C rate for 48 hours, and the battery won’t leak or deform. |
| Low Shelf- discharge Character | After a month of storage at 20±5°C, a fully charged battery can still provide about 99% of its normal capacity. |
| High Reliability | Lifepo4 batteries use the best available materials that use state of the art technology, making them remarkably reliable. |
| Item | Specification | Remark | ||
| Rated capacity | 200Ah | 0.2C rate discharge capacity | ||
| Minimum capacity | 200Ah | |||
| Internal impedance | ≤0.6mΩ | |||
| Nominal voltage | 3.2V | |||
| Cell weight | 6.5kg±0.1kg | |||
|
Standard discharge conditions |
Constant current | 100A | ||
| End-of-discharge voltage | 2.5V | |||
| Standard charge method | Constant current | 50A | ||
| Charge voltage | 3.55V | |||
| Fast charge method | Constant current | 200A | ||
| Charge voltage | 3.55V | |||
| Max continuous discharge current | 400A | |||
| Cycle life | 3000 cycles | 80% DOD | ||
| Operating temperature |
Charging ambient temperature |
0~65°C | ||
|
Discharging ambient temperature |
-20~65°C | |||
| Storage temperature | -20~65°C | |||
| Appearance |
Without break, distortion, contamination, leakage. |
|||
Basic Performance
(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.
(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.
(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).
(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
(7) Low cost.
(8) No pollution during manufacture and usage.
Matters needing attention
(1) Please check if spare parts are completed when open the package and read the operation manual carefully.
(2) Do not make the battery Short Circuit,do not over charge and discharge.
(3) Please charge the new battery to full capacity before discharge for the first use.
(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.
(5) Checking the voltage of battery, normally it is 12.8V-13.2V.
(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.
(7) Rivet or screw is used for battery connector.
(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.
(9) The charger used should be approved by our company in order to match with our lithium batteries.
(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.
Requirement for safety assurance
For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
Service line: +86-400-884-7799
