3.2V100Ah Deep Cycle Forklift Lithium Battery , Lifepo4 Lithium Ion Battery

Product Details

Place of Origin: CHINA

Brand Name: GBS

Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Model Number: GBS-LFP100Ah-H

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Negotiable

Packaging Details: special carton for dangerous goods

Delivery Time: 3-10 DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1800000 PCS PER YEAR

Get Best Price
Contact Now
Specifications
High Light:

lithium ion forklift battery

,

lithium ion battery for forklift

Application:
EV, Telecom, Solar Energy,motorcycle, RV
Warranty:
38 Months
Cycle Life:
More Than 3000 Times
Material:
LiFePO4
Dimension:
126x46x223mm
Application:
EV, Telecom, Solar Energy,motorcycle, RV
Warranty:
38 Months
Cycle Life:
More Than 3000 Times
Material:
LiFePO4
Dimension:
126x46x223mm
Description
3.2V100Ah Deep Cycle Forklift Lithium Battery , Lifepo4 Lithium Ion Battery

3.2V100Ah lithium battery for electric forklift GBS-LFP100Ah-H



Main applications



(1) Power electric vehicles: electric bike, scooter, motor, electric wheelchairs, electric bicycle, power tools, fishing boats, yachts.

(2) Portable Devices: PDA (Personal Digital Assistant), GPS, notebook, laptop.

(3) Video Devices: LED flashlight, cordless phone, camera, safety alarm.

(4) Others: Electric meter water instrument, backup power, emergency light, LED light, CCTV camera.



Application
Electric vehicle
Golf cart
Electric motorcycle
Electric boat
Electric forklift
Telecommunication
Distributed Grid Energy Storage system
Mining equipment
Solar energy storage system
Marine
Backup power

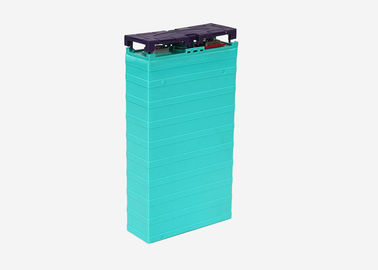

3.2V100Ah Deep Cycle Forklift Lithium Battery , Lifepo4 Lithium Ion Battery 0



Good performance under high and low temperature;



Good safety performance;



Good cycle life time;



No pollution during manufacture.









Intelligent Production Line



Automatic Warehousing System



Clear Visual Management



Standardized Management Certifications



Research and Development Innovation



Research and Development Capability

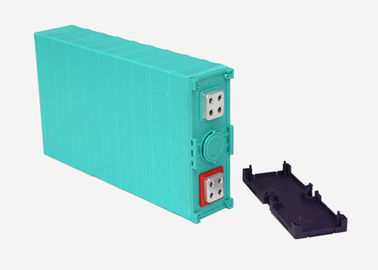

3.2V100Ah Deep Cycle Forklift Lithium Battery , Lifepo4 Lithium Ion Battery 1





3.2V100Ah Deep Cycle Forklift Lithium Battery , Lifepo4 Lithium Ion Battery 2







Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

(3) Good performance under low temperature.discharge capacity decreases to over 90% under 0°C and discharge capacity decreases to over 70% under -20°C.

(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

(6) It can fast charging. It could be charged to 80% within 0.5h and charged full with 2-3h.

(7) No pollution during manufacture and usage.

Matters Needing Attention

(1) Please check if spare parts are completed when open the package and read the operation manual carefully.

(2) Do not make the battery Short Circuit,do not over charge and discharge.

(3) Please charge the new battery to full capacity before discharge for the first use.

(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.

(5) Checking the voltage of battery, normally it is 3.2V-3.3V.

(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.

(7) Rivet or screw is used for battery connector.

(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevant connection which fixed with screws.

(9) The charger used should be approved by our company in order to match with our lithium batteries.

(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above. It won’t be within our company warranty.



Requirement for safety assurance



For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
