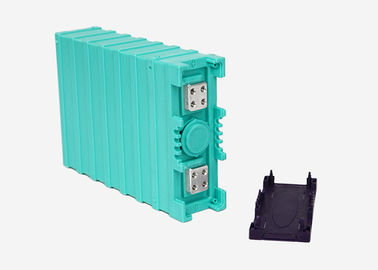

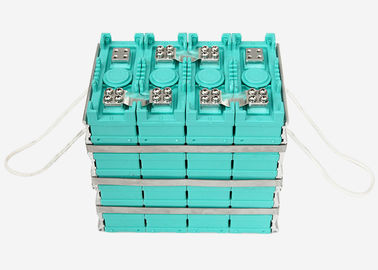

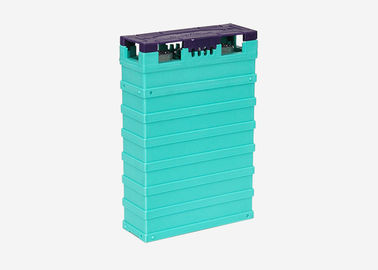

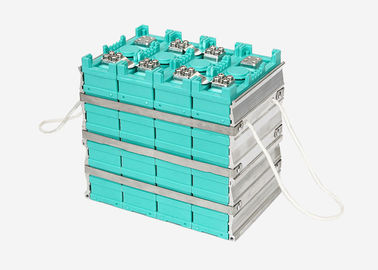

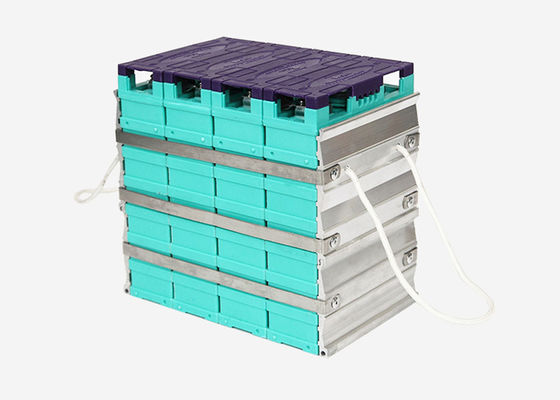

High Stability Lifepo4 Deep Cycle Battery For Traction / Forklift / Truck 40Ah

Product Details

Place of Origin: CHINA

Brand Name: GBS

Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Model Number: GBS-LFP40Ah

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Negotiable

Packaging Details: special carton for dangerous goods

Delivery Time: 3-10 DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1800000 PCS PER YEAR

Get Best Price
Contact Now
Specifications
High Light:

lithium ion forklift battery

,

lithium ion battery for forklift

Application:
EV, Telecom, Solar Energy,motorcycle
Weight:
1.4kgs
Warranty:
38 Months
Payment:
TT,LC
Battery Type::
LiFePO4(Lithium Iron Phosphate)
Capacity::
40Ah
Application:
EV, Telecom, Solar Energy,motorcycle
Weight:
1.4kgs
Warranty:
38 Months
Payment:
TT,LC
Battery Type::
LiFePO4(Lithium Iron Phosphate)
Capacity::
40Ah
Description
High Stability Lifepo4 Deep Cycle Battery For Traction / Forklift / Truck 40Ah



Lithium Ion Battery for Traction/ Forklift/ Truck 40Ah GBS-LFP40Ah





Key Features

1. Higher energy density and lower weight than other types rechargeable batteries.
2. Good temperature performance.
3. High security, no explosion and no fire.
4. Light and thinner, popular in digital products.
5. High discharge rate.
6. Strong charging acceptance and quick –charging capability.
7. Maintenance-free, no need to use acid or water.
8. Long cycle life and high stability.
9. Excellent high current discharge performance especially in startup and climbing.





Item Specification Remark
Rated capacity 40Ah 0.2C rate discharge capacity
Minimum capacity 40Ah
Internal impedance ≤0.8mΩ
Nominal voltage 3.2V
Cell weight 1.4±0.1KG

Standard discharge

conditions

Constant current 20A
End-of-discharge voltage 2.5V

Standard charge

method

Constant current 10A
Charge voltage 3.55V
Fast charge method Constant current 40A
Charge voltage 3.55V
Max continuous discharge current 120A
Cycle life 3000 cycles 80% DOD
Operating temperature

Charging ambient

temperature

0~65°C

Discharging ambient

temperature

-20~65°C
Storage temperature -20~65°C
Appearance

Without break,

distortion, contamination,

leakage.









High Stability Lifepo4 Deep Cycle Battery For Traction / Forklift / Truck 40Ah 0







Basic Performance

(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.

(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.

(7) Low cost.

(8) No pollution during manufacture and usage.





Matters needing attention

(1) Please check if spare parts are completed when open the package and read the operation manual carefully.

(2) Do not make the battery Short Circuit,do not over charge and discharge.

(3) Please charge the new battery to full capacity before discharge for the first use.

(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.

(5) Checking the voltage of battery, normally it is 3.2V-3.3V.

(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.

(7) Rivet or screw is used for battery connector.

(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.

(9) The charger used should be approved by our company in order to match with our lithium batteries.

(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.



Requirement for safety assurance

For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
