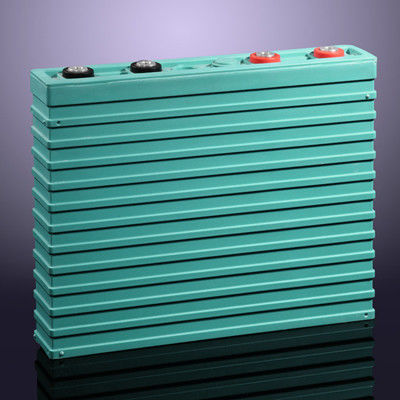

    3000 Cycles 400ah Lifepo4 Lithium Ion Battery Packs For Marine / Electric Boat

    Product Details:

    Place of Origin: Zhejiang, China
    Brand Name: GBSystem
    Certification: Ce, TUV, PONY, MA, ISO9001, ISO14001, OHASA18001
    Model Number: GBS-LFP400Ah

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: Special Carton for Dangerous Goods
    Delivery Time: 10 work days
    Supply Ability: 1000000 Piece/Pieces per Year
    Get Best Price Contact Now

    Detail Information

    Application: EV, Telecom, Solar Energy, Motorcycle Warranty: 38 Months
    Cycle Life: More Than 3000 Times Weight: 13.2 ± 0.1kg
    Payment: TT/LC Package: Special Carton For Dangerous Goods
    Dimension: 365*73*312mm Shape: Prismatic
    HS Code: 8507600090
    High Light:

    lifepo4 marine battery

    ,

    lithium ion boat battery

    Product Description

    3000 Cycles 400ah Lifepo4 Lithium Ion Battery Packs For Marine / Electric Boat

    3000 cycles lifepo4 battery 400ah lithium ion battery packs for marine / electric boat







    Product feature



    1. High safety: CE UL approved, safest Li-Ion battery so far, with internal protection circuit board (BMS),

    no fire, no explosion



    2. Green energy: no toxic material contained



    3. Long life cycle: more than 2000 times deep cycle at 1C rate, 6-8 times of lead acid battery



    4. No memory effect: highly efficient charge anytime, no reduction of capacity





    Specification





    Item



    Specification





    Model



    GBS-LFP400Ah



    Rated capacity



    400Ah



    Nominal voltage



    3.2V



    Internal impedance



    ≤0.5mΩ



    Standard charge



    0.5C



    Fast charge



    1C



    End of charge



    3.65V



    Standard discharge



    0.5C



    Max discharge



    1C



    Instantaneous discharge



    3C(10s)



    End of discharge



    3.0V



    Working temperature



    -20-65℃



    Cycle life



    3000 cycles(0.5C)



    Weight



    13.2kg



    Dimensions



    365×73×312mm



    Shell



    PP


    Demension







    3000 Cycles 400ah Lifepo4 Lithium Ion Battery Packs For Marine / Electric Boat 0











    Certificates





    3000 Cycles 400ah Lifepo4 Lithium Ion Battery Packs For Marine / Electric Boat 13000 Cycles 400ah Lifepo4 Lithium Ion Battery Packs For Marine / Electric Boat 2





    Company Information





    3000 Cycles 400ah Lifepo4 Lithium Ion Battery Packs For Marine / Electric Boat 3



    Why Choose Us







    (1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.





    (2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.





    (3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.





    (4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.





    (5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).





    (6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.





    (7) Low cost.





    (8) No pollution during manufacture and usage.







    Exhibition







    3000 Cycles 400ah Lifepo4 Lithium Ion Battery Packs For Marine / Electric Boat 4







    Production Line







    3000 Cycles 400ah Lifepo4 Lithium Ion Battery Packs For Marine / Electric Boat 5



          1. Coating                                    5. Formation



          2. Cutting                                     6. Grading



          3. Stacking                                   7. Finishing product



          4. Sealing                                     8. Packing







    Attentions





    (1) Please check if spare parts are completed when open the package and read the operation manual carefully.





    (2) Do not make the battery Short Circuit,do not over charge and discharge.





    (3) Please charge the new battery to full capacity before discharge for the first use.





    (4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.





    (5) Checking the voltage of battery, normally it is 3.2V-3.3V.





    (6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.





    (7) Rivet or screw is used for battery connector.





    (8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.





    (9) The charger used should be approved by our company in order to match with our lithium batteries.





    (10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







    Requirements For Safety Assurance





    For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
