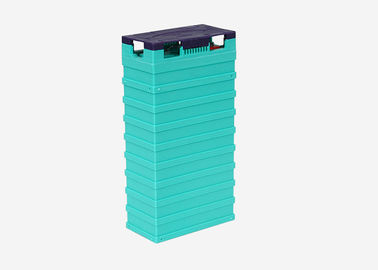

Large Capacity Lithium Battery 100Ah Power Battery Pack For Energy Storage System

Product Details

Place of Origin: CHINA

Brand Name: GBS

Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Model Number: GBS-LFP100Ah

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Negotiable

Packaging Details: special carton for special goods

Delivery Time: 3-10 DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 1800000 PCS PER YEAR

Get Best Price
Contact Now
Specifications
High Light:

lithium iron phosphate deep cycle battery

,

lithium iron phosphate lifepo4 batteries

Application:
EV, Telecom, Solar Energy,motorcycle, UPS, ESS
Warranty:
38 Months
Life Cycle:
More Than 2000 Cycles
Payment:
TT,LC
Application:
EV, Telecom, Solar Energy,motorcycle, UPS, ESS
Warranty:
38 Months
Life Cycle:
More Than 2000 Cycles
Payment:
TT,LC
Description
Large Capacity Lithium Battery 100Ah Power Battery Pack For Energy Storage System

3.2V/12V/48V 100Ah lifepo4 battery for UPS/ESS/Telecommunication power supply GBS-LFP100Ah



Good performance under high and low temperature;Good safety performance;Good cycle life time;No pollution during manufacture.







Item

Specification

Remark

Rated capacity

100Ah

0.2C rate discharge capacity

Minimum capacity

100Ah

Internal impedance

≤2.8mΩ



Nominal voltage

12V



Cell weight

12.4kg±200g



Standard discharge

conditions

Constant current

50A



End-of-discharge voltage

11.2V



Standard charge method

Constant current

50A



Charge voltage

14.2V



Fast charge method

Constant current

100A



Charge voltage

14.2V



Max continuous discharge current

300A



Cycle life

2000 cycles

80% DOD

Operating temperature

Charging ambient

temperature

0~65°C



Discharging ambient

temperature

-20~65°C



Storage temperature

-20~65°C



Appearance

Without break,

distortion, contamination,

leakage.







Item Description Dimensions

L Length 276mm

W Width 126mm

H Height 188mm

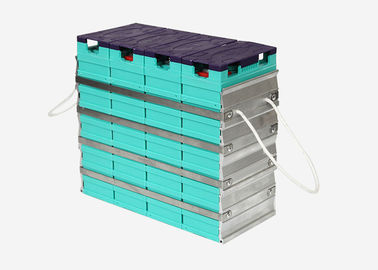

Large Capacity Lithium Battery 100Ah Power Battery Pack For Energy Storage System 0







Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).



(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



(7) Low cost.



(8) No pollution during manufacture and usage.











Matters needing attention



(1) Please check if spare parts are completed when open the package and read the operation manual carefully.



(2) Do not make the battery Short Circuit,do not over charge and discharge.



(3) Please charge the new battery to full capacity before discharge for the first use.



(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.



(5) Checking the voltage of battery, normally it is 12.8V-13.2V.



(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.



(7) Rivet or screw is used for battery connector.



(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.



(9) The charger used should be approved by our company in order to match with our lithium batteries.



(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







Requirement for safety assurance



For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
