    Lithium Rechargeable Battery Pack 40Ah Prismatic Shape For Electric Car

    Product Details:

    Place of Origin: CHINA
    Brand Name: GBS
    Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001
    Model Number: GBS-LFP40Ah

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: special carton for dangerous goods
    Delivery Time: 3-10 DAYS
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1800000 PCS PER YEAR
    Get Best Price Contact Now

    Detail Information

    Appliation: EV, Telecom, Solar Energy,motorcycle, Marine, RV Weight: 1.4 ± 0.1kg
    Warranty: 38 Months Payment: TT,LC
    Life Cycle: More Than 3000 Cycles Dimension: 126*46*180mm
    Shape: Prismatic
    High Light:

    lifepo4 rechargeable battery


    lithium ion rechargeable battery pack

    Product Description

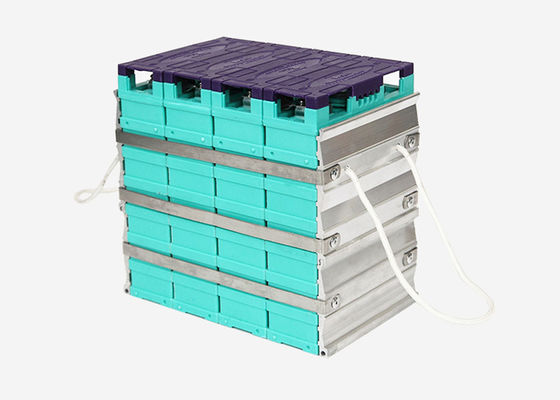

    Lithium Rechargeable Battery Pack 40Ah Prismatic Shape For Electric Car

    Portable UPS Iithium battery/lithium ion battery/LiFePO4 battery 40Ah GBS-LFP40Ah




    Good performance under high and low temperature;


    Good safety performance;


    Good cycle life time;


    No pollution during manufacture.




    Electric vehicle
    Golf cart
    Electric motorcycle
    Electric boat
    Electric forklift
    Distributed Grid Energy Storage system
    Mining equipment
    Solar energy storage system
    Backup power










     Rated capacity


     0.2C rate discharge capacity

     Minimum capacity


     Internal impedance



     Nominal voltage



     Cell weight



     Standard discharge


     Constant current



     End-of-discharge voltage



     Standard charge


     Constant current



     Charge voltage



     Fast charge method

     Constant current



     Charge voltage



     Max continuous discharge current



     Cycle life

    3000 cycles

     80% DOD

     Operating temperature

     Charging ambient




     Discharging ambient




     Storage temperature




     Without break,

     distortion, contamination,






    Lithium Rechargeable Battery Pack 40Ah Prismatic Shape For Electric Car 1




    Basic Performance

    (1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

    (2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

    (3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.

    (4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

    (5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

    (6)  It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.

    (7)  Low cost.

    (8)  No pollution during manufacture and usage.



    Matters needing attention

    (1)  Please check if spare parts are completed when open the package and read the operation manual carefully.

    (2)  Do not make the battery Short Circuit,do not over charge and discharge.

    (3)  Please charge the new battery to full capacity before discharge for the first use.

    (4)  The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.

    (5)  Checking the voltage of battery, normally it is 3.2V-3.3V.

    (6)  Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.

    (7)  Rivet or screw is used for battery connector.

    (8)  Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.

    (9)  The charger used should be approved by our company in order to match with our lithium batteries.

    (10)  It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.


    Requirement for safety assurance

    For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
