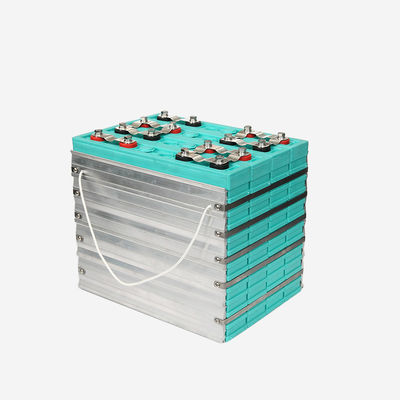

Lifepo4 Lithium Marine Deep Cycle Li-Ion Battery GBS-LFP200Ah-B High Capacity

Product Details

Place of Origin: CHINA

Brand Name: GBS

Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Model Number: GBS-LFP200Ah-B

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Negotiable

Packaging Details: special carton for dangerous goods

Delivery Time: 3-10 DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1800000 PCS PER YEAR

Get Best Price
Contact Now
Specifications
High Light:

lifepo4 marine battery

,

lithium ion boat battery

Application:
Electric Bus, Backup Power, Marine
Warranty:
38 Months
Life Cycle:
More Than 3000 Cycles
Payment:
LC, TT
Cycle Life::
2000 Times
Application:
Electric Bus, Backup Power, Marine
Warranty:
38 Months
Life Cycle:
More Than 3000 Cycles
Payment:
LC, TT
Cycle Life::
2000 Times
Description
Lifepo4 Lithium Marine Deep Cycle Li-Ion Battery GBS-LFP200Ah-B High Capacity

lifepo4 lithium marine deep cycle li-ion battery GBS-LFP200Ah-B







Product Description



High capacity Lithium ion lifepo4 battery 20Ah 40Ah 50Ah 60Ah 70Ah 100Ah 160Ah 200Ah 300Ah 400Ah



Application



1. Solar energy system, energy storage system, like UPS.

2. UPS, emergency applications and medical equipment

3 . Power transmission and accident lighting

4 . Automatic working system



5. Communication devices such as mobile phones, telephones, walkie-talkies, GSM modules, UPS, telecommunications power supplies, etc.


6. Wireless devices such as wireless transmitters, wireless receivers, wireless media receivers, wireless microphones, etc.


7. Portable devices such as portable DVDs, tablets, laptops, Bluetooth, mini disc players, etc.







Item Specification Remark
Rated capacity 200Ah 0.2C rate discharge capacity
Minimum capacity 200Ah
Internal impedance ≤0.6mΩ
Nominal voltage 3.2V
Cell weight 6.5kg±0.1kg

Standard discharge

conditions

Constant current 100A
End-of-discharge voltage 2.5V
Standard charge method Constant current 50A
Charge voltage 3.55V
Fast charge method Constant current 200A
Charge voltage 3.55V
Max continuous discharge current 400A
Cycle life 3000 cycles 80% DOD
Operating temperature

Charging ambient

temperature

0~65°C

Discharging ambient

temperature

-20~65°C
Storage temperature -20~65°C
Appearance

Without break,

distortion, contamination,

leakage.
















Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).



(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



(7) Low cost.



(8) No pollution during manufacture and usage.





Matters needing attention



(1) Please check if spare parts are completed when open the package and read the operation manual carefully.



(2) Do not make the battery Short Circuit,do not over charge and discharge.



(3) Please charge the new battery to full capacity before discharge for the first use.



(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.



(5) Checking the voltage of battery, normally it is 12.8V-13.2V.



(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.



(7) Rivet or screw is used for battery connector.



(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.



(9) The charger used should be approved by our company in order to match with our lithium batteries.



(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







Requirement for safety assurance



For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
