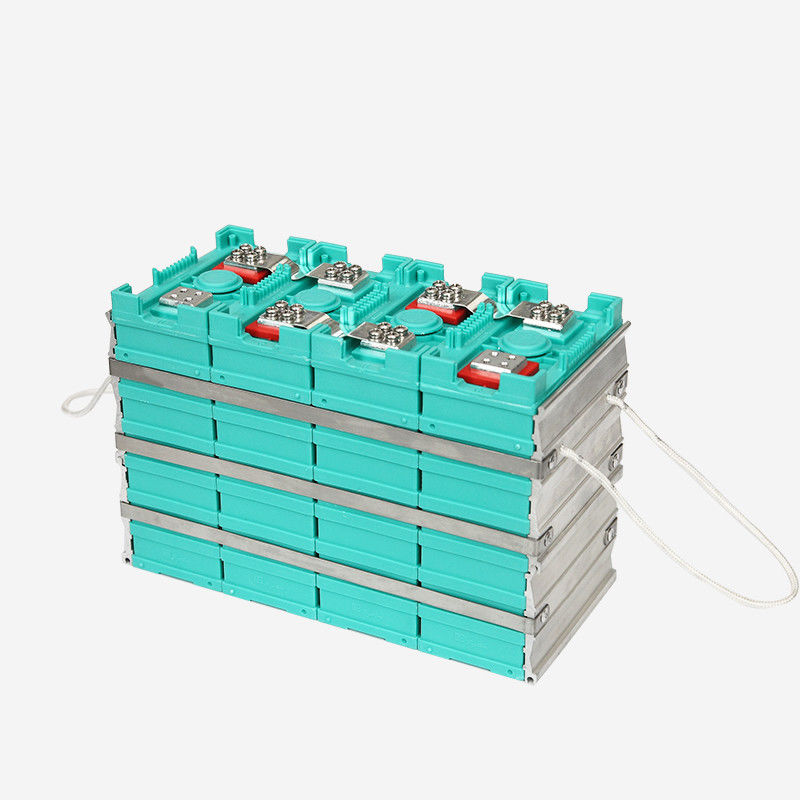

LFP 60Ah Lifepo4 Lithium Iron Phosphate Battery For Solar Lighting System

LFP 60Ah Lifepo4 Lithium Iron Phosphate Battery For Solar Lighting System

lithium iron phosphate deep cycle battery

lithium iron phosphate lifepo4 batteries

Place of Origin:

CHINA

Brand Name:

GBS

Certification:

CE, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Model Number:

GBS-LFP60Ah

Contact Us

Request A Quote
Product Details
Application:
EV, Telecom, Solar Energy,motorcycle
Warranty:
38 Months
Life Cycle:
More Than 2000 Times
Payment:
TT,LC
Capacity:
60Ah
Payment & Shipping Terms
Minimum Order Quantity
1 PCS
Price
Negotiable
Packaging Details
special carton for dangerous goods
Delivery Time
10 days
Payment Terms
D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability
1800000 PCS PER YEAR
Product Description

Hot sale lithium battery LFP 60Ah Lifepo4 Rechargeable Battery Pack For Solar Energy Storgage System / UPS / Solar Lighting System



Features:



Good performance under high and low temperature;Good safety performance;Good cycle life time;No pollution during manufacture.





Applications:



Electric bike, electric bicycle, Escooter, electric trikes, better bikes, folding e-bikes, velomobiles, pedicabs, motorscooters, motorcycles, LEV and etc



Specification:



Item Specification Remark
Rated capacity 60Ah 0.2C rate discharge capacity
Minimum capacity 60Ah
Internal impedance ≤6.0mΩ
Nominal voltage 12V
Cell weight 8.6kg±100g

Standard discharge

conditions

Constant current 30A
End-of-discharge voltage 11.2V
Standard charge method Constant current 15A
Charge voltage 14.2V
Fast charge method Constant current 60A
Charge voltage 14.2V
Max continuous discharge current 180A
Cycle life 2000 cycles 80% DOD
Operating temperature

Charging ambient

temperature

0~65°C

Discharging ambient

temperature

-20~65°C
Storage temperature -20~65°C
Appearance

Without break,

distortion, contamination,

leakage.





Item  Description   Dimensions

L       Length           276mm

W      Width            126mm

H      Height            188mm



LFP 60Ah Lifepo4 Lithium Iron Phosphate Battery For Solar Lighting System 0





Certificates:





LFP 60Ah Lifepo4 Lithium Iron Phosphate Battery For Solar Lighting System 1LFP 60Ah Lifepo4 Lithium Iron Phosphate Battery For Solar Lighting System 2





Company Information:





LFP 60Ah Lifepo4 Lithium Iron Phosphate Battery For Solar Lighting System 3





Exhibition





LFP 60Ah Lifepo4 Lithium Iron Phosphate Battery For Solar Lighting System 4







Production Line





LFP 60Ah Lifepo4 Lithium Iron Phosphate Battery For Solar Lighting System 5



1. Coating 5. Formation



2. Cutting 6. Grading



3. Stacking 7. Finishing product



4. Sealing 8. Packing







Why Choose Us





(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.





(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.





(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.





(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.





(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).





(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.





(7) Low cost.





(8) No pollution during manufacture and usage.







Requirement for safety assurance







For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
