Product Details
Place of Origin: CHINA
Brand Name: GBS
Certification: CE, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001
Model Number: GBS-LFP60Ah
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: special carton for dangerous goods
Delivery Time: 10 days
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000 PCS PER YEAR
Application: |
EV, Telecom, Solar Energy,motorcycle |
Warranty: |
38 Months |
Life Cycle: |
More Than 2000 Times |
Payment: |
TT,LC |
Capacity: |
60Ah |
Application: |
EV, Telecom, Solar Energy,motorcycle |
Warranty: |
38 Months |
Life Cycle: |
More Than 2000 Times |
Payment: |
TT,LC |
Capacity: |
60Ah |

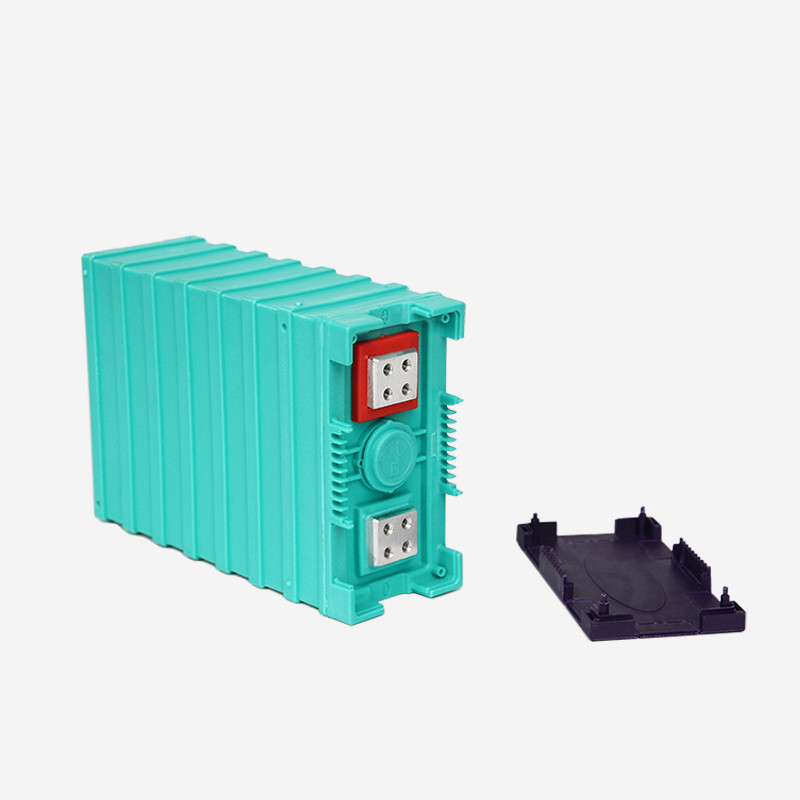

3.2volt 60Ah deep cycle rechargeable li-ion lithium ion battery pack
Features:
Good performance under high and low temperature;Good safety performance;Good cycle life time;No pollution during manufacture.
Applications:
Electric bike, electric bicycle, Escooter, electric trikes, better bikes, folding e-bikes, velomobiles, pedicabs, motorscooters, motorcycles, LEV and etc
Specification:
| Item | Specification | Remark | ||
| Rated capacity | 60Ah | 0.2C rate discharge capacity | ||
| Minimum capacity | 60Ah | |||
| Internal impedance | ≤6.0mΩ | |||
| Nominal voltage | 12V | |||
| Cell weight | 8.6kg±100g | |||
|
Standard discharge conditions |
Constant current | 30A | ||
| End-of-discharge voltage | 11.2V | |||
| Standard charge method | Constant current | 15A | ||
| Charge voltage | 14.2V | |||
| Fast charge method | Constant current | 60A | ||
| Charge voltage | 14.2V | |||
| Max continuous discharge current | 180A | |||
| Cycle life | 2000 cycles | 80% DOD | ||
| Operating temperature |
Charging ambient temperature |
0~65°C | ||
|
Discharging ambient temperature |
-20~65°C | |||
| Storage temperature | -20~65°C | |||
| Appearance |
Without break, distortion, contamination, leakage. |
|||
Item Description Dimensions
L Length 276mm
W Width 126mm
H Height 188mm
Certificates:
Company Information:
Exhibition
Production Line
1. Coating 5. Formation
2. Cutting 6. Grading
3. Stacking 7. Finishing product
4. Sealing 8. Packing
Why Choose Us
(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.
(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.
(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).
(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
(7) Low cost.
(8) No pollution during manufacture and usage.
