Data Center High Voltage Lithium Battery System 600V 750V 100Ah Backup

Data Center High Voltage Lithium Battery System 600V 750V 100Ah Backup

lithium ion battery pack

lithium ion deep cycle battery

Place of Origin:

CHINA

Brand Name:

GBS

Certification:

CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001,TS16949

Model Number:

GBS-LFP100Ah-C

Contact Us

Request A Quote
Product Details
Application:
Data Center, EV, Telecom, Solar Energy Storage,motorcycle Etc
Life Cycle:
More Than 3000 Times
Weight:
2.3kgs
Payment:
TT,LC
Name:
High Voltage Lithium Battery
Certification:
CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001,TS16949
Payment & Shipping Terms
Minimum Order Quantity
1 pcs
Price
Negotiable
Packaging Details
carton
Delivery Time
3-7 days
Payment Terms
T/T, L/C, Western Union
Supply Ability
1800000 pcs per year
Product Description

rechargeable lithium ion battery LFP cell 100Ah for electric scooter







Features:



a. Extremely safe and stable chemistry: PCB and/or BMS built inside to balance protect the battery.

b. Long life-cycle: Can be circularly used, best can up to 2000 times recycles, 8 times of lead acid battery.

c. Lighter weight, with the best power-to-weight ratio: 1/3 of Lead acid battery weight.

d. Good performance at high temperature and high temperature resistance

e. Low self-discharge rate, less than 3% monthly.

f. No memory effects and highly efficient charge.

g. Environment friendly: Clean and Green energy poses no pollution on our environment

Application:

Electric vehicle, e-boat, solar system, energy storage system telecom, home solar system ,Wheelchair, E-scooter, golf cart/trolley, postal van, road sweeper, industrial sweeper, ride-on floor sweeper,cleaning sweeper, floor sweeper, sweeper car....



Internal impedance ≤0.5mΩ
Standard charge 0.5C
Fast charge 1C
End of charge 3.65V
Standard discharge 0.5C
Max discharge 1C
End of discharge 2.8V
Working temperature -20~65℃
Cycle life 3000 cycles ( 0.5C )
Weight 2.3kg
Dimensions

126×46×233mm

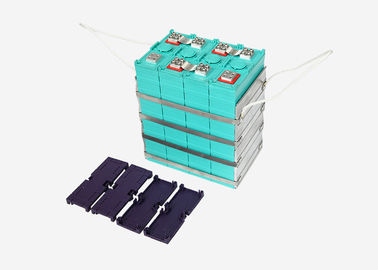

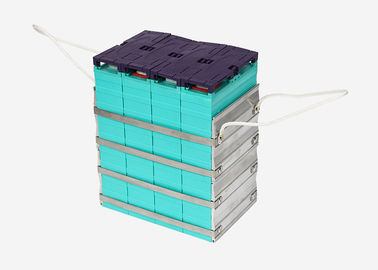

Data Center High Voltage Lithium Battery System 600V 750V 100Ah Backup 0





Basic Performance:

1. Output with high magnification: instant impulse discharge current is 10C for 2 seconds.

2. Good performance under high temperature, it could work under 65℃ temperature.The battery structure is safe and good.

3. Good performance under low temperature,discharge capacity is no less than 90% of rated capacity when discharging with 1C under -20℃;no less than 70% of rated capacity with 0.33C.

4. Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

5. Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

6. It can fast charging. It could be charged to 80% within 0.5h and charged full with 1h.
