Place of Origin:
China
Brand Name:
GBS
Certification:
CE,UL,IEC62619,TUV,ISO9001,ISO14001,OHSAS18001
Model Number:
GBS-LFP100Ah-C
Contact Us

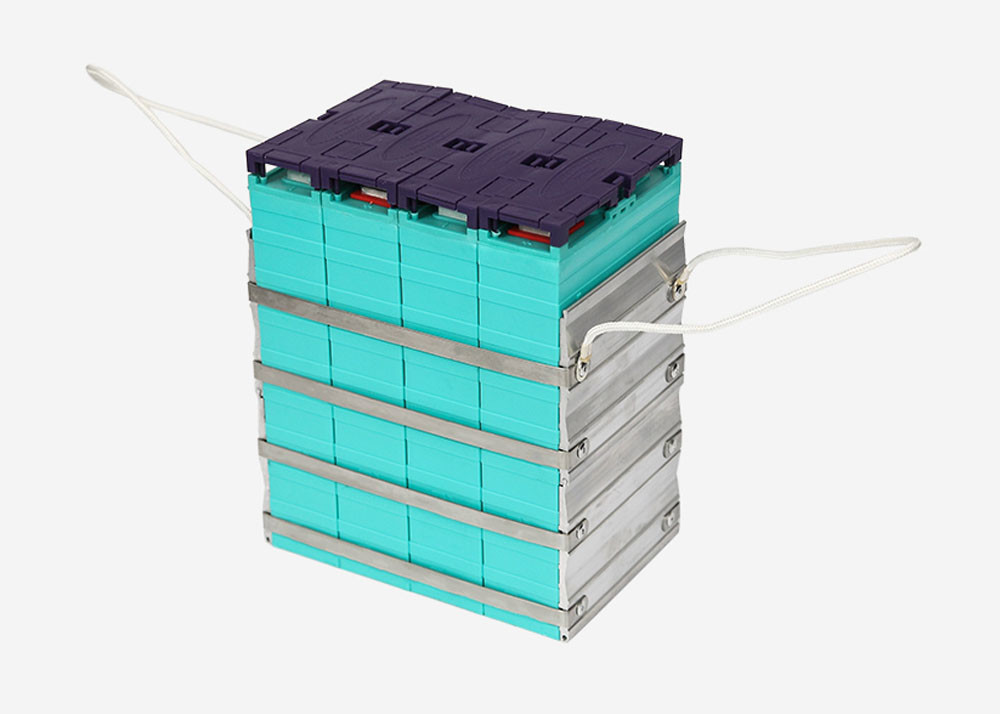

Prismatic LFP battery cell 3.2v100ah lithium ion phosphate battery cells for EV and ESS
| Item | Specification |
| Model | GBS-LFP100Ah-C |
| Pole screw hole | 4 holes |
| Rated capacity | 100Ah |
| Nominal voltage | 3.2V |
| Internal impedance | ≤0.4mΩ |
| Standard charge rate | 0.25C |
| Fast charge rate | 1.0C |
| End of charge voltage | 3.65V |
| Standard discharge rate | 0.5C |
| Max discharge rate | 1.0C |
| Instantaneous discharge rate | 3C ( 10s ) |
| End of discharge voltage | 2.8V |
| Working temperature | -20～65℃ |
| Cycle life | 3000 cycles ( 0.5C ) |
| Weight | 2.3±0.1kg |
| Dimension | 126×46×233±1mm |
| Shell | PP |
Trial order is 3-7 work days,formal order 7-20 work days.
Yes, but it is charged.
Yes.
Yes, we are the manufacturer of GBS LiFePO4 battery.
Normally by sea. Shipping time depends on destination port. But we can also make shipment by UPS and Fedex for trial order.
2 years.
We always supply High-Quality products & High-Stand service to our clients.
