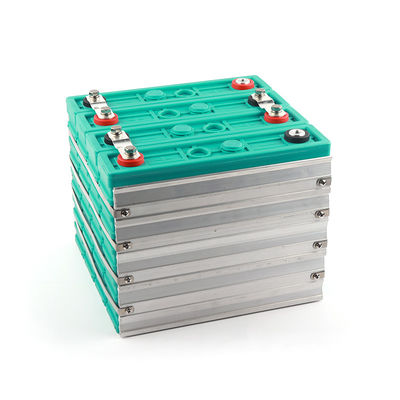

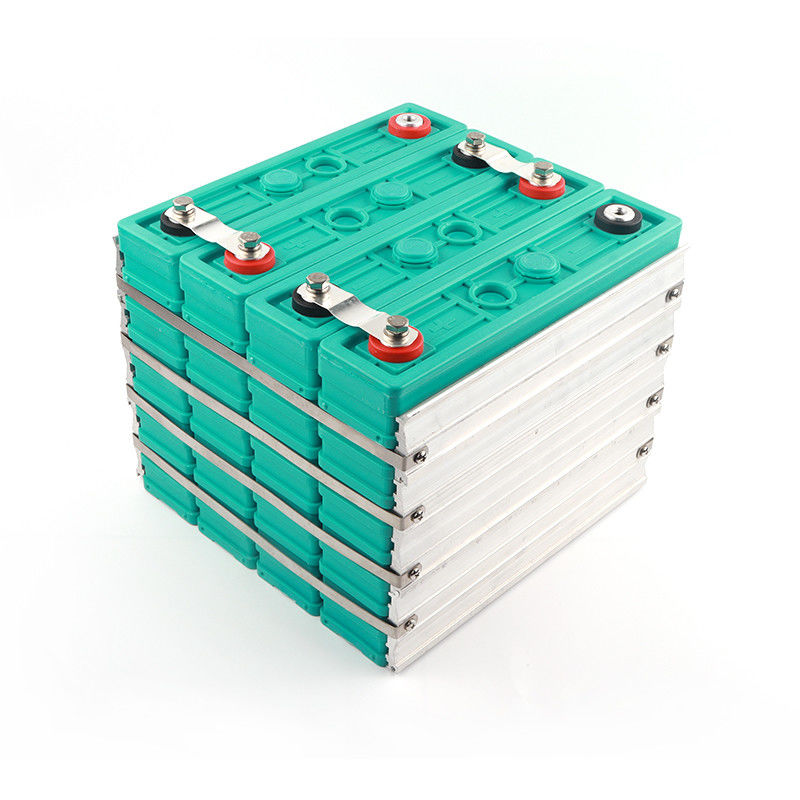

12.8v 200ah 3.2v Lithium Iron Phosphate Battery Cell

Product Description



Specification



Item			Specification	Remark
Rated capacity			200Ah	0.5C rate discharge capacity
Minimum capacity			200Ah
Internal impedance			≤2.5mΩ
Nominal voltage			12V
Cell weight			21kg±150g
Standard discharge conditions	Constant current		100A
	End-of-discharge voltage		11.2V
Standard charge method	Constant current		100A
	Charge voltage		14.6V
Fast charge method	Constant current		200A
	Charge voltage		14.6V
Max continuous discharge current			600A
Cycle life			≥2000 cycles	80% DOD
Operating temperature		Charging ambient temperature	0~45°C
		Discharging ambient temperature	-25~65°C
		Storage temperature	0~45°C
Appearance			Without break, distortion, contamination, leakage.





Item Description Dimensions

L Length 288mm

W Width 290mm

H Height 237mm









Basic Performance



1. Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



2. Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



3. Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



4. Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



5. Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).



6. It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



7. Low cost.



8. No pollution during manufacture and usage.
