Product Details
Place of Origin: China
Brand Name: GBS
Certification: CE,UL,IEC62619,TUV,ISO9001,ISO14001,OHSAS18001
Model Number: GBS-LFP75Ah-C
Payment & Shipping Terms
Minimum Order Quantity: 4PCS
Price: USD60
Packaging Details: Special carton for dangerous goods
Delivery Time: 7 WORKDAYS
Payment Terms: L/C, T/T
Supply Ability: 3000000PCS PER YEAR
Connector: |
Busbar, Lug, Screw, Bolt |
Type: |
LiFePO4 |
Cycle Life: |
3000 Times |
Warranty: |
2 Years |
Connector: |
Busbar, Lug, Screw, Bolt |
Type: |
LiFePO4 |
Cycle Life: |
3000 Times |
Warranty: |
2 Years |

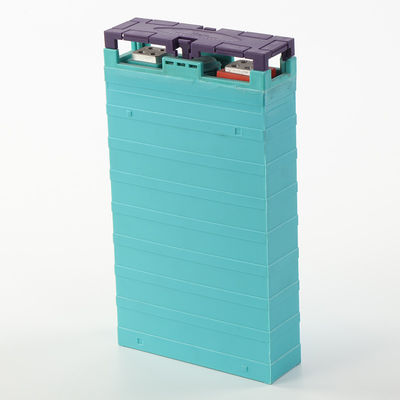

Automatic Production Line Lifepo4 Lithium Ion Batteries 3.2v 75ah
| Item | Specification |
| Model | GBS-LFP75Ah-C |
| Pole screw hole | 4 holes |
| Rated capacity | 75Ah |
| Nominal voltage | 3.2V |
| Internal impedance | ≤0.45mΩ |
| Standard charge rate | 0.25C |
| Fast charge rate | 1.0C |
| End of charge voltage | 3.65V |
| Standard discharge rate | 0.5C |
| Max discharge rate | 1.0C |
| Instantaneous discharge rate | 3C ( 10s ) |
| End of discharge voltage | 2.8V |
| Working temperature | -20～65℃ |
| Cycle life | 3000 cycles ( 0.5C ) |
| Weight | 2.0±0.1kg |
| Dimension | 126×37×233±1mm |
| Shell | PP |
Trial order is 3-7 work days,formal order 7-20 work days.
Yes, but it is charged.
Yes.
Yes, we are the manufacturer of GBS LiFePO4 battery.
Normally by sea. Shipping time depends on destination port. But we can also make shipment by UPS and Fedex for trial order.
2 years.
We always supply High-Quality products & High-Stand service to our clients.
