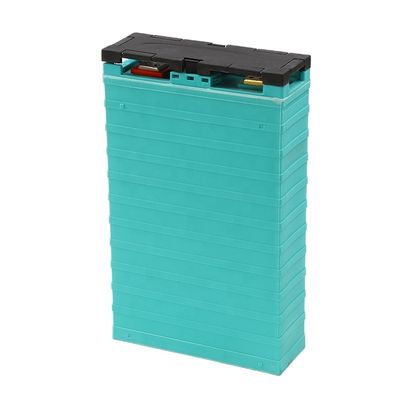

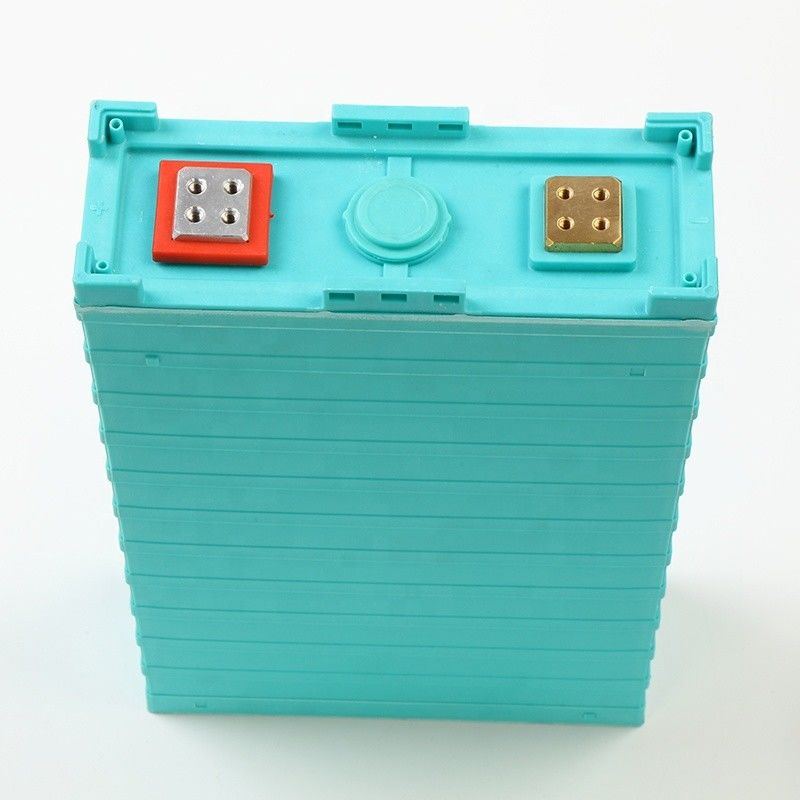

OHSAS18001 3.2V 200Ah LiFePO4 Rechargeable Lithium Ion Battery

Product Details

Place of Origin: China

Brand Name: GBS

Certification: CE,UL,IEC62619,TUV,ISO9001,ISO14001,OHSAS18001

Model Number: GBS-LFP200Ah-C

Payment & Shipping Terms

Minimum Order Quantity: 4PCS

Price: USD160

Packaging Details: Special carton for dangerous goods

Delivery Time: 7 WORKDAYS

Payment Terms: L/C, T/T

Supply Ability: 3000000PCS PER YEAR

Get Best Price
Contact Now
Specifications
High Light:

OHSAS18001 Rechargeable Lithium Ion Battery

,

200Ah Rechargeable Lithium Ion Battery

,

3.2V 200Ah LiFePO4 Rechargeable Battery

Connector:
Busbar, Lug, Screw, Bolt
Type:
LiFePo4
Warranty:
2 Years
Nominal Voltage:
3.2V
Cycle Life:
3000 Times
Connector:
Busbar, Lug, Screw, Bolt
Type:
LiFePo4
Warranty:
2 Years
Nominal Voltage:
3.2V
Cycle Life:
3000 Times
Description
OHSAS18001 3.2V 200Ah LiFePO4 Rechargeable Lithium Ion Battery

Cell Battery Rechargeable Li-ion Lithium Ion Battery



OHSAS18001 3.2V 200Ah LiFePO4 Rechargeable Lithium Ion Battery 0



OHSAS18001 3.2V 200Ah LiFePO4 Rechargeable Lithium Ion Battery 1





Item Specification
Model GBS-LFP200Ah-C
Pole screw hole 4 holes
Rated capacity 200Ah
Nominal voltage 3.2V
Internal impedance ≤0.35mΩ
Standard charge rate 0.25C
Fast charge rate 1.0C
End of charge voltage 3.65V
Standard discharge rate 0.5C
Max discharge rate 1.0C
Instantaneous discharge rate 3C ( 10s )
End of discharge voltage 2.8V
Working temperature -20~65℃
Cycle life 3000 cycles ( 0.5C )
Weight 6.5±0.2kg

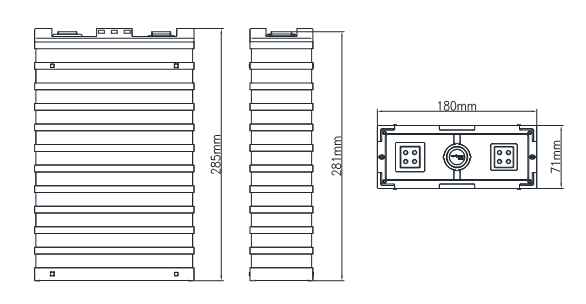

Dimension 180×71×285±2mm
Shell PP





OHSAS18001 3.2V 200Ah LiFePO4 Rechargeable Lithium Ion Battery 2



OHSAS18001 3.2V 200Ah LiFePO4 Rechargeable Lithium Ion Battery 3

OHSAS18001 3.2V 200Ah LiFePO4 Rechargeable Lithium Ion Battery 4

OHSAS18001 3.2V 200Ah LiFePO4 Rechargeable Lithium Ion Battery 5



  • When will you ship the products when payment is done?

Trial order is 3-7 work days,formal order 7-20 work days.



  • Is the sample available?

Yes, but it is charged.



  • Can I get a lower price if I order large quantities?

Yes.



  • Are you a factory?

Yes, we are the manufacturer of GBS LiFePO4 battery.



  • How you shipping the goods and how long it will take?

Normally by sea. Shipping time depends on destination port. But we can also make shipment by UPS and Fedex for trial order.



  • What is warranty?

2 years.



  • Why does it seem your price little higher than other factories?

We always supply High-Quality products & High-Stand service to our clients.
