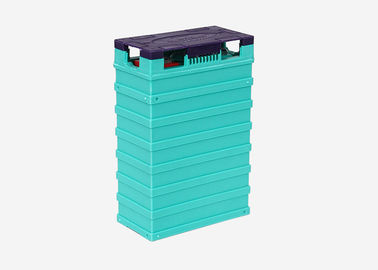

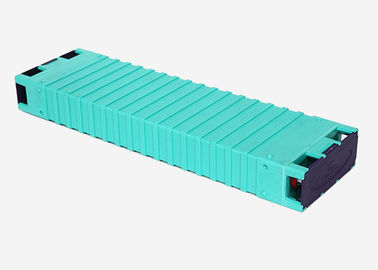

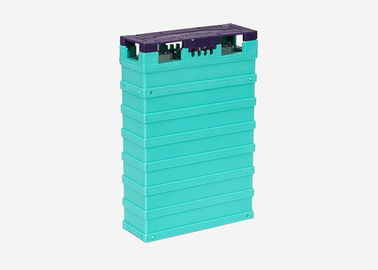

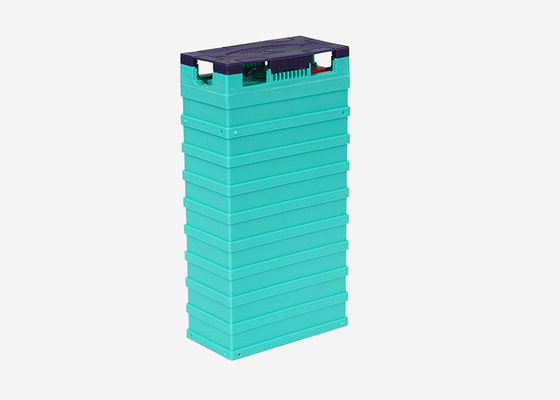

Prismatic Lithium Golf Cart Batteries Replacement 3.2V 40Ah 60Ah 80Ah 100Ah 200Ah

Prismatic Lithium Golf Cart Batteries Replacement 3.2V 40Ah 60Ah 80Ah 100Ah 200Ah

lithium golf cart batteries

lithium ion battery for golf trolley

Place of Origin:

Ningbo , China(Main land)

Brand Name:

GBS

Certification:

UL , TUV , CE , IEC

Model Number:

3.2V40Ah

Contact Us

Request A Quote
Product Details
Shell:
PP
External Type:
Square Shape
Rated Capacity:
40Ah
Nominal Voltage:
3.2V
Payment & Shipping Terms
Minimum Order Quantity
Negotiation
Price
Negotiable
Packaging Details
carton
Delivery Time
3-10 work days
Payment Terms
T/T, 30% advanced deposit, the balance paid off before loading, or consulting.
Supply Ability
10 million Wh per month
Product Description

Electric Golf Cart Battery ,Lithium battery , power battery , 3.2V 40Ah 60Ah 80Ah 100Ah 200Ah , GBS ,GBsystem







Internal impedance ≤1.8mΩ
Standard charge 0.5C
Fast charge 1C
End of charge 3.65V
Standard discharge 0.5C
Max discharge 1C
End of discharge 2.8V
Working temperature -20~65℃
Cycle life 3000 cycles ( 0.5C )
Weight 1.4kg
Dimensions

126×46×180mm



Prismatic Lithium Golf Cart Batteries Replacement 3.2V 40Ah 60Ah 80Ah 100Ah 200Ah 0



Basic Performance:

1. Output with high magnification: instant impulse discharge current is 10C for 2 seconds.

2. Good performance under high temperature, it could work under 65℃ temperature.The battery structure is safe and good.

3. Good performance under low temperature,discharge capacity is no less than 90% of rated capacity when discharging with 1C under -20℃;no less than 70% of rated capacity with 0.33C.

4. Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

5. Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

6. It can fast charging. It could be charged to 80% within 0.5h and charged full with 1h.

7. Low cost.

8. No pollution during manufacture and usage.



Matters needing attention:

1. Li-ion battery cells must be used with a battery management system(BMS). Every Li-ion battery cell must be monitored and automatically protected by a BMS system against over-charge and over-discharge conditions. Over-charge and over-discharged conditions will cause permanent damage to battery cells and packs, and possibly create unsafe operating conditons, such as fire.

2. Always implement safety devices such as fuses and contractors together with BMS system to disrupt charging and discharging paths when unsafe conditions occur, such as over-voltage, under-voltage, over-current, short circuit, over-temperature, under- temperature, etc.

3. Always use a BMS system provided by GBS together with GBS Li-ion batteries. If a non-GBS provided BMS is desired, buyer must send specifications of the BMS system to GBS for review and approval prior to installation.
