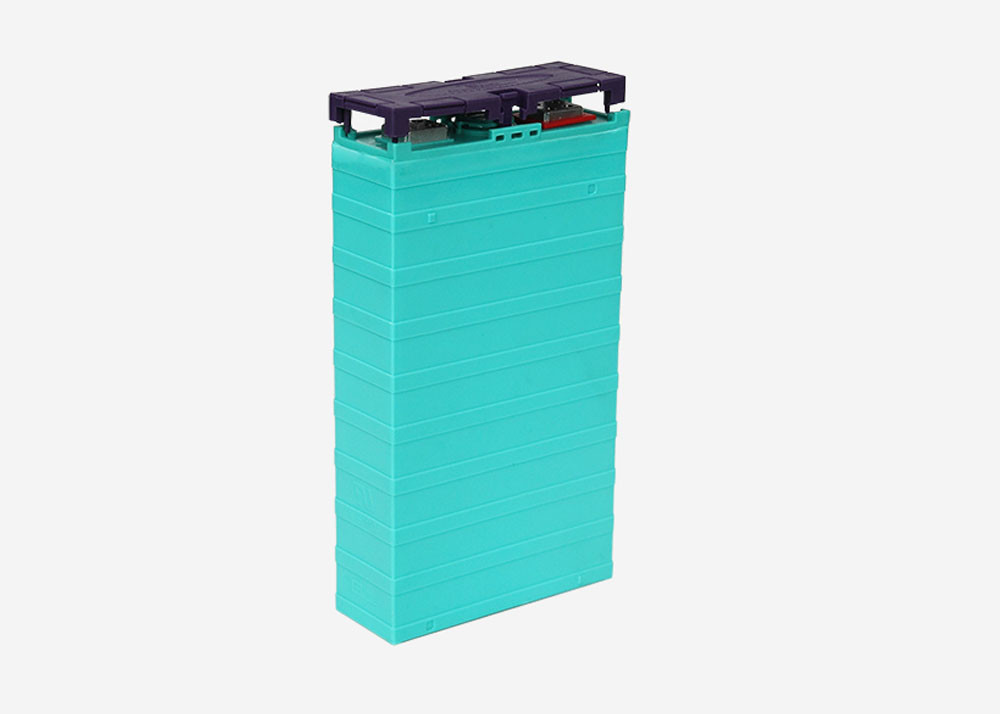

LiFePO4 Prismatic Lithium Electric Vehicle Battery 3.2v Good Shock Resistance

Minimum Order Quantity : 1PC Price : Negotiable
Packaging Details : Standard Packaging Delivery Time : 7 work days
Payment Terms : T/T
Place of Origin: Zhejiang, China Brand Name: GBS
Certification: CE,TUV,UL,IEC,ISO9001,ISO14001,OHSAS18001 Model Number: GBS-LFP100Ah-H

Detail Information

Material: LiFePO4 Dimension: 126x46x223mm
Warranty: 2 Years Application:: E-bike,electric Bicycle, Electric Scooter, Electric Trikes, Motorcycles, LEV, Motorscooters
Cycle Life: >2000 Times Voltage: 3.2v
High Light:

lithium ion battery for electric vehicles

,

lifepo4 ev battery pack

Product Description

LiFePO4 Prismatic Lithium Electric Vehicle Battery 3.2v Good Shock Resistance



Specifications



Good performance under high and low temperature;



Good safety performance;



Good cycle life time;



No pollution during manufacture.









Our characteristics:



Intelligent Production Line



Automatic Warehousing System



Clear Visual Management



Standardized Management Certifications



Research and Development Innovation



Research and Development Capability









Cell Dimension

LiFePO4 Prismatic Lithium Electric Vehicle Battery 3.2v Good Shock Resistance 0



Technical Data Sheet



LiFePO4 Prismatic Lithium Electric Vehicle Battery 3.2v Good Shock Resistance 1



Applications:

Electric vehicle
Golf cart
Electric motorcycle
Electric boat
Electric forklift
Telecommunication
Distributed Grid Energy Storage system
Mining equipment
Solar energy storage system
Marine
Backup power
Household energy storage system





Basic Performance

(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

(3) Good performance under low temperature.discharge capacity decreases to over 90% under 0°C and discharge capacity decreases to over 70% under -20°C.

(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

(6) It can fast charging. It could be charged to 80% within 0.5h and charged full with 2-3h.

(7) No pollution during manufacture and usage.





Requirement for safety assurance

For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
