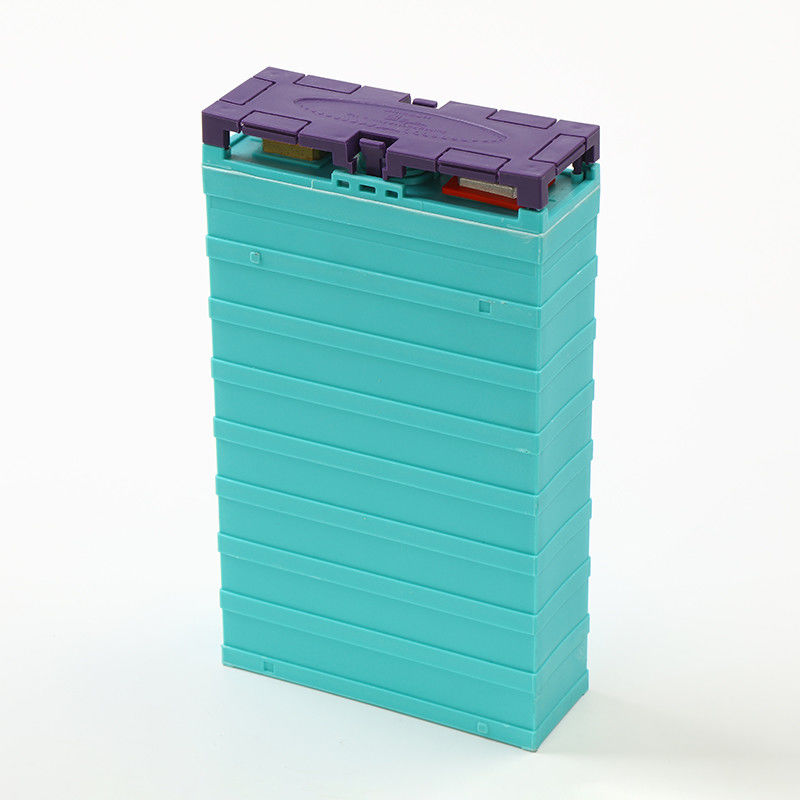

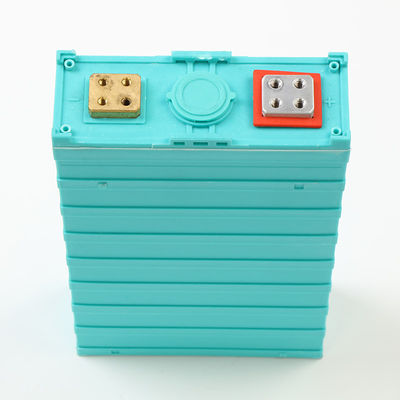

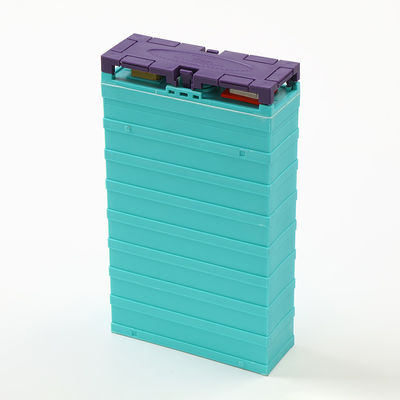

PP Shell 3.2V 80Ah Prismatic LFP Battery Cells For EV

PP Shell 3.2V 80Ah Prismatic LFP Battery Cells For EV

Product Details:

Place of Origin: CHINA
Brand Name: GBS
Certification: CE, IEC, UL, TUV, PONY, CCS, MA, TS16949, ISO9001, ISO14001, OHSAS18001
Model Number: GBS-LFP80AH-B

Payment & Shipping Terms:

Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: special cartion for dangerous goods
Delivery Time: 7 days
Payment Terms: D/P, L/C, D/A, T/T, Western Union
Supply Ability: 1800000pcs per year
Get Best Price Contact Now

Detail Information

Application: Electric Motorcycle,scooter, HEV, EV, Solar Energy, Teleom Warranty: 38 Months
Cycle Life: More Than 3000 Cycles Payment: TT,LC
High Light:

80Ah LFP Battery Cells

,

PP Shell LFP Battery Cells

,

EV LFP Prismatic Cells

Product Description

Lithium battery 3.2V 80Ah prismatic LFP battery cells for EV and energy storage



PP Shell 3.2V 80Ah Prismatic LFP Battery Cells For EV 0





Item

 Specification

Model

GBS-LFP80Ah-B

Terminal screw hole

4 holes

Rated capacity

80Ah

Nominal voltage

3.2V

Internal impedance

≤0.45

Standard charge current

20A

Fast charge current

80A

End of charge voltage

3.55V

Standard discharge current

40A

Max discharge current

240A

Instantaneous discharge current

800A ( 10s )

End of discharge voltage

2.5V

Working temperature

-20~65℃

Cycle life

3000 cycles  ( 0.5C )

Weight

2.0±0.1kg

Dimension

126×46×215±1mm

 Shell

PP






PP Shell 3.2V 80Ah Prismatic LFP Battery Cells For EV 1





Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).



(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



(7) Low cost.



(8) No pollution during manufacture and usage.







Matters needing attention



(1) Please check if spare parts are completed when open the package and read the operation manual carefully.



(2) Do not make the battery Short Circuit,do not over charge and discharge.



(3) Please charge the new battery to full capacity before discharge for the first use.



(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.



(5) Checking the voltage of battery, normally it is 12.8V-13.2V.



(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.



(7) Rivet or screw is used for battery connector.



(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.



(9) The charger used should be approved by our company in order to match with our lithium batteries.



(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.





PP Shell 3.2V 80Ah Prismatic LFP Battery Cells For EV 2

PP Shell 3.2V 80Ah Prismatic LFP Battery Cells For EV 3

PP Shell 3.2V 80Ah Prismatic LFP Battery Cells For EV 4



PP Shell 3.2V 80Ah Prismatic LFP Battery Cells For EV 5





1. When will you ship the products when paymnet is done?
Trial order is 3-7 work days,formal order 7-20 work days.



2. Is the sample available ?

Yes, but it is charged.



3. Can I get a lower price if I order large quantities?

Yes.



4. Are you a factory ?

Yes, we are the manufacturer of GBS LiFePO4 battery.



5. How you shipping the goods and how long it will take?

Normally by sea. Shipping time depends on destination port. But we can also make shipment by UPS and Fedex for trial order.



6. Why does it seem your price little higher than other factories?

We always supply High-Quality products & High-Stand service to our clients.
