Product Details
Place of Origin: CHINA
Brand Name: GBS
Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001
Model Number: GBS-LFP60Ah
Payment & Shipping Terms
Minimum Order Quantity: 1 PCS
Price: Negotiable
Packaging Details: special carton for dangerous goods
Delivery Time: 3-10 DAYS
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1800000PCS PER YEAR
Application: |
EV, Telecom, Solar Energy,motorcycle |
Weight: |
2.0kgs |
Warranty: |
38 Months |
Payment: |
TT,LC |
Life Cycle: |
More Than 3000 Cycles |
Type:: |
Lifepo4 |
Application: |
EV, Telecom, Solar Energy,motorcycle |
Weight: |
2.0kgs |
Warranty: |
38 Months |
Payment: |
TT,LC |
Life Cycle: |
More Than 3000 Cycles |
Type:: |
Lifepo4 |

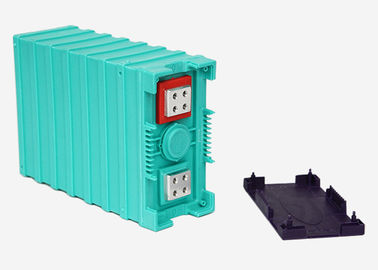

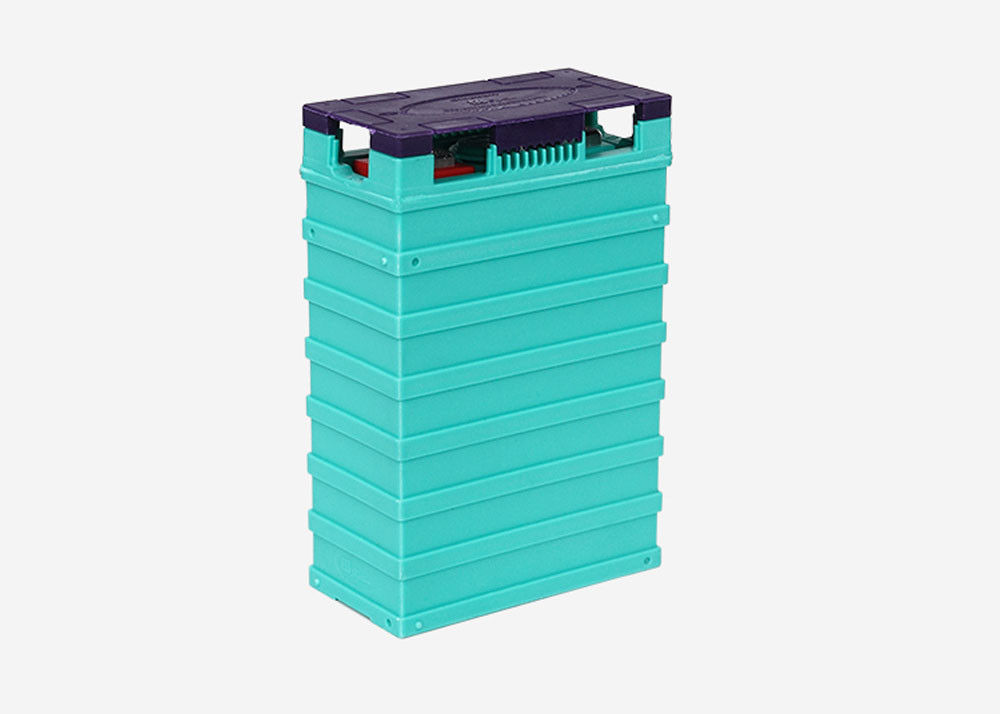

Lithium iron phosphate battery 60Ah approved by UL, CE, IEC, TUV, etc GBS-LFP60Ah
Features:
Long Cycle Life: Can be recharged for use for over 1,000 times. No memory effect.
High Safety: Assemble with Korea, Japan cells. High and stable performance & heat resistant. Top design and technology to prevent risk of explosion. The battery pack is impact-proof and can sustain heavy external shocks.
Reliable Quality:
For quality assurance, we use Japanese cell with new mixing formula "Li-ion" to assemble battery pack that guarantee our running distance and safe requirement are up-to standard.
OEM Welcome:
We can provide you with custom-made service for battery pack sample order and testing. Battery can fit for foldable bike, electric sport bike, electronic scooter and electric wheelchair.
| Item | Specification | Remark | ||
| Rated capacity | 60Ah | 0.2C rate discharge capacity | ||
| Minimum capacity | 60Ah | |||
| Internal impedance | ≤0.7mΩ | |||
| Nominal voltage | 3.2V | |||
| Cell weight | 2.0±0.1KG | |||
|
Standard discharge conditions |
Constant current | 30A | ||
| End-of-discharge voltage | 2.5V | |||
| Standard charge method | Constant current | 15A | ||
| Charge voltage | 3.55V | |||
| Fast charge method | Constant current | 60A | ||
| Charge voltage | 3.55V | |||
| Max continuous discharge current | 180A | |||
| Cycle life | 3000 cycles | 80% DOD | ||
| Operating temperature |
Charging ambient temperature |
0~65°C | ||
|
Discharging ambient temperature |
-20~65°C | |||
| Storage temperature | -20~65°C | |||
| Appearance |
Without break, distortion, contamination, leakage. |
|||
Basic Performance
(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.
(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.
(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.
(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.
(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).
(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.
(7) Low cost.
(8) No pollution during manufacture and usage.
Matters needing attention
(1) Please check if spare parts are completed when open the package and read the operation manual carefully.
(2) Do not make the battery Short Circuit,do not over charge and discharge.
(3) Please charge the new battery to full capacity before discharge for the first use.
(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.
(5) Checking the voltage of battery, normally it is 3.2V-3.3V.
(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.
(7) Rivet or screw is used for battery connector.
(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.
(9) The charger used should be approved by our company in order to match with our lithium batteries.
(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.
Requirement for safety assurance
For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
