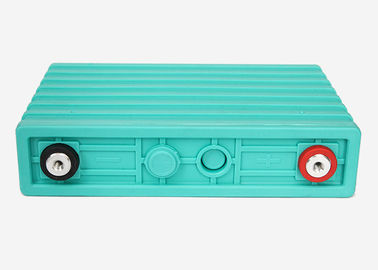

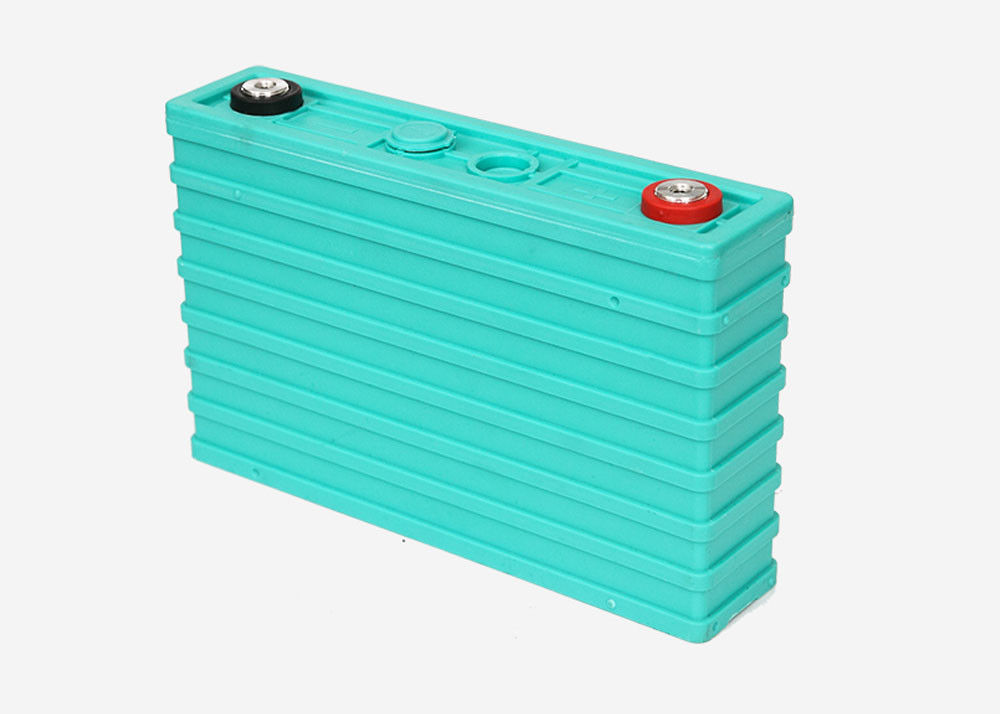

Solar Energy Storage Prismatic Lifepo4 Cells Lithium Ion Battery 160Ah 3.2V

Product Details

Place of Origin: CHINA

Brand Name: GBS

Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001

Model Number: GBS-LFP160Ah

Payment & Shipping Terms

Minimum Order Quantity: 1 PCS

Price: Negotiable

Packaging Details: special carton for dangerous goods

Delivery Time: 3-10 DAYS

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 1800000 PCS PER YEAR

Get Best Price
Contact Now
Specifications
High Light:

lithium iron phosphate cells

,

prismatic lithium ion battery

Application:
EV, Telecom, Solar Energy
Warranty:
38 Months
Life Cycle:
More Than 3000 Cycle
Payment:
TT,LC
Application::
Solar Lights , LED Lights
Nominal Capacity::
160Ah
Application:
EV, Telecom, Solar Energy
Warranty:
38 Months
Life Cycle:
More Than 3000 Cycle
Payment:
TT,LC
Application::
Solar Lights , LED Lights
Nominal Capacity::
160Ah
Description
Solar Energy Storage Prismatic Lifepo4 Cells Lithium Ion Battery 160Ah 3.2V

solar lithium batteries 160Ah 3.2V GBS-LFP160Ah









Item

Specification

Remark

 Rated capacity

160Ah

0.2C rate discharge capacity

 Minimum capacity

160Ah

 Internal impedance

≤0.6mΩ



 Nominal voltage

3.2V



 Cell weight

4.8±0.1KG



 Standard discharge

 conditions

 Constant current

80A



 End-of-discharge voltage

2.5V



 Standard charge method

 Constant current

40A



 Charge voltage

3.55V



 Fast charge method

 Constant current

160A



 Charge voltage

3.55V



 Max continuous discharge current

480A



 Cycle life

3000 cycles

80% DOD

 Operating temperature

 Charging ambient

 temperature

0~65°C



 Discharging ambient

 temperature

-20~65°C



 Storage temperature

-20~65°C



 Appearance

 Without break,

 distortion, contamination,

 leakage



Cell Size



Item   Description                 Dimensions

L         Length                      290mm

W         Width                       66mm

H         Height                      181mm




































Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



(5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).



(6)  It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



(7)  Low cost.



(8)  No pollution during manufacture and usage.











Matters needing attention



(1)  Please check if spare parts are completed when open the package and read the operation manual carefully.



(2)  Do not make the battery Short Circuit,do not over charge and discharge.



(3)  Please charge the new battery to full capacity before discharge for the first use.

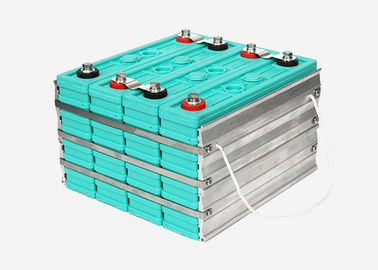

(4)  The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.



(5)  Checking the voltage of battery, normally it is 3.2V-3.3V.



(6)  Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.



(7)  Rivet or screw is used for battery connector.



(8)  Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.



(9)  The charger used should be approved by our company in order to match with our lithium batteries.



(10)  It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







Requirement for safety assurance



For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
