    40Ah 60Ah 100Ah Lithium Iron Phosphate Cells For EV / ESS / Telecom Use

    Product Details:

    Place of Origin: CHINA
    Brand Name: GBS
    Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001
    Model Number: GBS-LFP40Ah

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PCS
    Price: Negotiable
    Packaging Details: special carton for dangerous goods
    Delivery Time: 3-10 DAYS
    Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability: 1800000 PCS PER YEAR
    Get Best Price Contact Now

    Detail Information

    Application: EV, Telecom, Solar Energy,motorcycle Weight: 1.4kgs
    Warranty: 38 Months Payment: TT,LC
    Battery Type: LiFePO4 Feature: High Security, No Explosion And No Fire.
    High Light:

    lithium ion battery for electric vehicles

    ,

    lithium batteries for electric vehicles

    Product Description

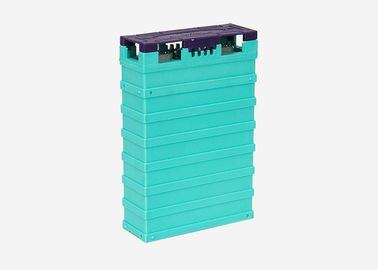

    40Ah 60Ah 100Ah Lithium Iron Phosphate Cells For EV / ESS / Telecom Use

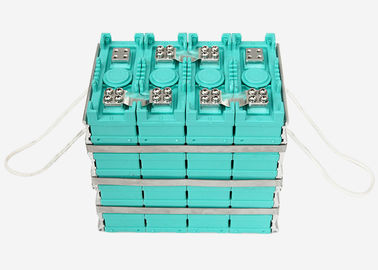

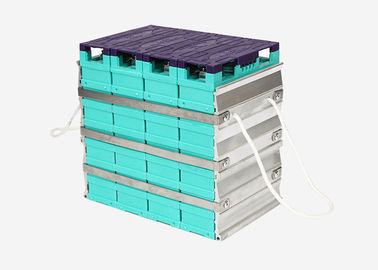

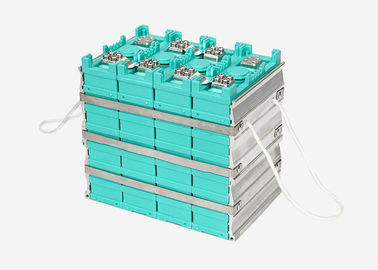

    40Ah/60Ah/100Ah golf cart battery/lithium battery cell pack for EV, ESS, Telecom GBS-LFP40Ah



    Competitive Advantage:

    1. Green product ,Pollution-free
    2. High energy density
    3. Long standby time
    4. One year warranty
    5. Excellent safety performance
    6. Excellent storage performance and low self-discharge rate
    7. Short circuit testing passed
    8. Overcharge testing passed
    9. Over discharge testing passed
    10. 150C thermal shock test passed
    11. Factory price& High quality
    12. Light weight, small size





    Item Specification Remark
    Rated capacity 40Ah 0.2C rate discharge capacity
    Minimum capacity 40Ah
    Internal impedance ≤0.8mΩ
    Nominal voltage 3.2V
    Cell weight 1.4±0.1KG

    Standard discharge

    conditions

    Constant current 20A
    End-of-discharge voltage 2.5V

    Standard charge

    method

    Constant current 10A
    Charge voltage 3.55V
    Fast charge method Constant current 40A
    Charge voltage 3.55V
    Max continuous discharge current 120A
    Cycle life 3000 cycles 80% DOD
    Operating temperature

    Charging ambient

    temperature

    0~65°C

    Discharging ambient

    temperature

    -20~65°C
    Storage temperature -20~65°C
    Appearance

    Without break,

    distortion, contamination,

    leakage.









    40Ah 60Ah 100Ah Lithium Iron Phosphate Cells For EV / ESS / Telecom Use 0







    Basic Performance

    (1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.

    (2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.

    (3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.

    (4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.

    (5) Good cycle life time, the discharge capacity is still over 80% after 3000 cycle times of single cell(80%DOD).

    (6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.

    (7) Low cost.

    (8) No pollution during manufacture and usage.





    Matters needing attention

    (1) Please check if spare parts are completed when open the package and read the operation manual carefully.

    (2) Do not make the battery Short Circuit,do not over charge and discharge.

    (3) Please charge the new battery to full capacity before discharge for the first use.

    (4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.

    (5) Checking the voltage of battery, normally it is 3.2V-3.3V.

    (6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.

    (7) Rivet or screw is used for battery connector.

    (8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.

    (9) The charger used should be approved by our company in order to match with our lithium batteries.

    (10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.



    Requirement for safety assurance

    For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
