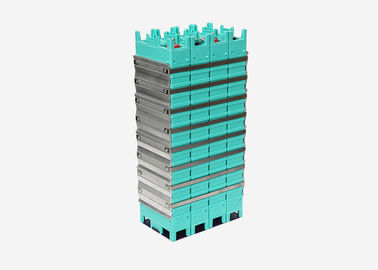

200Ah Lifepo4 Prismatic Battery For Electric Vehicles , Trucks , Buses , Boats

Minimum Order Quantity : 1 PCS Price : Negotiable
Packaging Details : special carton for dangerous goods Delivery Time : 3-10 DAYS
Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram Supply Ability : 1800000 PCS PER YEAR
Place of Origin: CHINA Brand Name: GBS
Certification: CE, UL, IEC, TUV,PONY,MA,ISO9001, ISO14001, OHSAS18001 Model Number: GBS-LFP200Ah-A

Detail Information

Application: EV, Telecom, Solar Energy,motorcycle Warranty: 38 Months
Life Cycle: More Than 2000 Cycles Capacity: 200Ah
Battery Type: Lifepo4
High Light:

lithium ion battery for electric vehicles

,

lifepo4 ev battery pack

Product Description

Good performance under high and low temperature;Good safety performance;Good cycle life time;No pollution during manufacture.



Feature:

  1. Long life, large capacity and good shock resistance
  2. Low self-discharge and good discharge performance at low temperature
  3. Strong charging acceptance and quick-charging capability
  4. Strong over-discharge resistance and charge retention

Item Specification Remark
Rated capacity 200Ah 0.2C rate discharge capacity
Minimum capacity 200Ah
Internal impedance ≤3.2mΩ
Nominal voltage 12V
Cell weight 22kg±150g

Standard discharge

conditions

Constant current 100A
End-of-discharge voltage 11.2V
Standard charge method Constant current 50A
Charge voltage 14.2V
Fast charge method Constant current 200A
Charge voltage 14.2V
Max continuous discharge current 600A
Cycle life 2000 cycles 80% DOD
Operating temperature

Charging ambient

temperature

0~65°C

Discharging ambient

temperature

-20~65°C
Storage temperature -20~65°C
Appearance

Without break,

distortion, contamination,

leakage.







Item Description Dimensions

L Length 244mm

W Width 142mm

H Height 485mm

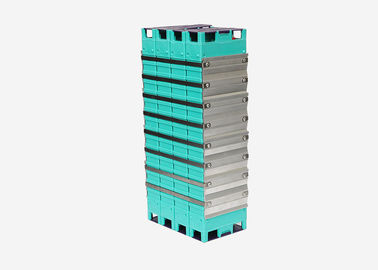

200Ah Lifepo4 Prismatic Battery For Electric Vehicles , Trucks , Buses , Boats 0





Basic Performance



(1) Output with high efficiency: Standard discharge current is 0.3C-0.8C, instant impulse discharge current is 10C for 10 seconds.



(2) Good performance under high temperature, it could work under 65°C temperature.The battery structure is safe and good.



(3) Good performance under low temperature.discharge capacity decreases to over 78% under 0°C and discharge capacity decreases to over 70% under -20°C.



(4) Good safety performance:When the pressure inside the battery is too large, the one-way safety valve will release gas and heat to make sure battery perform well. When the internal pressure reaches a certain level, the valve will be open immediately which can protect the battery from burning and explosion.



(5) Good cycle life time, the discharge capacity is still over 80% after 2000 cycle times of single cell(80%DOD).



(6) It can fast charging. It could be charged to 80% within 20 minutes and charged full with 2-3h.



(7) Low cost.



(8) No pollution during manufacture and usage.











Matters needing attention



(1) Please check if spare parts are completed when open the package and read the operation manual carefully.



(2) Do not make the battery Short Circuit,do not over charge and discharge.



(3) Please charge the new battery to full capacity before discharge for the first use.



(4) The battery pack is fixed with plate and strip before delivery, do not disassemble the plate and strip when using the battery.



(5) Checking the voltage of battery, normally it is 12.8V-13.2V.



(6) Fix BMS for battery pack and protect single cell to avoid over charge and over-discharge.



(7) Rivet or screw is used for battery connector.



(8) Please use copper part to connect battery packs and fix with hydraulic pressure plier. We could also provide the relevantconnection which fixed with screws.



(9) The charger used should be approved by our company in order to match with our lithium batteries.



(10) It will shorten battery cycle lifetime and damage battery due to overcharge and over-discharge if not do according to the above . It won’t be within our company warranty.







Requirement for safety assurance



For the sake of safety assurance, please discuss the equipment design, its system and protection circuit of Lithium-ion cell advance. And consult about the high rate current, rapid charge and special application in the same way.
